UniFi Wi-Fi 7 BE9300 Access Point

The access point is designed to operate under the control of the UniFi system; it requires an appropriate controller and does not feature a stand-alone mode. It can broadcast a Wi-Fi 7 wireless network in two frequency bands, utilizing a total of three transmissions. It supports IEEE 802.11 b/g/n/ax/be protocols on the 2.4 GHz band and IEEE 802.11 a/n/ac/ax/be on the 5 GHz band, with two concurrent transmissions in the 5 GHz range. The maximum theoretical throughput is 688 Mbps on 2.4 GHz and 8.6 Gbps on 5 GHz.

The device supports a total of 10 MIMO streams — two in the 2.4 GHz band and eight in the 5 GHz band (two 4x4 transmissions). This enables it to handle up to 1000 users simultaneously.

Enterprise Series

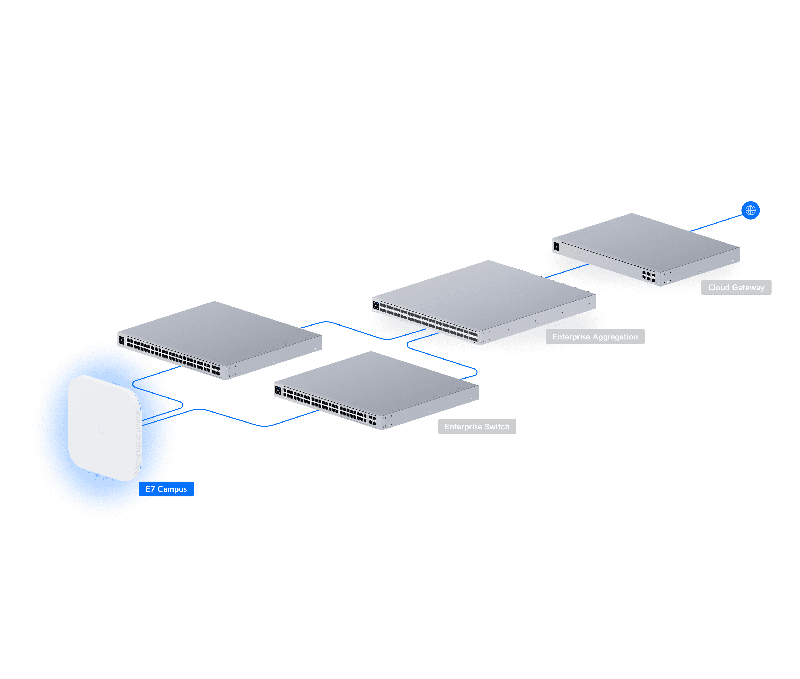

The access point belongs to the Enterprise product line, which offers higher performance compared to standard UniFi solutions. Thanks to the use of up to 10 MIMO streams and multiple operating bands, it can achieve very high throughput and handle many users simultaneously (up to 1000). The inclusion of two ports allows you to configure the entire network in failover mode — with the proper setup, you can protect against failures of switches, gateways, or controllers.

Theoretical Coverage: 465 m², Directional Antennas

The E7-Campus is equipped with an integrated directional antenna, providing excellent transmission range. The antenna gain is 9 dBi at 2.4 GHz and 12 dBi at 5 GHz. According to the manufacturer’s data, this allows for coverage of an area up to 465 m². It is important to mount the access point at an appropriate height and aim it precisely at the area intended to be covered by the wireless network. The actual range depends on many factors, including interference from other transmissions and physical obstacles. For example, coverage in a city center (where numerous other networks may be present) or in a park (where trees and lamp posts can obstruct the signal) may be significantly lower than the declared value.

10G Ethernet Port, 1G Ethernet Port, PoE++ Power

The device is equipped with one 10G Ethernet port and one 1G Ethernet port, both supporting PoE++ (802.3bt) power input. The 10G Ethernet port serves as the primary connection, while the second port can be used as a backup — the device will automatically switch to it in case of issues with the main transmission. The maximum power consumption is 44 W.

For Outdoor Use, Wall or Pole Mounting

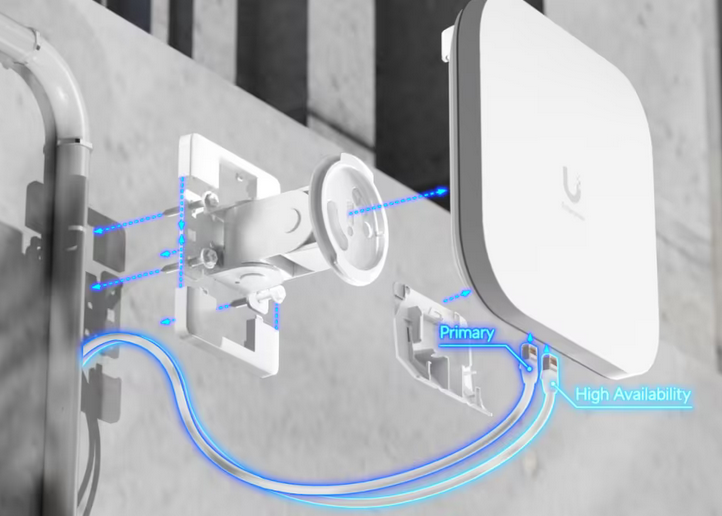

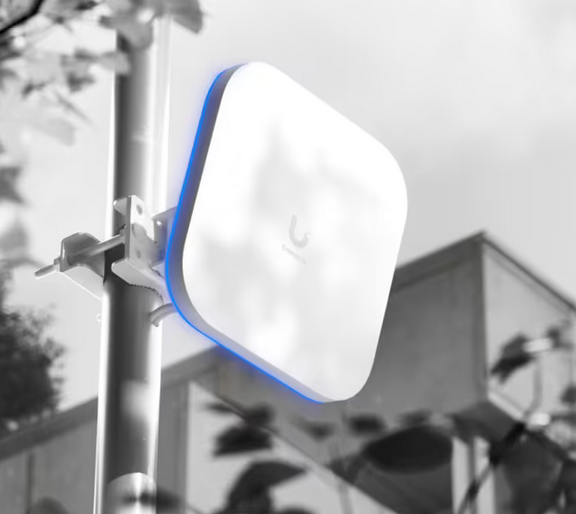

The product features an enclosure designed for outdoor installation. When properly mounted using the included gaskets, it achieves an IP67 protection rating, and the enclosure is made from UV-resistant materials. Using the included accessories, the device can be mounted on a wall or a pole.

Use Case

The E7-Campus is an Enterprise series device designed for use in the most demanding environments. Its design makes it ideal for creating outdoor wireless networks or operating in challenging conditions, such as areas with high dust levels. The high-gain directional antenna significantly improves transmission range when mounted at a considerable height. The device is suitable for various campus networks as well as industrial or warehouse facilities. Additionally, its ability to support many users simultaneously makes the E7-Campus well-suited for high-traffic areas, such as busy parking lots.
