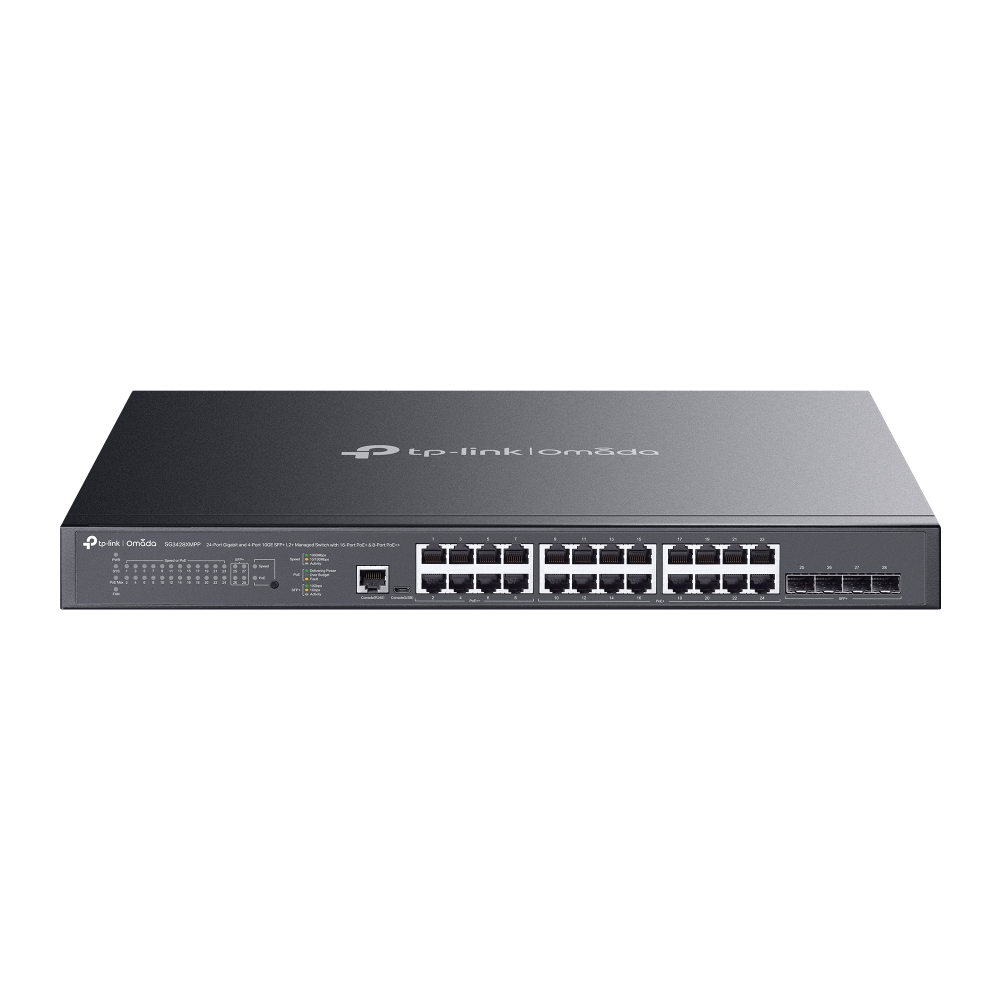

TP-Link SG3428XMPP Omada switch L2+ 4x 10GE SFP+ 16x PoE+, 8x PoE++

TP-Link SG3428XMPP Omada switch L2+ 4x 10GE SFP+ 16x PoE+, 8x PoE++

Produttore: TP-Link

Codice prodotto: TL-SG3428XMPP

Numero di catalogo: 10879

Garanzia (mesi):

Prezzo

574,82 €

707,03 € IVA inclusa

favoriteLista dei desideri

Descrizione

The SG3428XMPP is an L2+ managed switch integrated into the Omada SDN system, equipped with 16 Gigabit RJ45 ports supporting the PoE+ standard and 8 Gigabit RJ45 ports supporting the high-power PoE++ standard. The device features 4 SFP+ 10 Gbps slots dedicated to high-speed core connections and link aggregation, eliminating data transmission bottlenecks. The switch supports L3 static routing functions and advanced security mechanisms such as Access Control Lists (ACL) and IP-MAC-Port-VID binding, ensuring secure network segmentation. The 19-inch Rack standard design allows for installation in server cabinets, and administration is handled centrally via the Omada SDN platform or locally through the CLI interface and SNMP protocol.

High-Power Device Support via Gigabit PoE++ Ports

SDN (Software Defined Networking) Platform and Cloud Access

Remotely manage your Access Points, Switches, and Gateways across multiple locations from a single, unified interface.

Versatile Applications

Specification

Hardware Features
TP-Link SG3428XMPP
Ports	24x 10/100/1000 Mbps RJ45 Ports (8 PoE++, 16 PoE+) 4x 10G SFP+ Slots 1x RJ45 Console Port 1x microUSB Console Port
Fan Quantity	3
Physical Security Lock	Yes
Power Supply	100-240 V AC ~ 50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/af/bt compliant PoE++ Ports: 1–8, up to 90 W per port PoE+ Ports: 9–24, up to 30 W per port Total PoE Power Budget: 500 W*
Dimensions (W x D x H)	440 × 330 × 44 mm (17.3 × 13.0 × 1.7 inches)
Mounting	Rack Mountable
Max Power Consumption	605.5W (110V / 60Hz) (with 500W PoE devices connected)
Max Heat Dissipation	2064.96 BTU/hr (110V / 60 Hz) (with 500W PoE devices connected)
Performance
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer	12 Mb
Jumbo Frame	9 KB
Software Features
Quality of Service	8 priority queues 802.1p CoS/DSCP priority support Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Bandwidth Control: Port/Flow based Rating Limiting Smoother Performance Flow Actions: QoS Remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	128 IP Interfaces: IPv4/IPv6 support Static Routing: 48 IPv4/IPv6 static routes Static ARP: 128 static entries 512 ARP entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol (STP) Loopback Detection 802.3x Flow Control Mirroring
L2 Multicast	Supports 1000 IGMP groups (IPv4, IPv6) IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	Automatic Device Discovery^† Batch Configuration^† Batch Firmware Upgrading^† Intelligent Network Monitoring^† Abnormal Event Alerts^† Unified Configuration Process^† Reboot Schedule^† ISP Features: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM sFlow
VLAN	VLAN Groups: Max 4K VLAN groups 802.1q VLAN Tagging MAC VLAN: 30 entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN
Access Control Lists	Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, TOS DSCP/IP Combined ACL Packet Content ACL IPv6 ACL Policy Actions: Mirroring, Rate Limit, Redirect, QoS Remark ACL applied to Port/VLAN
Network Security	• IP-MAC-Port Binding - 512 entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 entries • IPv6-MAC-Port Binding - 512 entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: control mode (kbps/ratio/pps) • 802.1X Authentication - Port-based authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius Authentication and Authorization • AAA (including TACACS+) • Port Isolation • Secure Web management via HTTPS with SSLv3/TLS 1.2 encryption • Secure CLI management with SSHv1/SSHv2 encryption • IP/Port/MAC based Access Control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 Neighbor Discovery (ND) Path Maximum Transmission Unit (MTU) Discovery ICMP v6 TCP v6/UDP v6 IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), SNMP IPv6, SSH IPv6, SSL IPv6, HTTP/HTTPS, TFTP IPv6
MIB	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Supports TP-Link private MIBs
Management
Omada App	Yes. Requires use of Omada Hardware Controller, Cloud-Based Controller, or Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requires use of Omada Hardware Controller, Cloud-Based Controller, or Software Controller.
Zero-Touch Provisioning (ZTP)	Yes. Requires use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) via console port, Telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (groups 1, 2, 3, 9) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
Others
Package Contents	SG3428XMPP Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7, 8, 10, 11 MAC® OS NetWare® UNIX® Linux
Environment	Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90%, non-condensing Storage Humidity: 5%~90%, non-condensing
