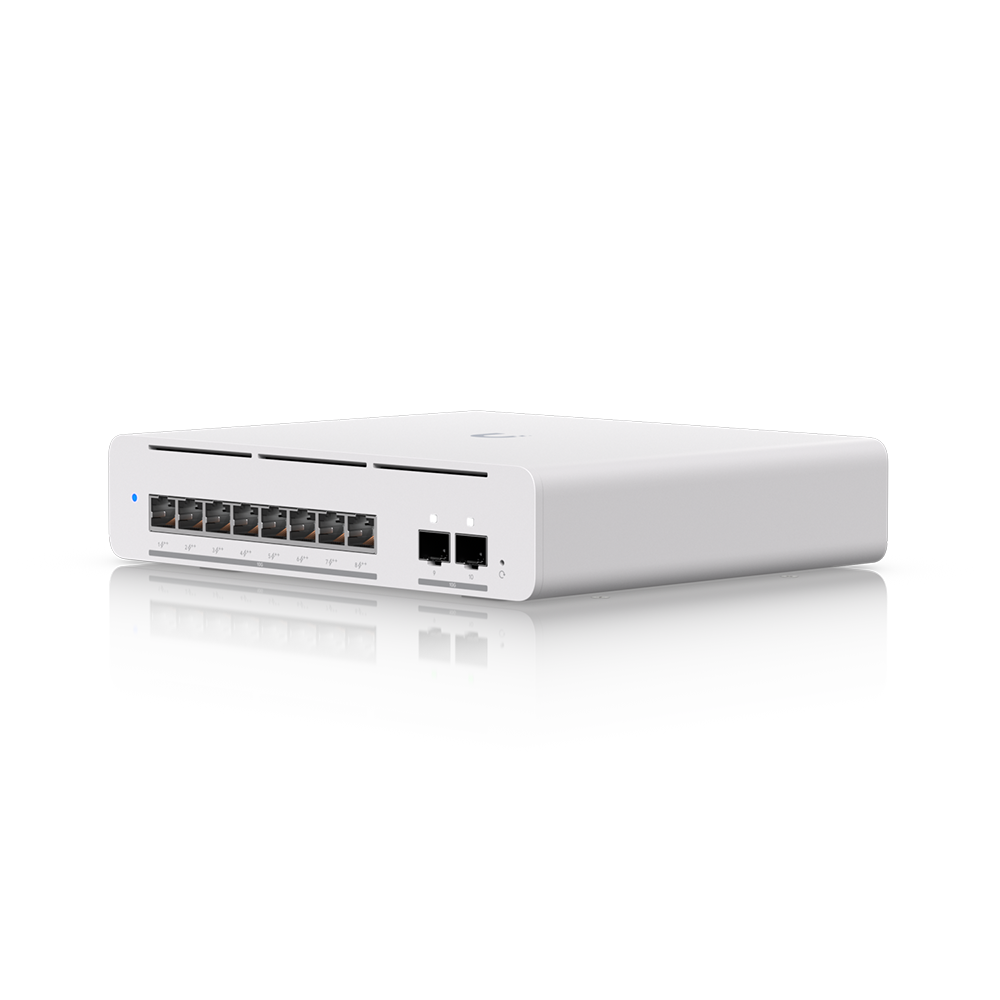

Ubiquiti Pro XG 8 PoE is a managed switch designed to operate under the UniFi system. Despite its compact size, it offers high throughput and is equipped with 8 x 10G Ethernet ports and 2 x SFP+ (10 Gbps) slots. Each Ethernet port supports PoE++ output, with maximum power depending on the standard: 15.4 W with PoE (802.3af), 30 W with PoE+ (802.3at), or 60 W with PoE++ (802.3bt Type 3). The total PoE power budget is 155 W, which is sufficient to connect up to 7 U7 Pro access points. The Pro XG 8 PoE supports the Etherlighting feature (port illumination using compatible patch cords) as well as selected Layer 3 management functions—DHCP server, DHCP relay, Inter-VLAN routing, and static routing. This product is an excellent choice as an access switch in smaller networks utilizing Wi-Fi 7 access points. Its high-bandwidth ports allow you to fully leverage the capabilities of the latest Wi-Fi generation, while the high-power PoE support enables the connection of multiple UniFi APs. The switch comes with a 210 W external power supply, which is included in the package.

UniFi L3 Switch

The offered product is a managed switch designed to operate under the UniFi system. It supports a selection of Layer 3 functions, including a DHCP server, DHCP relay, Inter-VLAN routing, and static routing. Additionally, the switch supports most standard Layer 2 features—a complete list is available in the specifications below. Due to the lack of standalone mode support, the device is best suited for networks built on UniFi solutions.

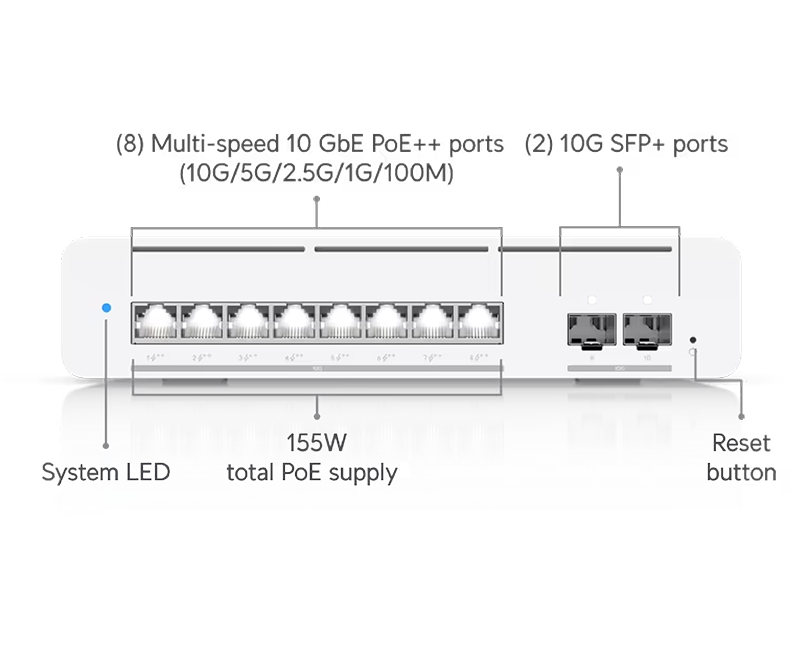

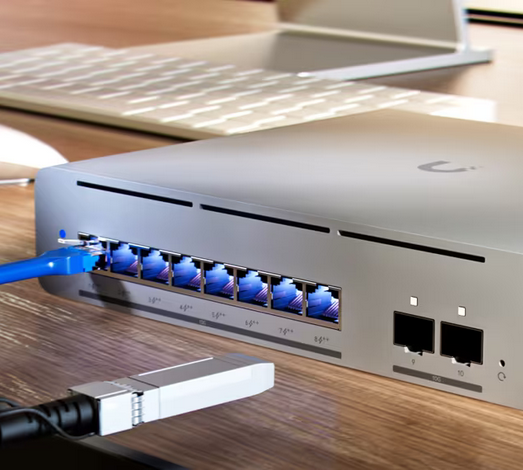

8 x 10G Ethernet Ports, 2 x SFP+ Slots (10 Gbps)

The device is equipped with 8 x 10G Ethernet ports and 2 x SFP+ (10 Gbps) slots. All Ethernet ports support automatic speed negotiation and are backward compatible down to 100 Mbps. The switch features a high switching capacity of 200 Gbps and a packet forwarding rate of 149 Mpps. This product is ideal for use in networks with infrastructure based on 2.5 Gbps or even 10 Gbps speeds.

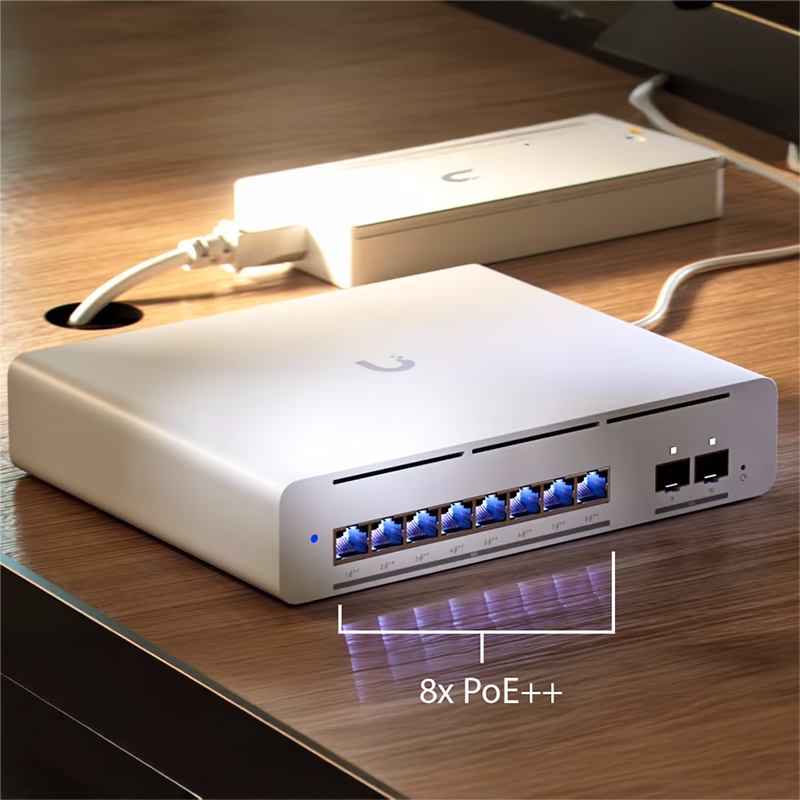

8 PoE++ Ports, 155 W Power Budget

Each Ethernet port provides PoE++ power output. The maximum output per port depends on the standard: 15.4 W with PoE (802.3af), 30 W with PoE+ (802.3at), or 60 W with PoE++ (802.3bt Type 3). The total power output budget is 155 W across all ports. This switch delivers sufficient power to support multiple Wi-Fi 7 access points efficiently.

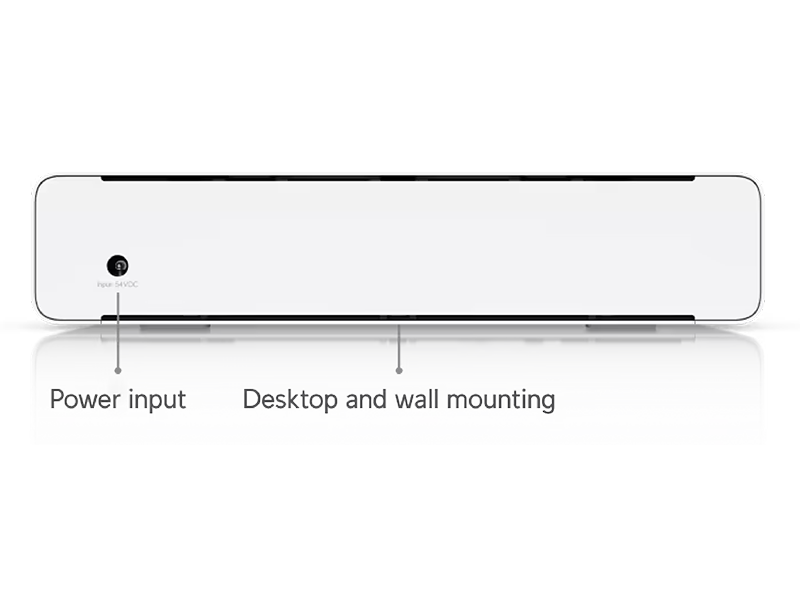

Desktop Enclosure

The switch features a compact desktop-style enclosure with external dimensions of 210.4 x 173.8 x 43.7 mm. By default, the device can be placed on a desk or shelf, but the package also includes a mounting bracket for optional wall installation. It is powered by an external 210 W power supply, which is also included in the package.

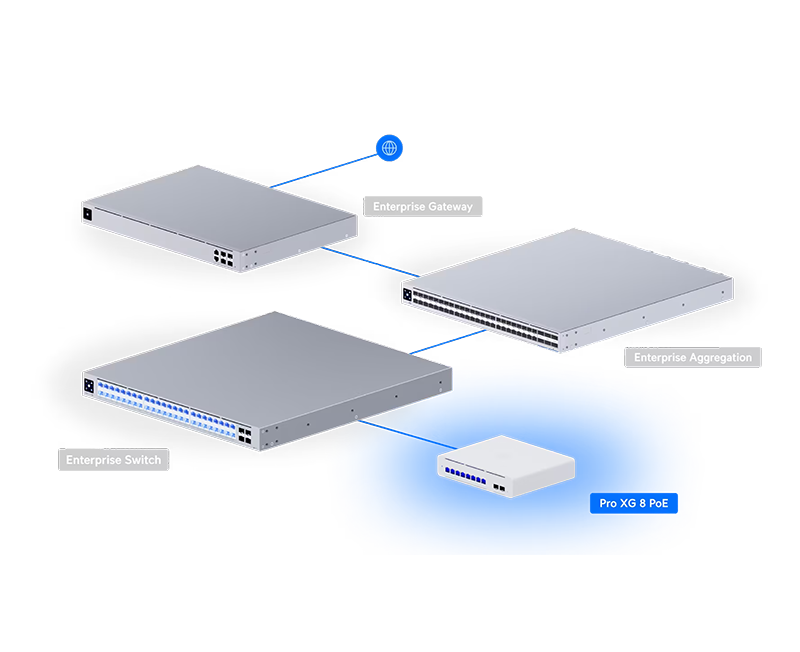

Use Case

The offered product is ideal as an access switch in small networks utilizing Wi-Fi 7 access points or other devices equipped with 10G Ethernet interfaces. It provides ample power output and high throughput while maintaining a reasonable price point. An additional advantage is its extended management capabilities, which go beyond those of standard UniFi switches.
