Ubiquiti Gate Hub for UniFi Access

Ubiquiti Gate Hub for UniFi Access

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UA-HUB-GATE

Numero di catalogo: 10564

Garanzia (mesi):

Prezzo

219,27 €

269,70 € IVA inclusa

favoriteLista dei desideri

Descrizione

Ubiquiti Hub Gate is a hub designed for use in the UniFi Access system, allowing you to control the status of a gate and side doors, or two gates. To function, it requires appropriate readers and, optionally, cameras. When combined with LRP cameras (the list can be found in the specifications), the device can automatically open the gate after recognizing a stored vehicle license plate. There are many installation and operation options for the entire system, which are thoroughly described by the manufacturer in the installation manual. The device is equipped with 5 gigabit Ethernet ports: the first provides a PoE++ (802.3bt) power input, while the other four provide PoE (802.3af) power outputs. You can connect compatible readers, an intercom, or IP cameras to the hub. The enclosure is designed for DIN rail mounting, and the set includes mounting plugs that allow you to attach the rail to a wall if you do not wish to use an enclosure.

Hub with gate and side door support, for the UniFi Access system

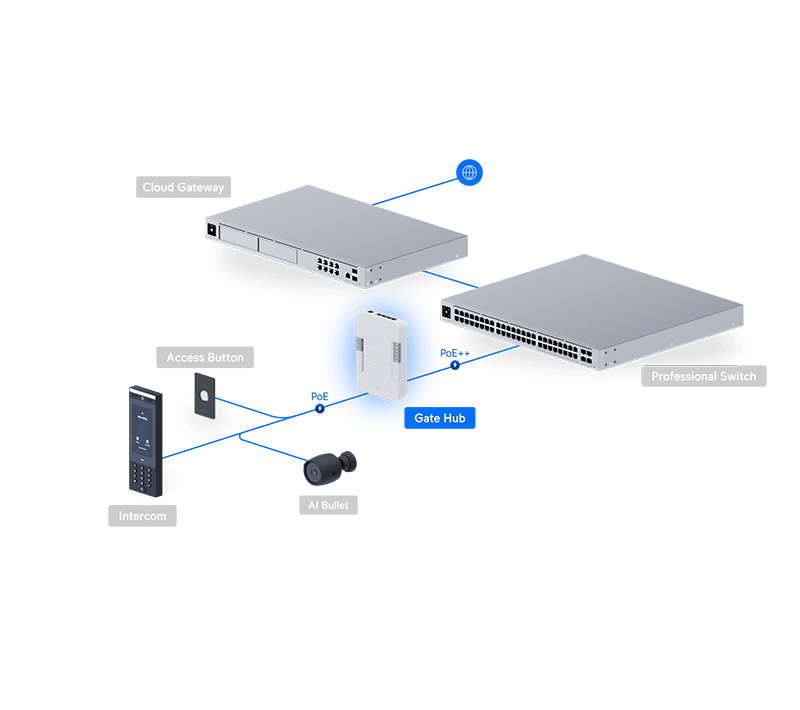

The offered product is a hub designed for use within the UniFi Access system, without the ability to operate in stand-alone mode. The device is primarily intended to control the opening status of a gate and side doors/pedestrian gates. In the case of a double-wing gate, you can connect both wings, but without the option to connect a pedestrian gate. The hub connects directly to the electronics provided by the manufacturer of the gate itself, with wiring diagrams available in the manufacturer's manual. The basic setup designed by the manufacturer assumes that you connect cameras with LPR functionality (the list can be found in the specifications) and a compatible intercom to the hub. An LPR-enabled camera can read license plates and automatically open the gate for vehicles with stored numbers. Other users can make use of the intercom.

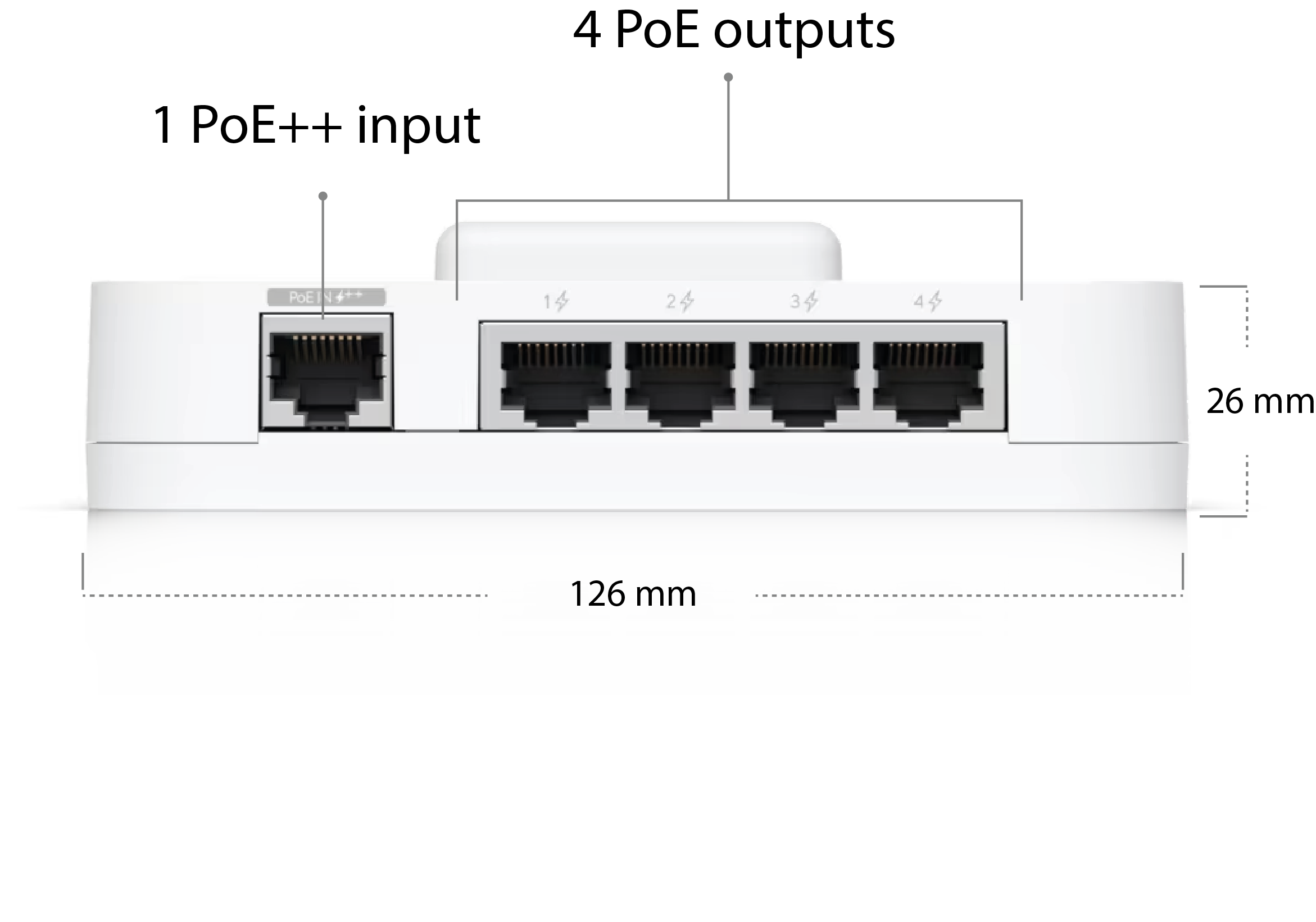

5 × 1G Ethernet ports, 1 PoE++ input, 4 PoE outputs

The device uses 5 gigabit Ethernet ports (10/100/1000 Mbps) for communication. The first port serves as a PoE++ (802.3bt) power input. The remaining 4 ports provide PoE (802.3af) outputs, allowing you to connect (and simultaneously power) an intercom and cameras. The maximum power per port is 30 W, with a total power budget (across all ports) of 55 W.

Application

The Gate Hub allows you to control and automatically open a gate. Its primary applications include controlling a sliding gate at a property entrance, managing a dual-direction lift gate at parking lots, and operating a garage door. In most cases (except with a dual-direction lift gate), you can also connect side doors or a pedestrian gate. The installation should include an intercom and IP cameras with LPR functionality. Once properly configured, the cameras can read license plates of approaching vehicles and automatically open the gate. With an external intercom connected, visitors can call and request access. The compatible UA-Intercom (sold separately) also supports unlocking via PIN code, mobile app, or NFC cards.

Specifications

Overview
Ubiquiti UA-Hub-Gate
Dimensions	175 x 126 x 26 mm (6.9 x 5 x 1")
UniFi Application Suite	UniFi Access
Supported Doors	1 gate, 1 side door

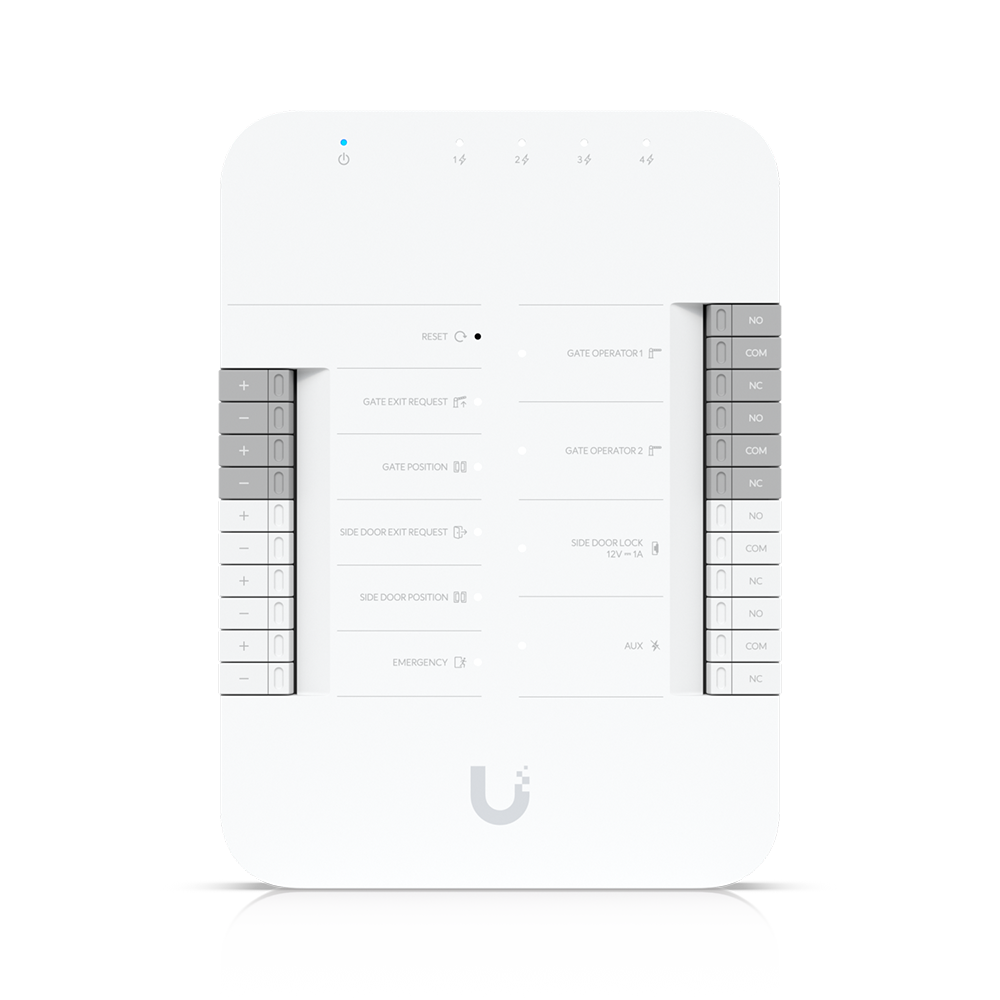

Input Terminals	(1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency
Power Method	PoE++ (802.3bt)
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Optional LPR Cameras	UVC-AI-Turret UVC-AI-LPR UVC-AI-Dome UVC-AI-DSLR UVC-AI-Pro UVC-AI-Theta UVC-G6-Turret UVC-G6-Bullet UVC-G6-INS UVC-AI-PTZ UVC-G6-PTZ UVC-AI-PTZ-Precision
Mechanical
Weight	460 g (1 lb)
Enclosure Material	Polycarbonate
Mounting	DIN-rail (Included)
Hardware
Digital Input	Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay	(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
Powered Output Relay	Side door lock: 12V DC, up to 1A
Indoor and Outdoor Use	Indoor only: device itself Outdoor: with waterproof junction box
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated)
Max. Power Consumption	22W (Without PoE output) 60W (With PoE output)
LEDs	W / B
Buttons	(1) Factory-reset
Recommend Max. Cable Length	UA-Lock-Electric (400 mA) 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500 mA) 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) UA-Lock-Magnetic-270kg (800 mA) 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Grade assignment: I 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
Software
Management Application	UniFi Access
