Ubiquiti PoE Over 2-Wire Retrofit Extender
Produttore: Ubiquiti Networks
Codice prodotto: UQ-UACC-RETRO-POE-2W
Numero di catalogo: 10571
Garanzia (mesi):
Prezzo
78,73
96,84IVA inclusa
Non disponibile
favoriteLista dei desideri
Descrizione

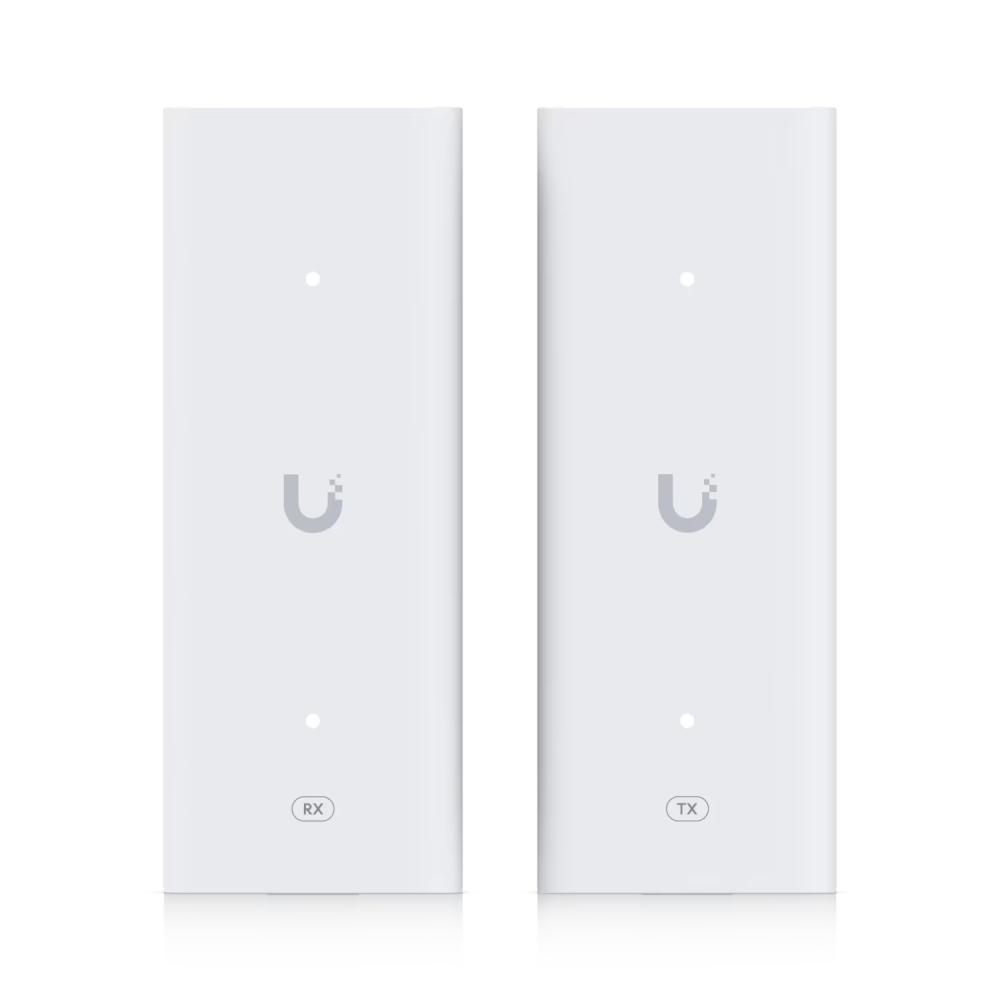

Ethernet to Coaxial / Two-Wire Converter with PoE Support

The offered product is a device for converting Ethernet transmission to a coaxial or two-wire cable. Additionally, it supports PoE, allowing you to transfer not only data but also power. On the input side, it supports PoE++ (802.3 af/at/bt), while on the output side it provides PoE+ (802.3 af/at). The maximum output power is 25 W, and the device’s own power consumption is 3 W. The transmission distance, bandwidth, and output power largely depend on the quality of the cables used; approximate values can be found in the specification below.

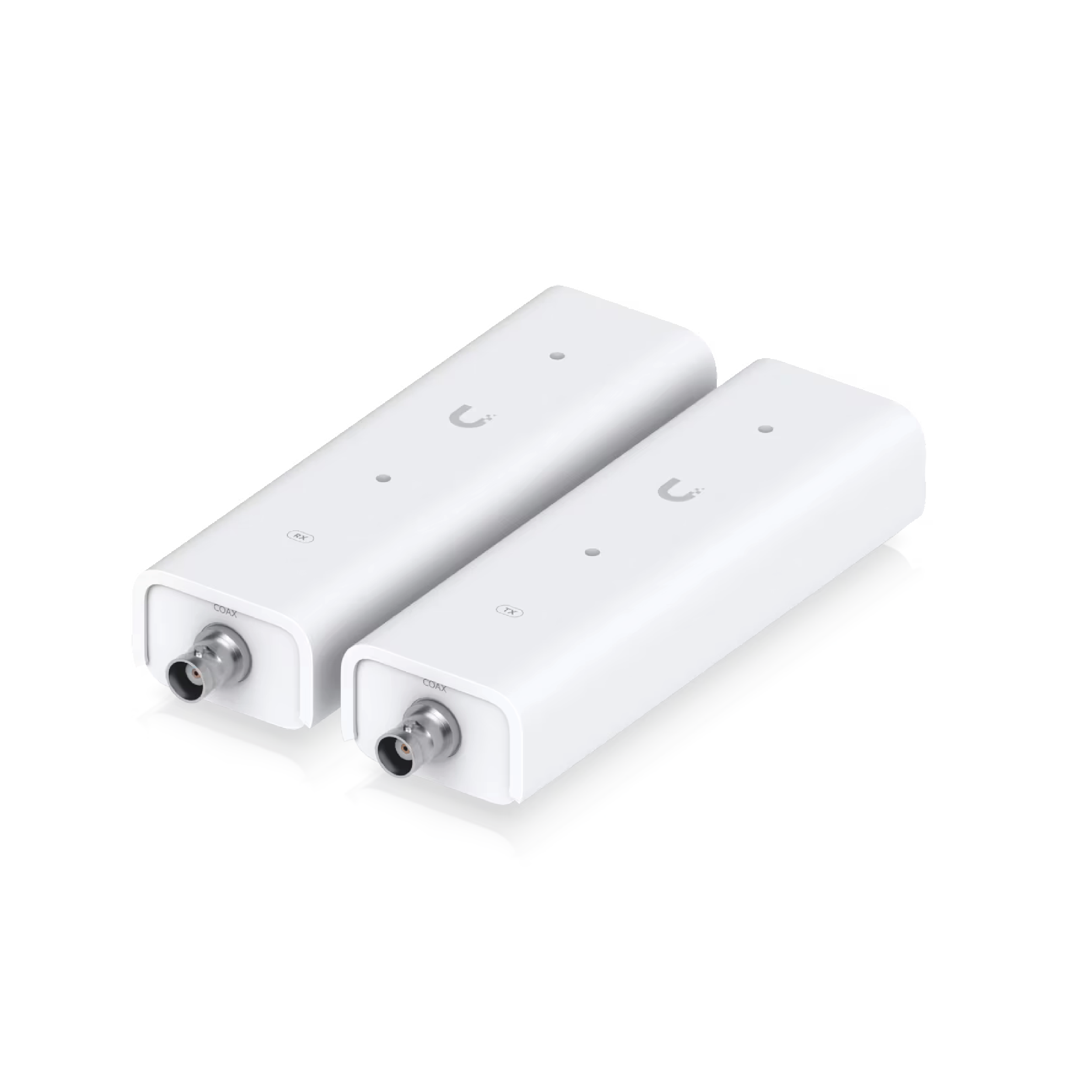

The converters feature connectors at the bottom designed for two-wire cable connections, and the set includes appropriate BNC adapters for connecting coaxial cables.

Specyfications

Ubiquiti UACC-Retrofit-PoE-2Wire
Mechanical Properties
Dimensions

PoE input/output: 40 × 105 × 25 mm (1.6 × 4.1 × 1")

Adapter: 43.5 × 138 × 30 mm (1.7 × 5.4 × 1.2")

Weight

PoE input: 77 g (2.7 oz)

PoE output: 79 g (2.8 oz)

Adapter: 140 g (4.9 oz)

Enclosure material Polycarbonate
Bracket material Polycarbonate
Coaxial connector Female BNC
Hardware Properties
Network interface

1 × Fast Ethernet port (10/100 Mbps)

1 × HomePlug AV connector

Power supply: PoE++ (802.3 af/at/bt)
PoE input PoE++ (802.3 af/at/bt), 50 V DC, 1.2 A
PoE output PoE+ (802.3 af/at), 48 V DC, 0,6 A
Maximum power consumption 3 W (device only – without PoE output)
ESD/EMP protection (electrostatic discharge / electromagnetic pulse)

Air discharge: ± 8 kV

Contact discharge: ± 4 kV

Recommended Cable Lengths

UTP 24AWG (0.18 Ω/m)

50 m: 85 Mbps, 25 W

100 m: 85 Mbps, 13 W

150 m: 85 Mbps, 9 W

200 m: 85 Mbps, 6 W

250 m: 80 Mbps, 4 W

300 m: 75 Mbps, 3 W

350 m: 70 Mbps, 0 W

400 m: 65 Mbps, 0 W

450 m: 60 Mbps, 0 W

500 m: 55 Mbps, 0 W

550 m: 50 Mbps, 0 W

600–750 m: —


RG-6 coaxial cable (0.15 Ω/m)

50 m: 85 Mbps, 25 W

100 m: 85 Mbps, 20 W

150 m: 85 Mbps, 13 W

200 m: 85 Mbps, 9 W

250 m: 85 Mbps, 7 W

300 m: 85 Mbps, 6 W

350 m: 85 Mbps, 4 W

400 m: 82 Mbps, 3 W

450 m: 80 Mbps, 0 W

500 m: 75 Mbps, 0 W

550 m: 70 Mbps, 0 W

600 m: 65 Mbps, 0 W

650 m: 60 Mbps, 0 W

700 m: 55 Mbps, 0 W

750 m: 50 Mbps, 0 W

LED indicators White
Operating temperature -10°C do 40°C
Operating humidity 5%–90% non-condensing
