Ubiquiti Door Closer
Produttore: Ubiquiti Networks
Codice prodotto: UQ-UACC-DOORCLOSER
Numero di catalogo: 10572
Garanzia (mesi):
Prezzo
105,35
129,58IVA inclusa
Non disponibile
favoriteLista dei desideri
Descrizione

Door Closer

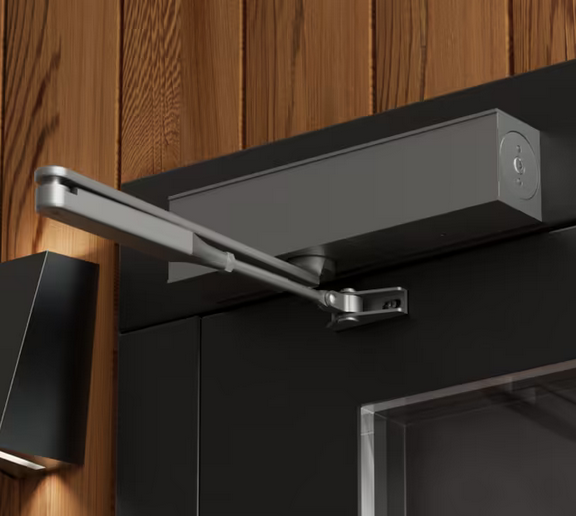

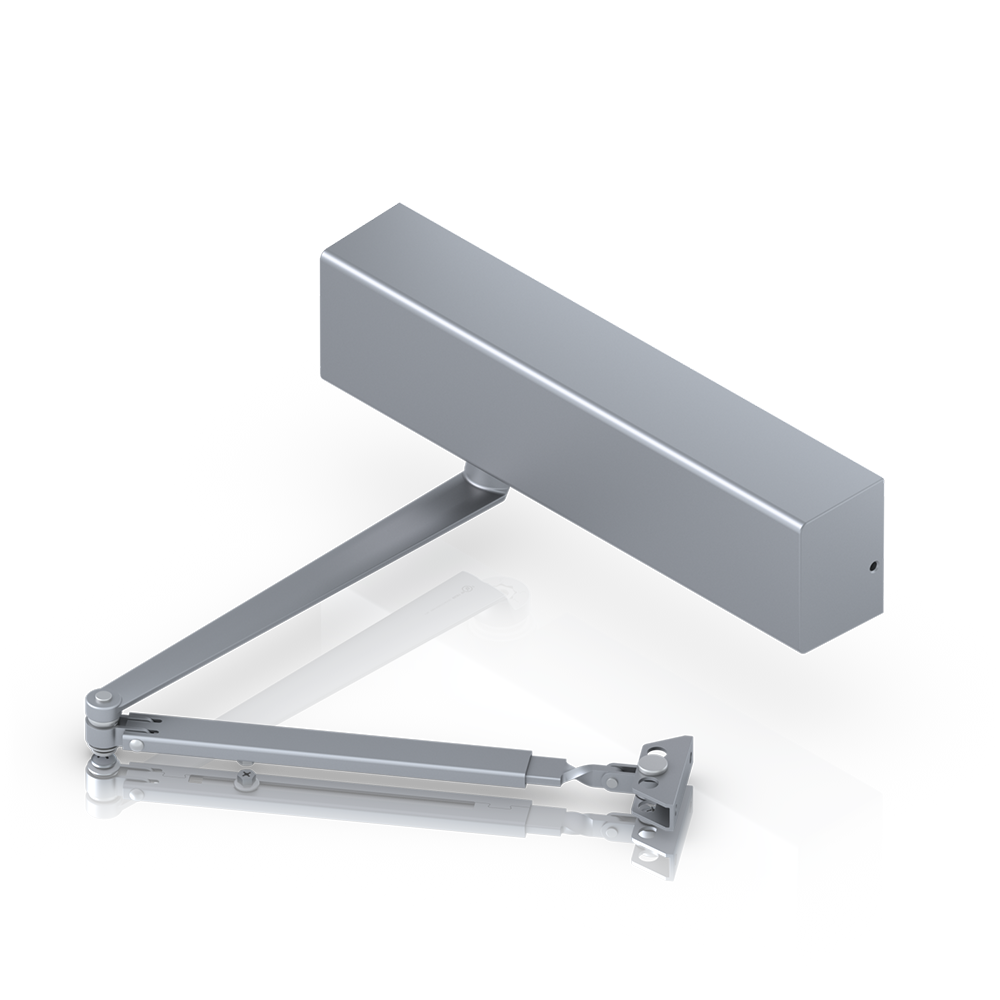

The offered product is a mechanical door closer that you can install on either side, on the opening or closing side. It has an adjustable closing force and closing speed, and you can mount it on most doors with a width from 85 to 125 cm (exact data in the specification below the description). The opening angle depends on the width of the door and is up to 180°.

Specifications

Ubiquiti UACC-DoorCloser
Mechanical
Dimensions Lock body: 256.5 x 60 x 48 mm (12.9 x 3.5 x 2.1")
Weight 3.3 kg (7.3 lb)
Enclosure Material

Lock body: aluminum alloy, carbon steel, hot-rolled steel

Deco cover: cold-rolled steel

Max. Door Opening Angle 180°
Hardware
Door Width / Weight (Standard Door/Transom Mount)

Power size 2: 850 mm / 40 kg

Power size 3: 950 mm / 60 kg

Power size 4: 1100 mm / 80 kg

Power size 5: 1250 mm / 100 kg

Power size 6: 1400 mm / 120 kg

Door Width / Weight (Parallel Bracket Mount)

Power size 3: 950 mm / 60 kg

Power size 4: 1100 mm / 80 kg

Power size 5: 1250 mm / 100 kg

Application Range

Standard door mount on the pull side

Transom mount on the push side (This option is not covered by the Certificate)

Parallel bracket mount on the push side (Size 3-5 only)

Power Size EN2-6
Certifications CE, EN 1154, EN 1634, AS 1530.4
