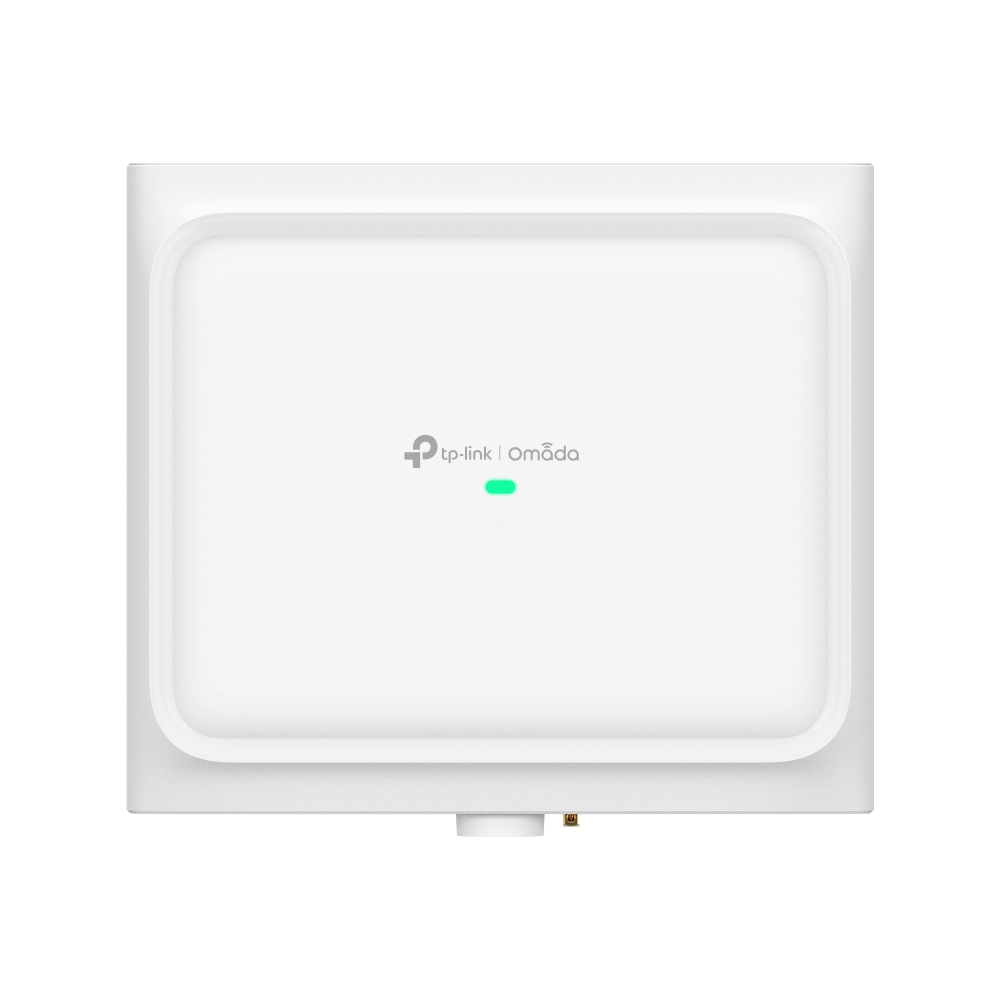

The TP-Link EAP650 D120-Outdoor is a professional, dual-band Wi-Fi 6 (IEEE 802.11ax) access point designed for use in harsh outdoor environments. The device ensures high performance, low latency, and connection stability for multiple simultaneous users, thanks to the use of OFDMA and MU-MIMO technologies. It features omnidirectional antennas and a durable, outdoor enclosure with an IP67 protection rating, allowing for mounting on walls, masts, and poles. Wired connectivity is provided by an Ethernet port with PoE support, which simplifies installation. Full integration with the Omada SDN platform allows for central management, intelligent roaming, and load balancing, making it a scalable and reliable solution for modern Wi-Fi networks in open areas.

Designed for Warehouses
The EAP650 D120-Outdoor is equipped with a durable and sealed enclosure with an **IP68** rating. It is dustproof and can withstand immersion in water. The device is an ideal solution for use in warehouse environments.
- Durable waterproof enclosure
- Allowable operating temperature from -30°C to 70°C
- Dustproof

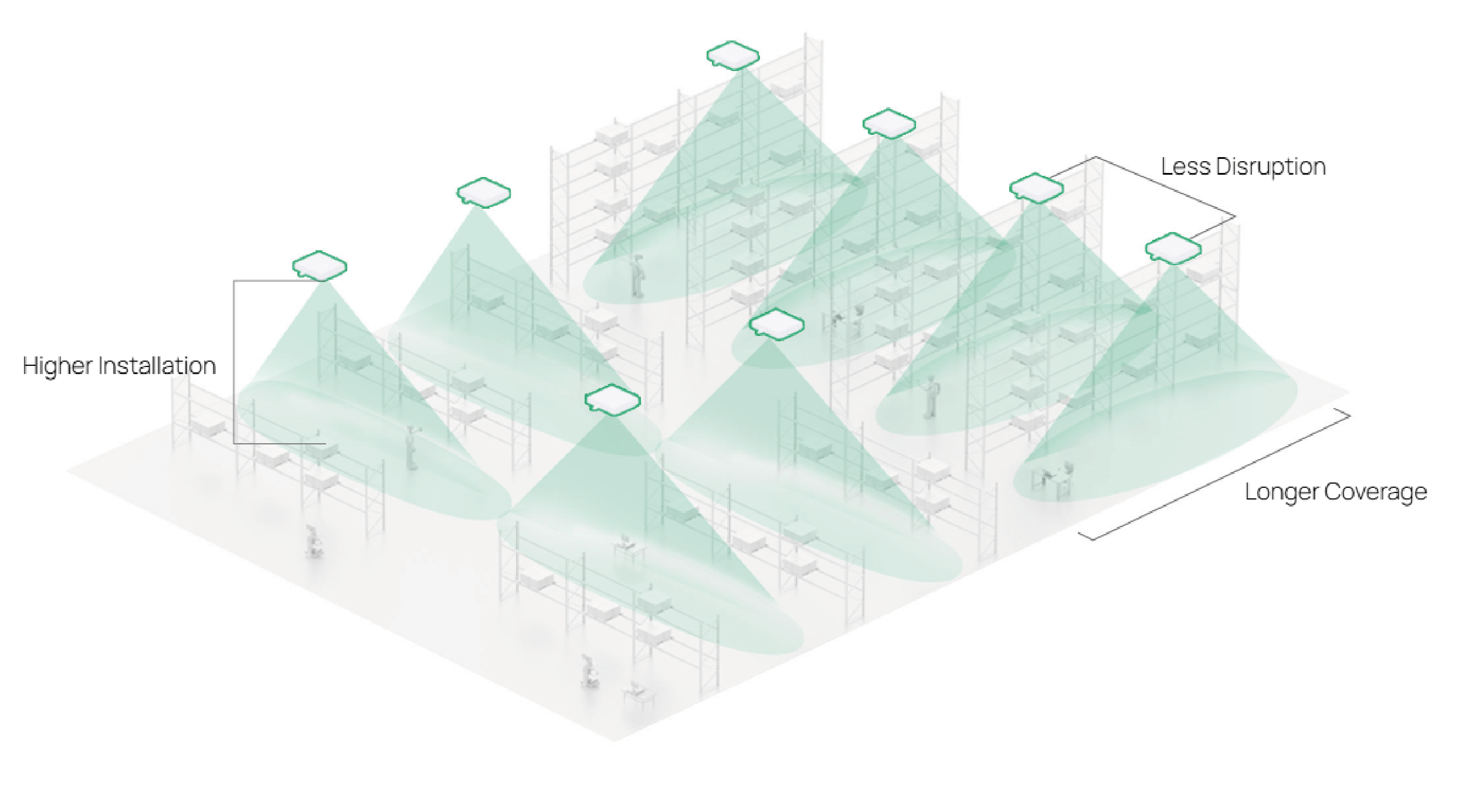

Enhance Wi-Fi Quality in Warehouse Areas with Directional Antennas
4 built-in, high-gain, dual-band directional antennas ensure optimal Wi-Fi performance, offering precise and wide area coverage with signal*
Directional Antennas Providing Long Range for Outdoor Applications
2.4 GHz up to 240 m*
5 GHz up to 500 m*
* Values are based on field tests in an open, outdoor environment without obstacles. The numbers provided here are the maximum values for a single EAP650 D120-Outdoor, for which the client signal strength is ≥ -75 dBm. Actual transmission range and recommended coverage are not guaranteed and may vary due to environment, receiving device, etc.

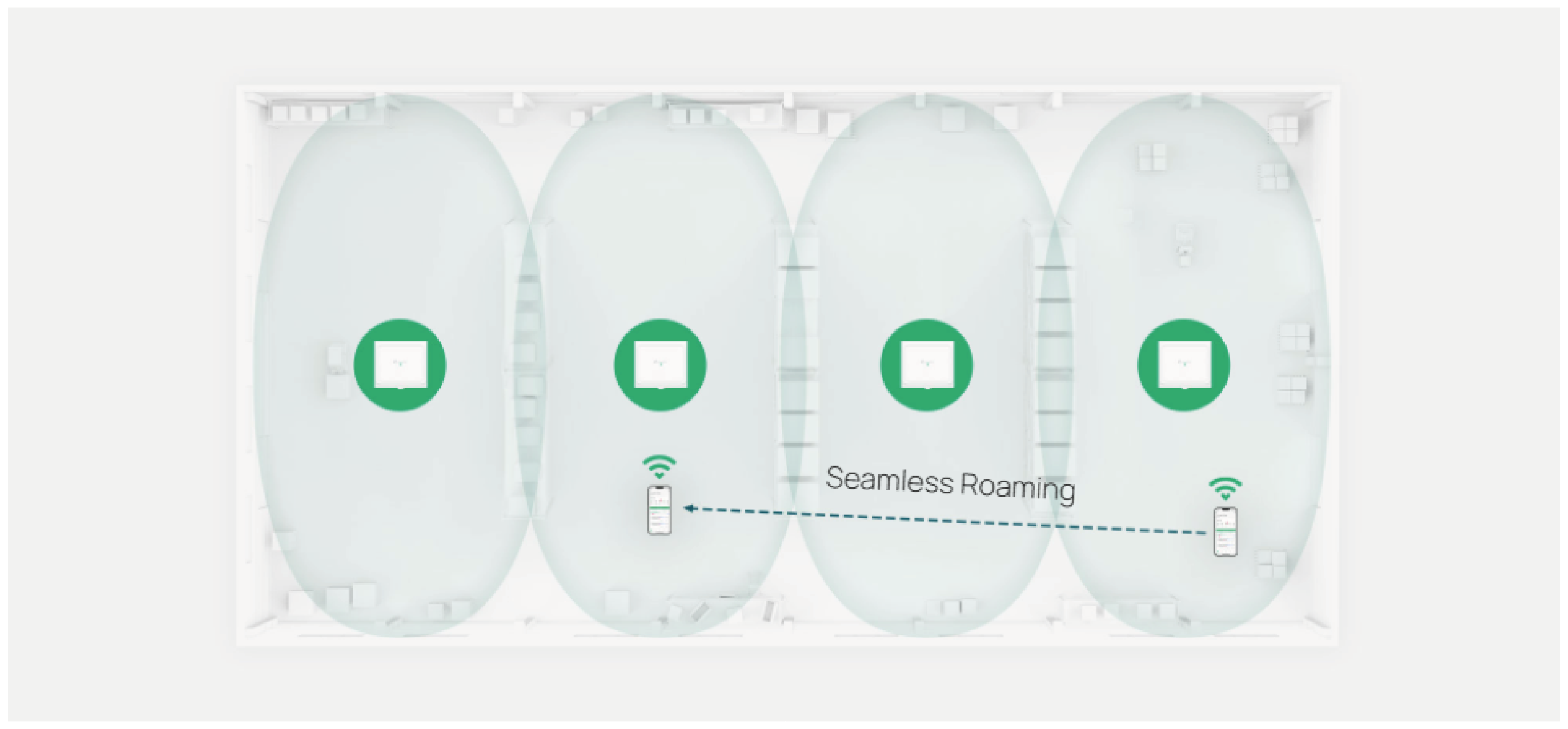

Seamless Connections with Seamless Roaming
Ensure uninterrupted connectivity for users as they move throughout the facility by automatically switching them to access points with the optimal signal.

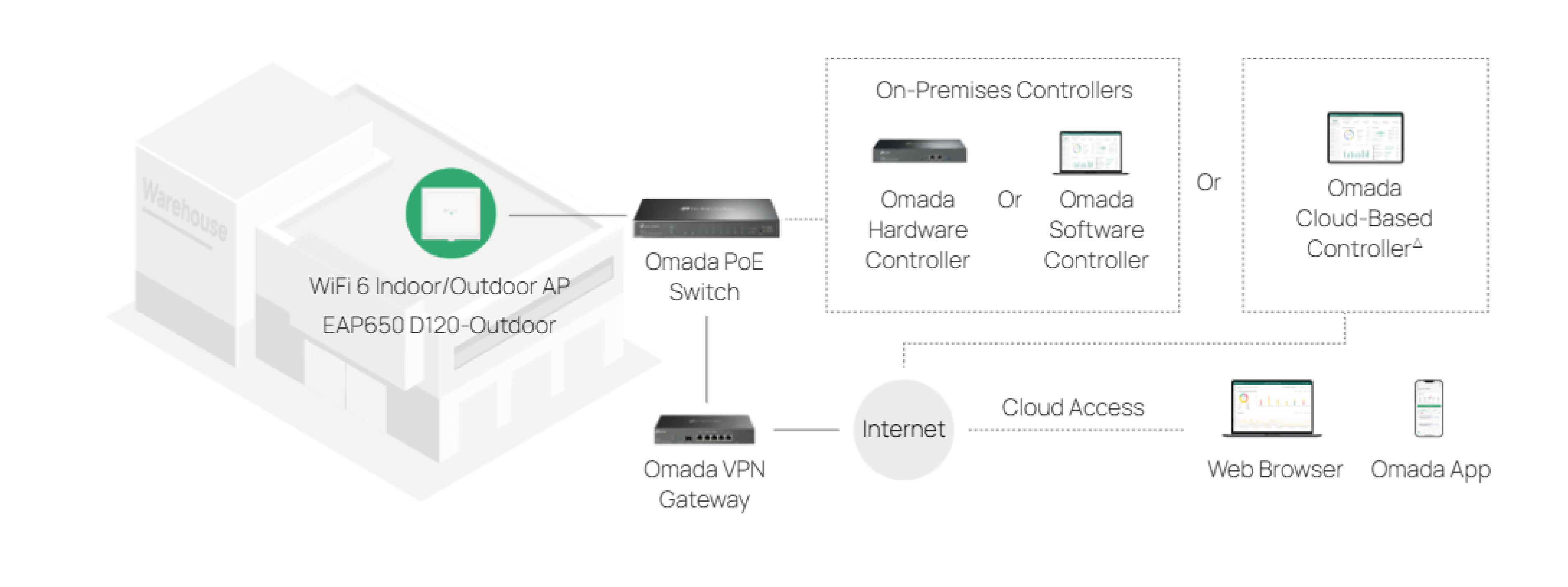

Integration with the Omada SDN Platform

Specifications
TP-Link EAP650 D120-Outdoor | |
HARDWARE FEATURES | |
---|---|
Ports | 1 Gigabit Ethernet Port (supporting 802.3at PoE or 48V Passive PoE) |
Buttons | Reset |
Power Supply | • 802.3at PoE • 48V Passive PoE |
Power Consumption | 12.5W (802.3at PoE or Passive PoE) |
Dimensions (W x D x H) | 207.5 × 58 × 230 mm (8.2 × 2.3 × 9.1 inches) |
Antennas | Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal, 30° Vertical |
Bluetooth | Yes |
Weatherproof Enclosure | IP68 |
Mounting | Optional Accessory Bracket APM-100: Vertical adjustment ±45° and Horizontal adjustment ±45° Note: The optional accessory bracket is not included and must be purchased separately |
WIRELESS FEATURES | |
Coverage Area | 2.4 GHz: 200+ m* 5 GHz: 500+ m* |
Concurrent Clients | 250+** |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
Frequency | 2.4 GHz, 5 GHz |
Transmission Rate | 574 Mb/s (2.4 GHz) + 2402 Mb/s (5 GHz)† |
Wireless Functions | 1024-QAM DL/UL OFDMA Multi-SSID (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment Transmit Power Control (based on dBm) QoS (WMM) 2×2 (2.4 GHz and 5 GHz) DL/UL MU-MIMO Omada Mesh§ Seamless Roaming (802.11k/v/r)§ Band Steering Band Load Balancing Airtime Fairness Beamforming RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule Wireless Statistics Static IP/Dynamic IP |
Wireless Security | Captive Portal Authentication§ Access Control Wireless MAC Address Filtering Wireless Client Isolation SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Encryption |
Transmit Power | < 20 dBm (2.4GHz, EIRP) < 23 dBm (5 GHz, Band 1 and Band 2, EIRP) < 30 dBm (5 GHz, Band 3, EIRP) |
MANAGEMENT | |
Omada App | Yes |
Backup and Restore | Yes |
NTP | Yes |
Centralized Management | Omada Hardware Controller Omada Software Controller Omada Cloud-Based Controller Omada App |
Cloud Access | Yes. Requires use of an Omada Controller. |
Email Alerts | Yes |
LED On/Off Control | Yes |
MAC Address Access Control | Yes |
SNMP | v1, v2c |
System Log | Yes |
SSH | Yes |
Web-based Management | Yes |
Multi-site Management | Yes |
Zero-Touch Provisioning (ZTP) | Yes. Requires use of the Omada Cloud-Based Controller. |
OTHERS | |
Package Contents | EAP650 D120-Outdoor Mounting Kit Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Environment | Operating Temperature: -30?–70? (-22?–158?) Storage Temperature: -40?–70? (-40?–158?) Operating Humidity: 10%–90% RH, non-condensing Storage Humidity: 5%–90% RH, non-condensing |
