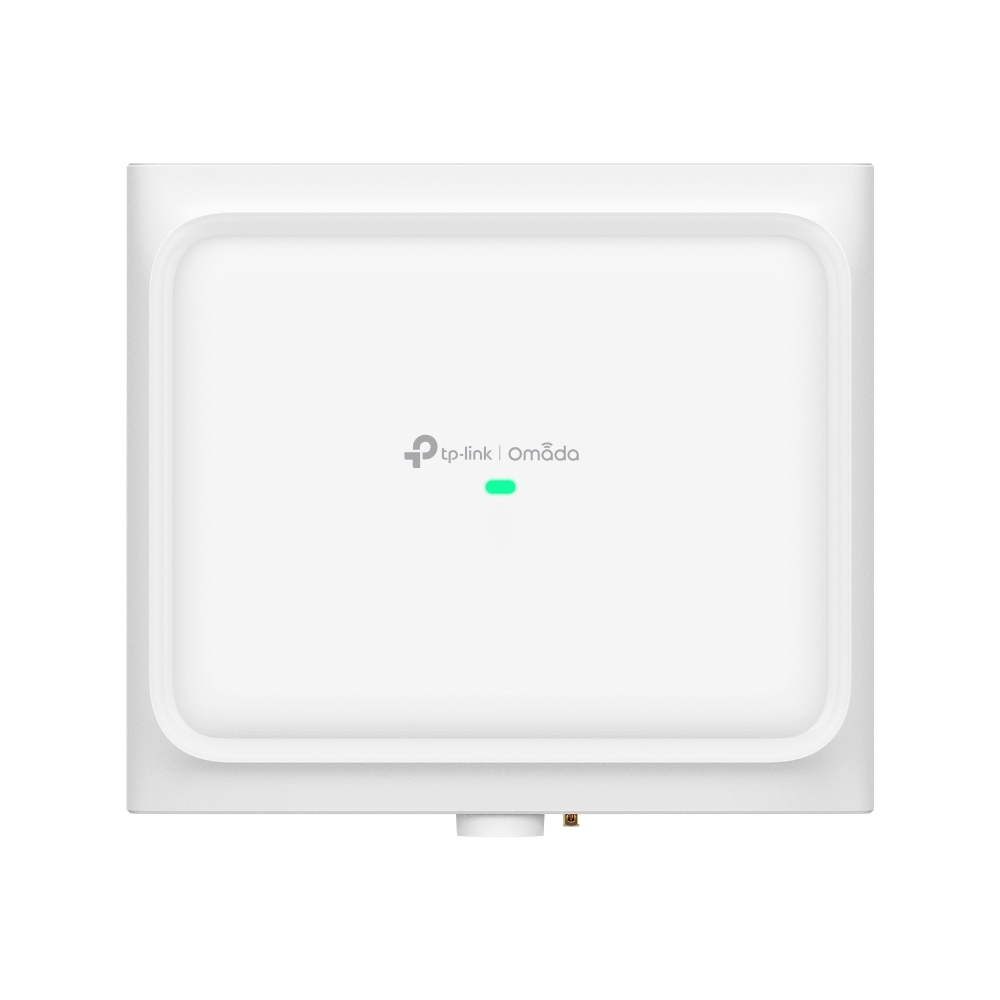

TP-Link EAP650 D30-Outdoor Access Point Omada Mesh Wi-Fi 6, AX3000, IP, 1X 1G
Produttore: TP-Link
Codice prodotto: TL-EAP650-D30-O
Numero di catalogo: 10687
Garanzia (mesi):
Prezzo
157,55 $
193,79 $ IVA inclusa
Non disponibile
favoriteLista dei desideri
Descrizione

The TP-Link EAP650 D30-Outdoor is a highly flexible, dual-band Wi-Fi 6 (AX3000, IEEE 802.11ax) access point, optimized for reliable operation in indoor and outdoor environments. The device provides a total wireless speed of up to 3000 Mb/s, ensuring low latency and stable connections for multiple users simultaneously, thanks to OFDMA and MU-MIMO technologies. It features a durable enclosure with an IP67 protection rating, allowing for flexible mounting, and wired connectivity and power are simplified by a Gigabit Ethernet port with PoE support. As part of the Omada SDN platform, the access point enables centralized management, intelligent roaming, and load balancing, making it a scalable solution for building modern Wi-Fi networks.

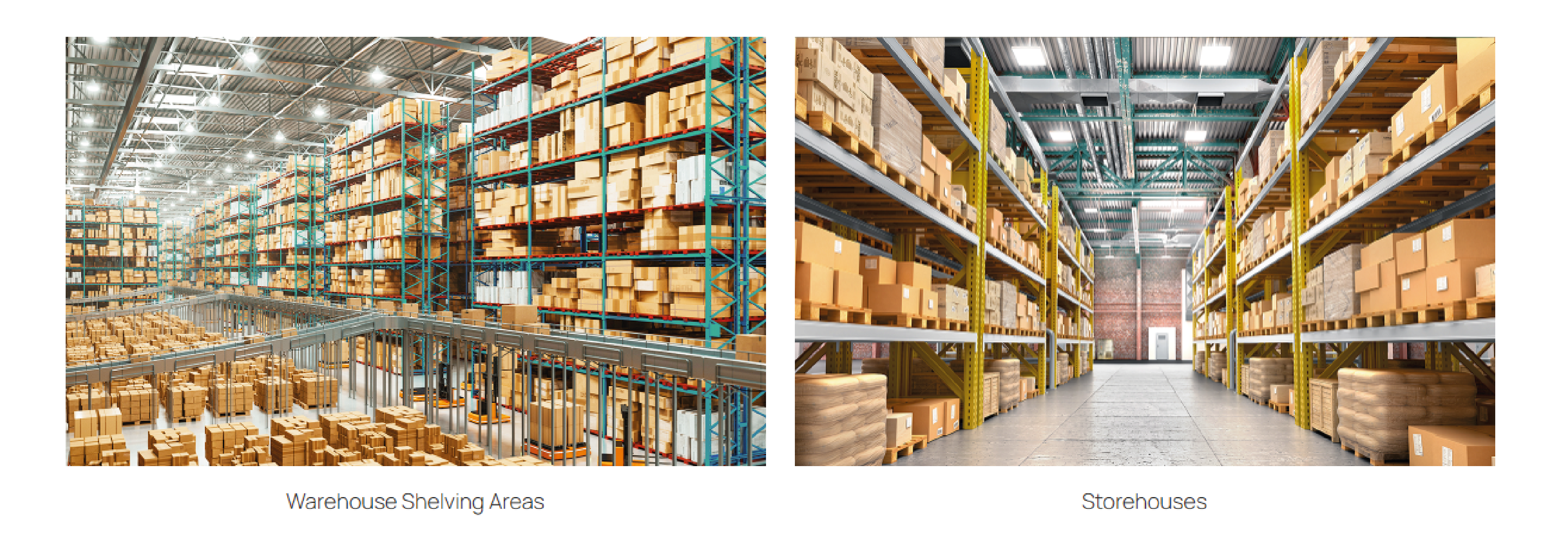

Designed for Warehouses

The EAP650 D30-Outdoor is equipped with a durable and sealed enclosure with an IP68 rating. It is dustproof and can withstand immersion in water. The device is an ideal solution for use in warehouse environments.

  • Durable waterproof enclosure
  • Allowable operating temperature from -30°C to 70°C
  • Dustproof

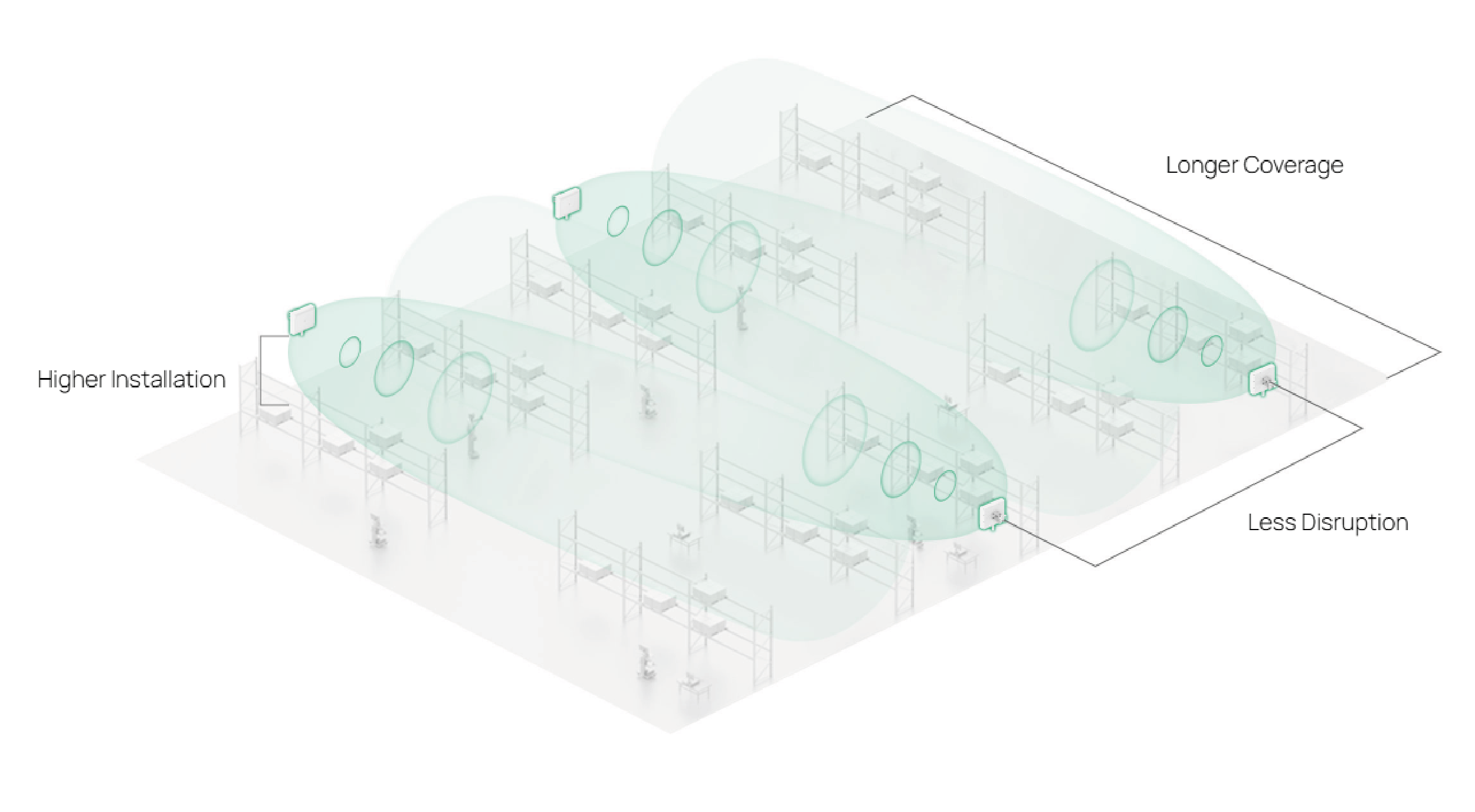

Enhance Wi-Fi Quality in Warehouse Areas with Directional Antennas

4 built-in, high-gain, dual-band directional antennas ensure optimal Wi-Fi performance, offering precise and wide area coverage with signal.

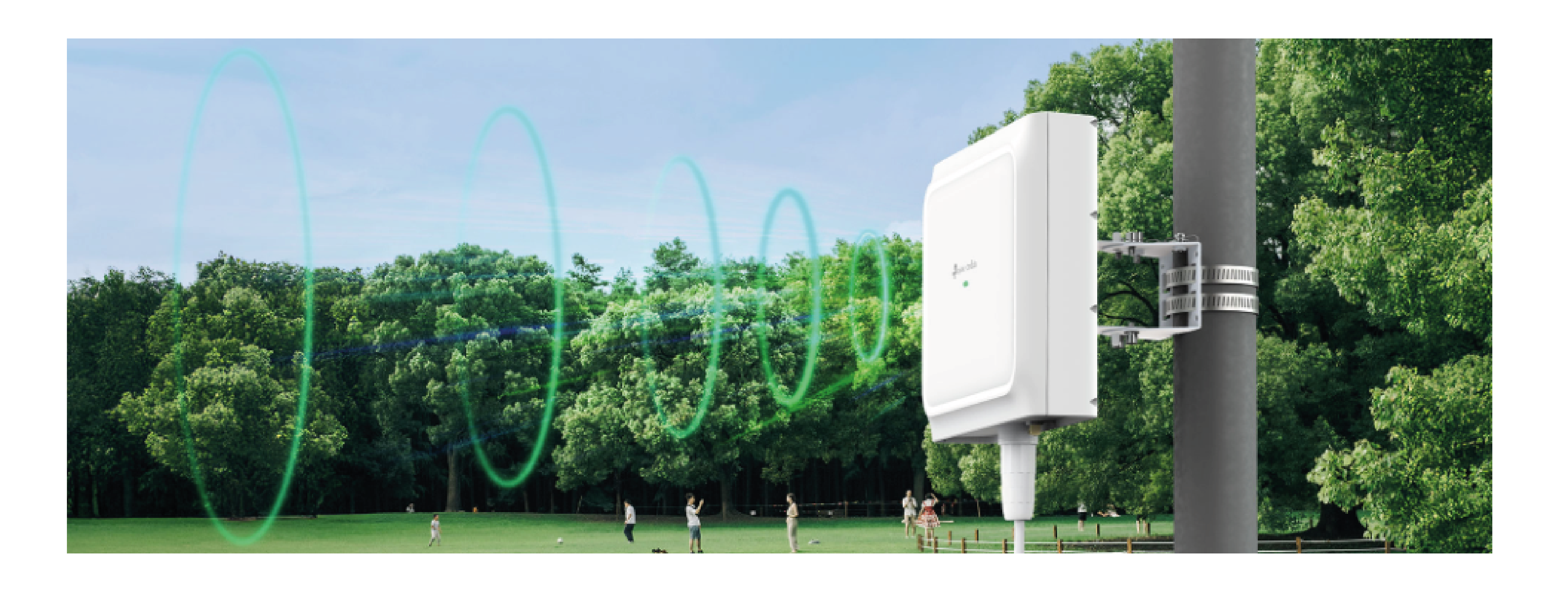

Directional Antennas Providing Long Range for Outdoor Applications

2.4 GHz up to 360 m*
5 GHz up to 900 m*

* Values are based on field tests in an open, outdoor environment without obstacles. The numbers provided here are the maximum values for a single EAP650 D30-Outdoor, for which the client signal strength is ≥ -75 dBm. Actual transmission range and recommended coverage are not guaranteed and may vary due to environment, receiving device, etc.

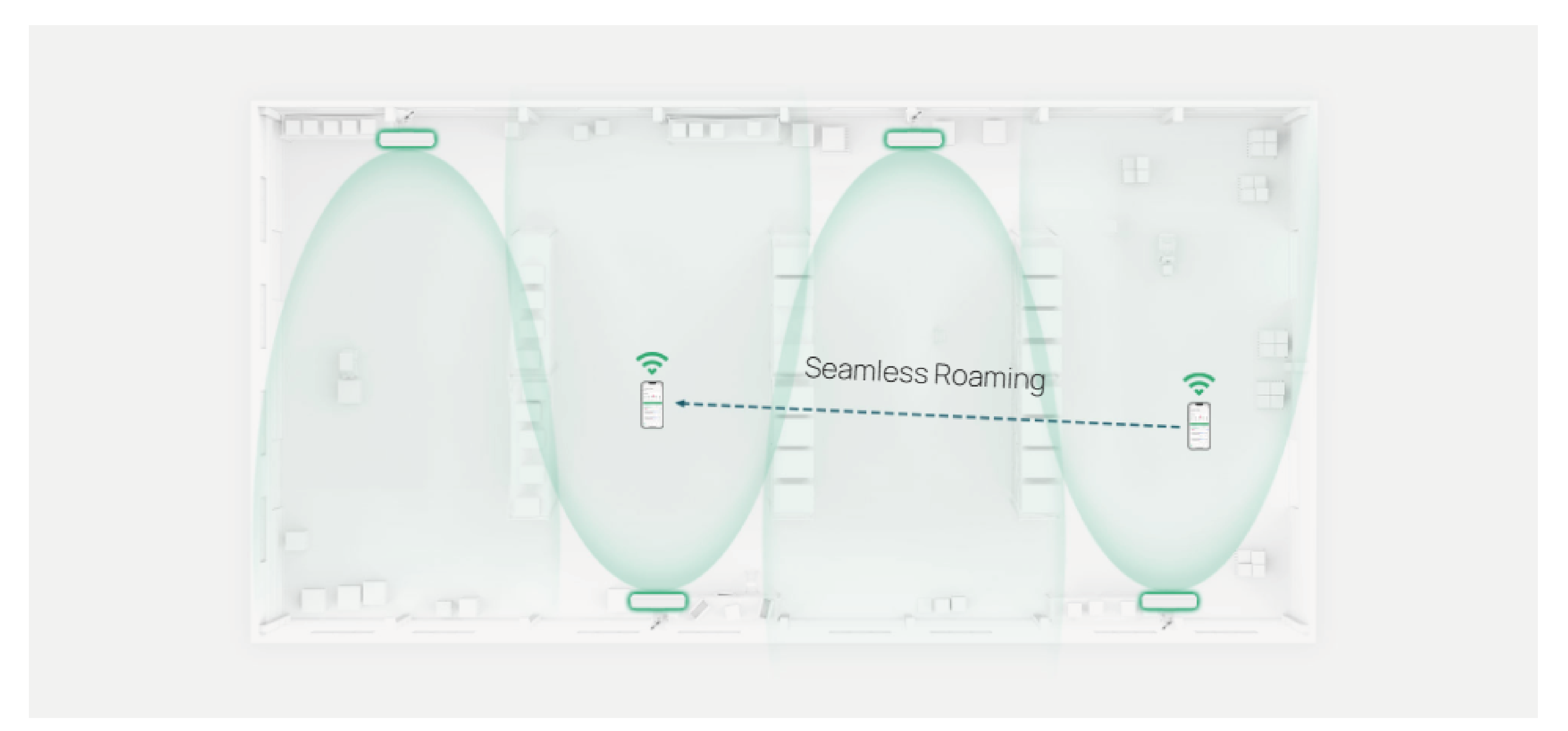

Seamless Connections with Seamless Roaming

Ensure uninterrupted connectivity for users as they move throughout the facility by automatically switching them to access points with the optimal signal.

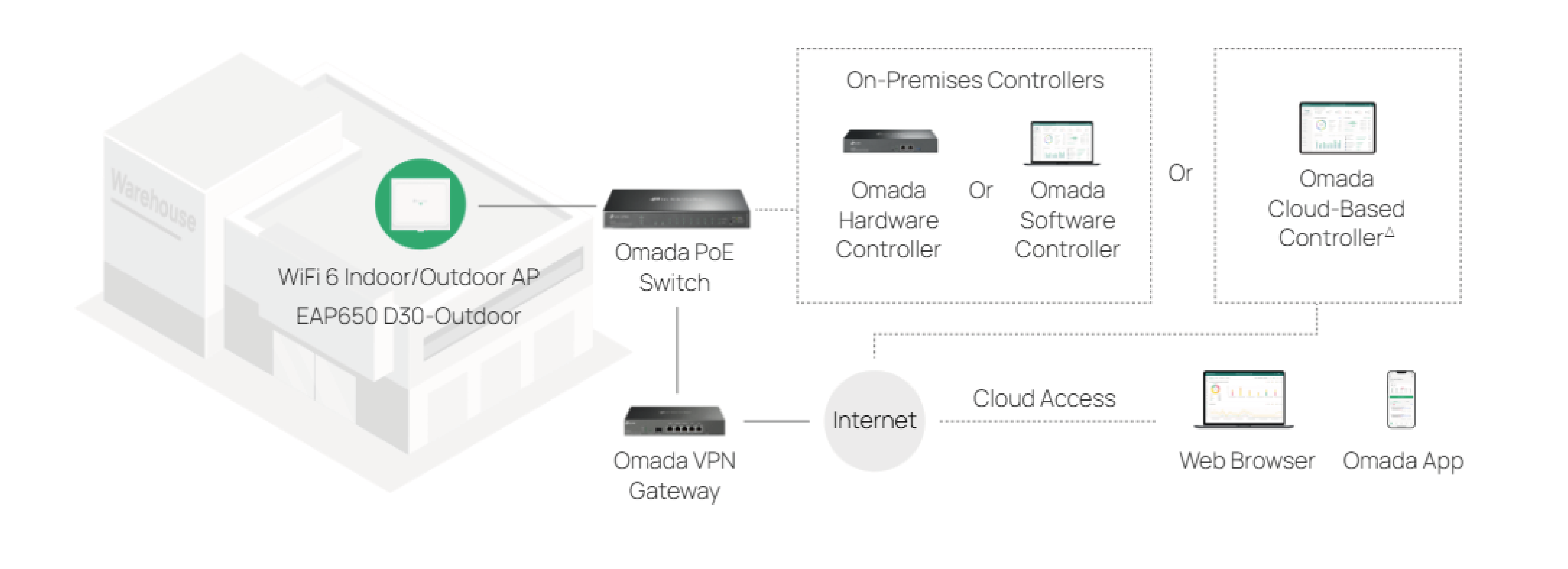

Integration with the Omada SDN Platform

Specifications

TP-Link EAP650 D30-Outdoor
HARDWARE FEATURES
Ports     1 Gigabit Ethernet Port (supporting 802.3at PoE or 48V Passive PoE)
Buttons Reset
Power Supply • 802.3at PoE
• 48V Passive PoE
Power Consumption     12.5W (802.3at PoE or Passive PoE)
Dimensions (W x D x H)     207.5 × 58 × 230 mm
(8.2 × 2.3 × 9.1 inches)
Antennas Built-in Directional Antennas:
• 2.4 GHz: 2× 8 dBi
• 5 GHz: 2× 10 dBi
Beamwidth: 120° Horizontal, 30° Vertical
Bluetooth     Yes
Weatherproof Enclosure IP68
Mounting Wall / Pole / Ceiling Mountable
WIRELESS FEATURES
Concurrent Clients     250+**
Wireless Standards     IEEE 802.11 a/b/g/n/ac/ax
Frequency     2.4 GHz, 5 GHz
Transmission Rate     574 Mb/s (2.4 GHz) + 2402 Mb/s (5 GHz)
Wireless Functions     1024-QAM
DL/UL OFDMA
Multi-SSID (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (based on dBm)
QoS (WMM)
2×2 (2.4 GHz and 5 GHz) DL/UL MU-MIMO
Omada Mesh§
Seamless Roaming (802.11k/v/r)§
Band Steering
Band Load Balancing
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP
Wireless Security Captive Portal Authentication§
Access Control
Wireless MAC Address Filtering
Wireless Client Isolation
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Encryption
Transmit Power     < 20 dBm (2.4GHz, EIRP)
< 23 dBm (5 GHz, Band 1 and Band 2, EIRP)
< 30 dBm (5 GHz, Band 3, EIRP)
MANAGEMENT
Omada App     Yes
Backup and Restore     Yes
NTP Yes
Centralized Management     Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access     Yes. Requires use of an Omada Controller.
Email Alerts     Yes
LED On/Off Control     Yes
MAC Address Access Control     Yes
SNMP     v1, v2c
System Log     Yes
SSH Yes
Web-based Management     Yes
Multi-site Management     Yes
Zero-Touch Provisioning (ZTP)     Yes. Requires use of the Omada Cloud-Based Controller.
OTHERS
Package Contents     EAP650 D30-Outdoor
Mounting Kit
Installation Guide
System Requirements     Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment     Operating Temperature: -30?–70? (-22?–158?)
Storage Temperature: -40?–70? (-40?–158?)
Operating Humidity: 10%–90% RH, non-condensing
Storage Humidity: 5%–90% RH, non-condensing
