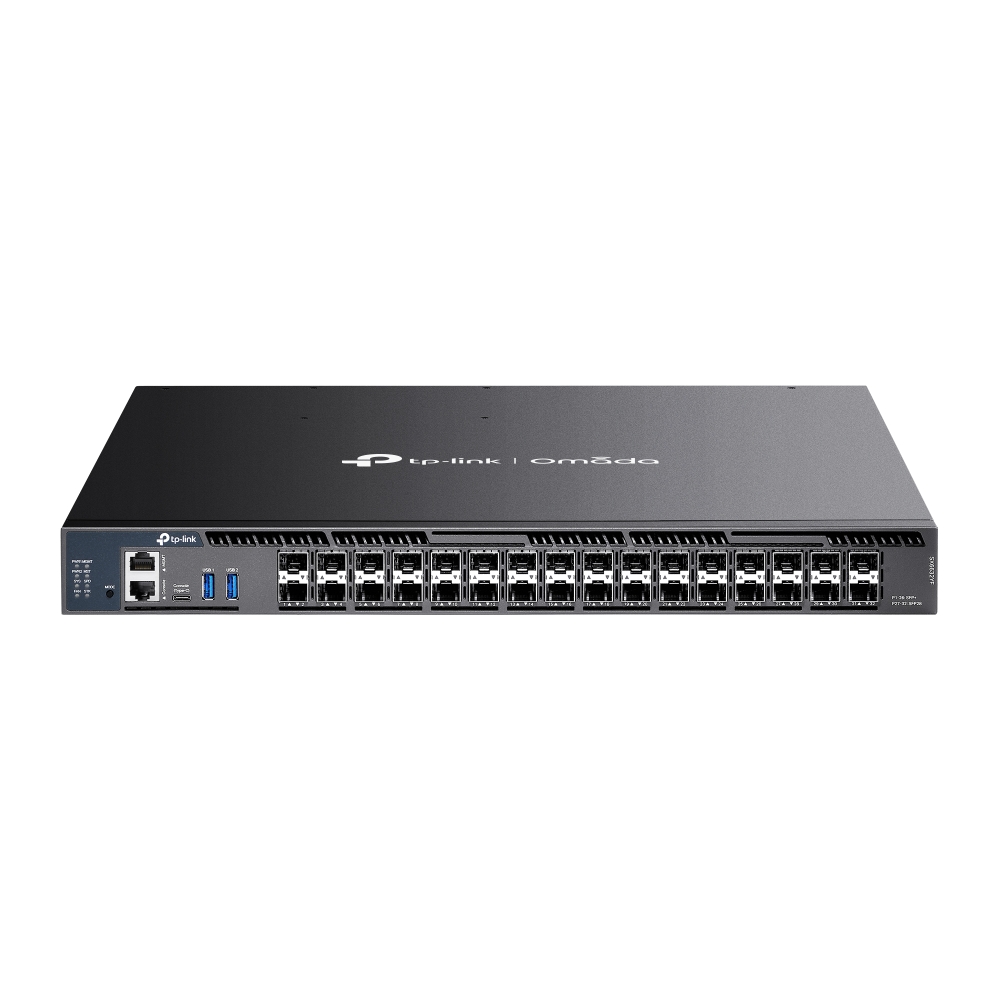

The TP-Link SX6632YF is a managed aggregation switch operating at Layer 3 (L3), fully compatible with the Omada SDN ecosystem. Designed as a stackable device, it is ideally suited as a core network element or an aggregation point in extensive, demanding infrastructures. The switch features a total of 32 ultra-high-speed ports, including 26 SFP+ (10G) slots and 6 SFP28 (25G) slots, enabling the fastest backbone connections. The SX6632YF provides full support for Layer 2 management features and advanced Layer 3 routing protocols, such as Static Routing, OSPF, RIP, and VRRP. The physical stacking capability allows multiple units to be combined into a single logical switch, significantly simplifying network management while increasing its reliability and scalability. The device is designed for 19" Rack mounting and occupies a standard 1U height. Power is supplied by a built-in AC power supply, and for continuous operation, the switch offers the option to add a redundant power supply (RPS - sold separately). The maximum power consumption is 215.6 W. Management of the SX6632YF can be done via an intuitive graphical Web interface in standalone mode or through the centralized Omada SDN platform.

Product Application

The Omada SX6632YF is a managed Layer 3 fiber-port switch that offers L3 Routing, high 25 Gbps wire speed, stacking, and redundant power, meeting the needs of the convergence layer. It features 6x 25 Gbps SFP28 slots, 26x 10 Gbps SFP+ slots, and physical stacking capability. High-level security and advanced management features ensure that this switch provides reliable performance in SMB, Enterprise, and ISP Networks applications.

High Connection Speed and Efficient Stacking

The 6x 25 Gbps SFP28 slots and 26x 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Physical stacking of up to 8 units and a total switching capacity of up to 6560 Gbps strengthens the network structure with its performance and built-in redundancy.

Extensive Layer 3 Capabilities

The switch is equipped with multiple Layer 3 routing protocols supporting network scaling. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. Multicast routing protocols PIM-DM and PIM-SM guarantee efficient routing for multicast groups.

High Availability

Redundant power and VRRP are the ideal choice for a reliable network architecture. ERPS supports fast protection and recovery in a ring topology.

Advanced Security Features

Network protection against various threats is provided by ACL (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell (SSH).

Omada SDN

The Omada system offers centralized cloud management and many management features, such as Zero-Touch Provisioning (ZTP)*. The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing entirely centralized cloud management from a single interface.

In addition to central management via the Omada app, the SX6632YF switch can also be easily managed via the web configuration page or Command Line Interface (CLI). For both methods, traffic is protected by SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON allow querying the switch for valuable information and sending trap messages in case of unexpected events.
