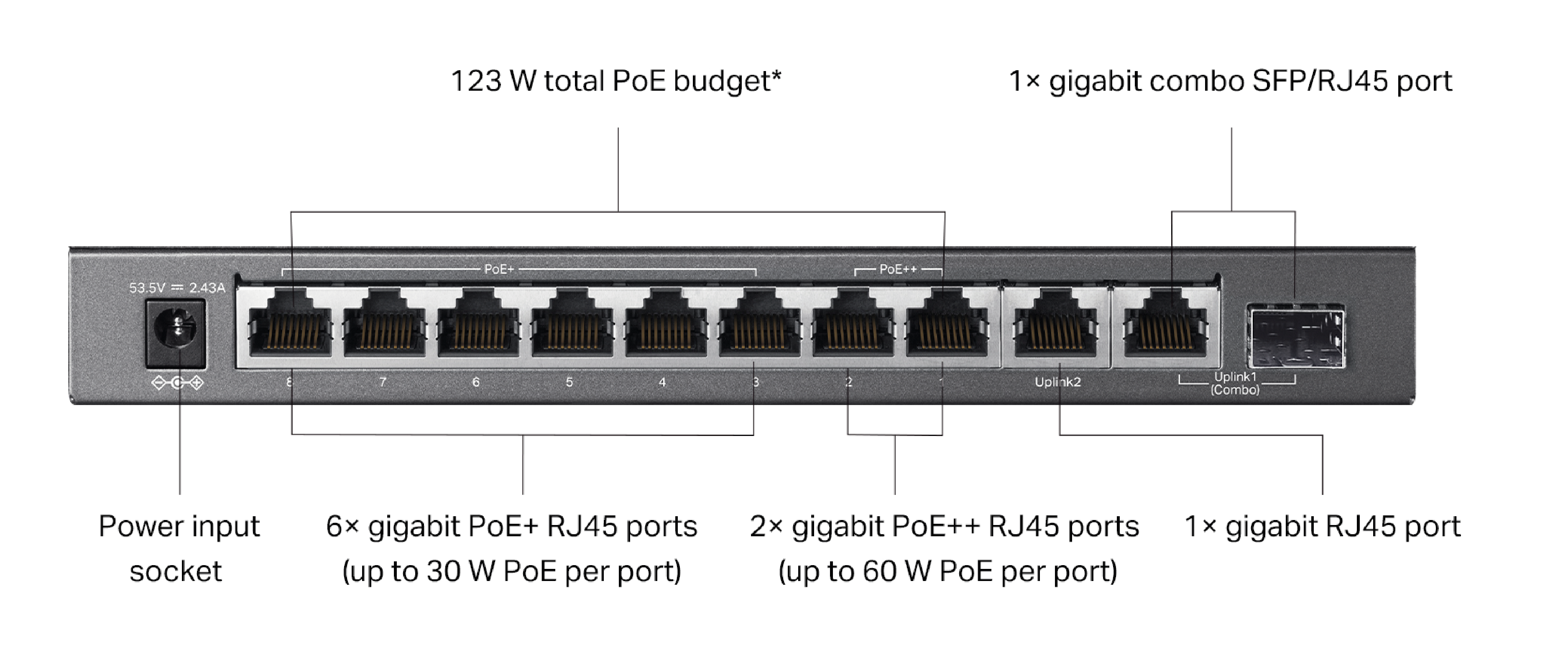

The TP-Link TL-SG1210PP is an unmanaged switch equipped with a total of 10 Gigabit Ethernet ports (10/100/1000 Mbps), ensuring fast and stable connectivity for all connected devices. The switch offers PoE+ (802.3af/at) power on 6 Ethernet ports and PoE++ (802.3af/at/bt) power on the remaining 2 Gigabit Ethernet ports, allowing it to support a wide range of devices, including modern Wi-Fi 6 access points and PTZ cameras. The maximum power output per port is 15.4 W using 802.3af, 30 W using 802.3at, or 60 W using 802.3bt. The total power budget for the entire device is 123 W. The TL-SG1210PP is a Plug and Play switch and does not have management capabilities, but it offers multiple operating modes switchable via a physical slider. The "Extend" mode increases the PoE power range up to 250 meters, albeit at the cost of limiting the bandwidth to 10 Mbps; the "Priority" mode prioritizes ports with the highest numbering to protect against PoE budget overload; the "Isolation" mode separates client traffic to enhance security; and the "Recovery" mode allows automatic resetting of connected devices upon detecting a failure or unresponsiveness. The device features passive cooling and a metal desktop-style casing. You can place the switch on a desk or shelf or mount it on the wall using the included kit.

Power over Ethernet - Flexible Network Deployment

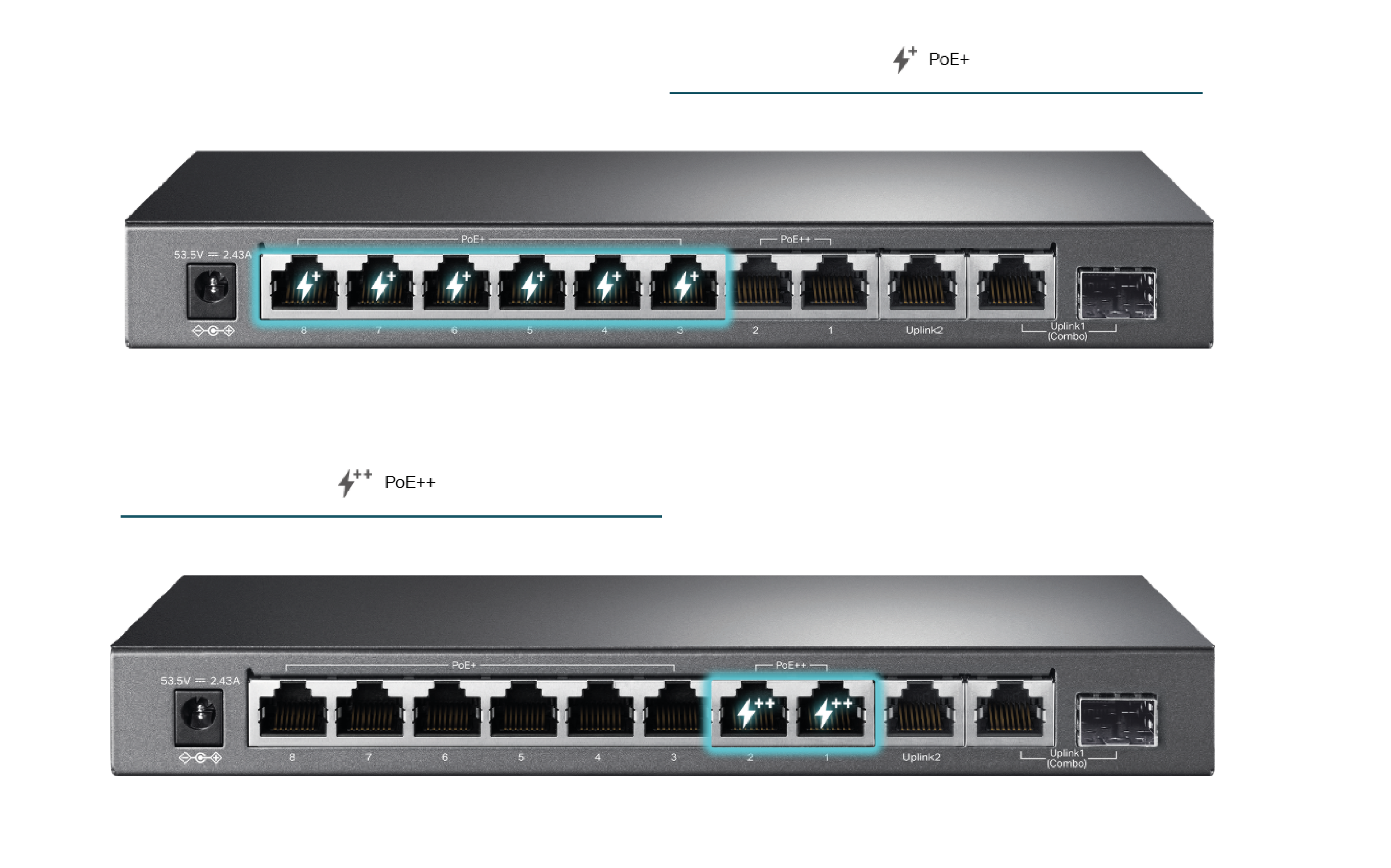

The TL-SG1210PP switch complies with IEEE 802.3af/at/bt PoE standards, offering a total PoE power budget of up to 123W (up to 30W on PoE+ ports and up to 60W on PoE++ ports). When the total power of 123W is exceeded, the intelligent power management function will cut power to lower-priority ports to protect devices from damage.

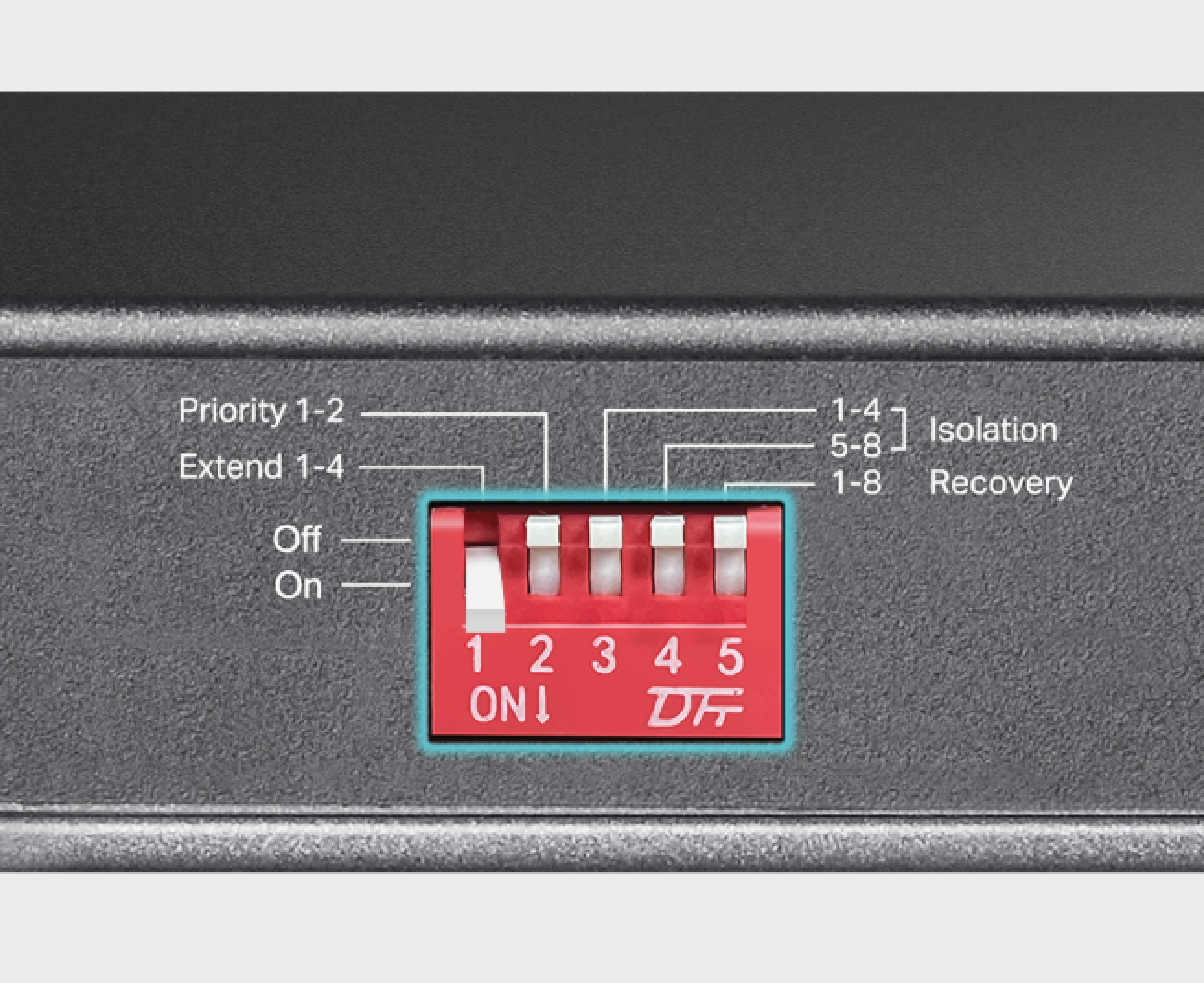

Instant Mode Switching
- Extend Mode Transmission up to 250m
In this mode, PoE transmission reaches up to 250m**. This is ideal for deploying IP cameras over large areas.
- Priority Mode One-click Port Priority
This mode guarantees the quality of sensitive applications, such as video and audio transmission, by prioritizing data on certain ports.
- Isolation Mode Traffic Separation
This mode easily separates port traffic to prevent Snooping/Tampering and isolates Broadcast Storm to enhance security.
- Recovery Mode PoE Auto Recovery
Recovery mode allows automatic detection and restarting of PoE devices, such as cameras and access points, when they stop operating or responding. Forget about manual monitoring and device restarts.

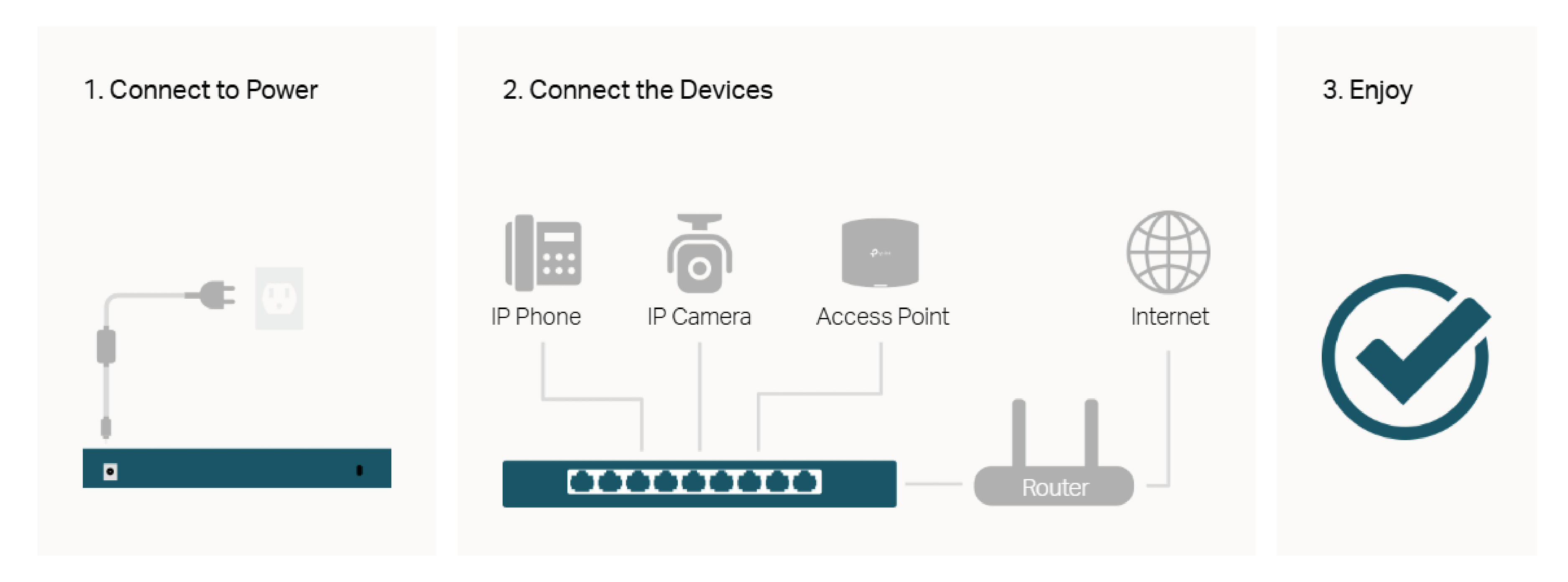

Plug and Play
1. Connect to power
2. Connect devices
3. Enjoy!

Specifications
TP-Link TL-SG1210PP | |
HARDWARE FEATURES | |
---|---|
Ports | 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max. 100 m) EIA/TIA-568 100Ω STP (max. 100m) 100BASE-TX: UTP category 5, 5e cable (max. 100 m) EIA/TIA-568 100Ω STP (max. 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100 m) EIA/TIA-568 100Ω STP (max. 100 m) |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter Output: 53.5 V DC / 2.43 A |
Packet Forwarding Rate | 14.88 Mpps |
PoE Ports (RJ45) | PoE++ Ports: 1 - 2 (802.3af/at/bt compliant) PoE+ Ports: 3 - 8 (802.3af/at compliant) PoE Power Budget: 123 W |
MAC Address Table | 4K |
Switching Capacity | 20 Gbps |
Dimensions (W x D x H) | 209 x 126 x 26 mm (8.2 x 5.0 x 1.0 inches) |
Max Power Consumption | 8.7 W (220/50 Hz with no PoE devices connected) 144.1 W (220/50 Hz with 123W PoE devices connected) |
Max Heat Dissipation | 29.67 BTU/h (220/50 Hz with no PoE devices connected) 491.38 BTU/h (220/50 Hz with 123W PoE devices connected) |
SOFTWARE FEATURES | |
Advanced Features |
Compatible with IEEE 802.3af/at/bt PoE Devices Automatic MAC Address Learning and Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Extend Mode (Ports 1-4, up to 250m PoE power and data transmission) PoE Auto Recovery (Ports 1-8) Isolation Mode (Ports 1-4/5-8) Priority Mode (Ports 1-2) |
Transmission Method | Store-And-Forward |
OTHERS | |
Package Contents | TL-SG1210PP Power Adapter Quick Installation Guide |
Environment |
Operating Temperature: 0?~40? (32?~104?); |
