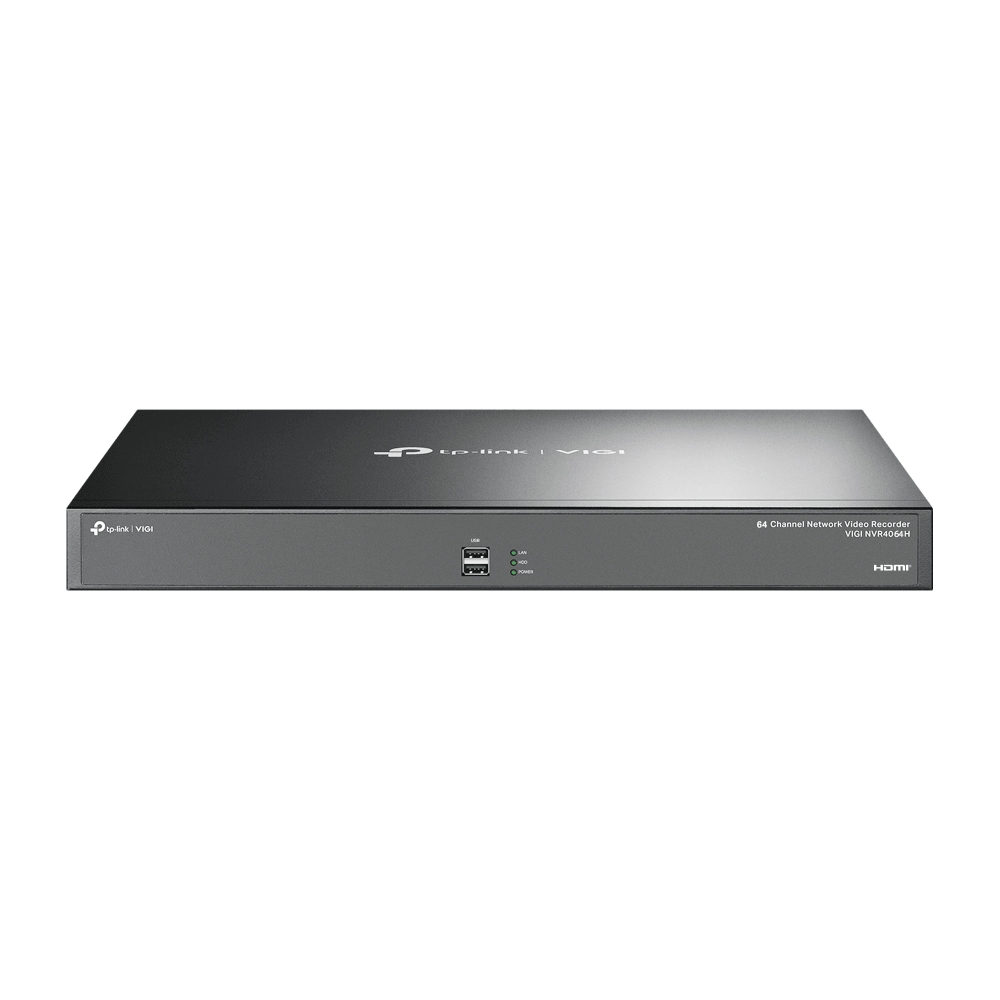

TP-Link VIGI NVR4064H is a professional IP recorder designed for extensive VIGI monitoring systems. It supports up to 64 video channels, enabling the creation of a comprehensive and scalable surveillance network. The recorder is equipped with four SATA connectors, to which you can connect hard disk drives with a total capacity of up to 40 TB (maximum 10 TB per disk), ensuring a long time for recording archival. A key advantage is the support for modern and efficient data encoding H.265+, which significantly reduces the size of recorded footage and the required bitrate, optimizing the use of disk space. The recorder supports the ONVIF standard, allowing integration and cooperation with IP cameras from other manufacturers as well. The total supported bandwidth of the recorder is 320 Mb/s, which provides sufficient reserve for simultaneous operation of many high-resolution cameras (e.g., 64 x 5 Mpix cameras). The recorder is managed via the TP-Link VIGI software, which is available for both PCs and mobile devices, offering full control over the monitoring system.

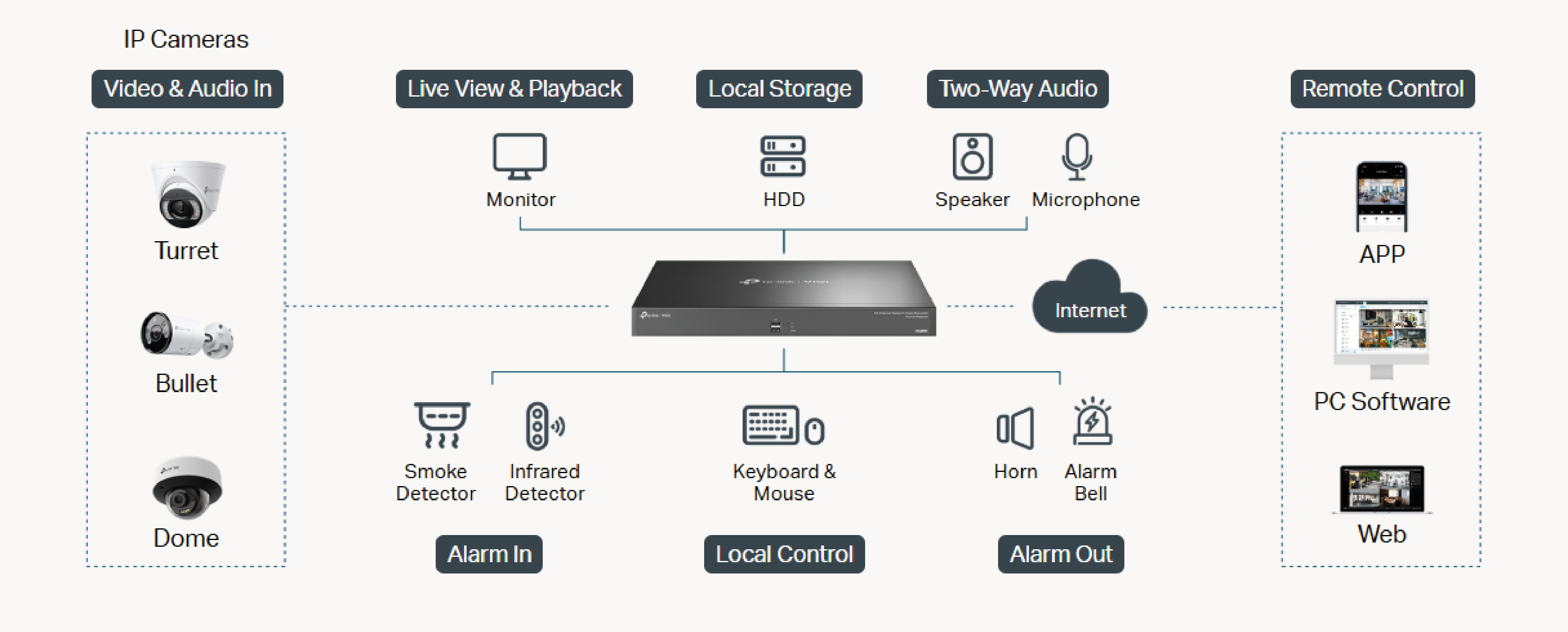

Functional Ports for SMB Monitoring

Two Ethernet Ports

Multi-Address Mode

Allows the implementation of two
different network gateways

Network Fault Tolerance

Creates security or
redundancy for your data

Port Aggregation

Realizes bandwidth stacking
and mutual link support

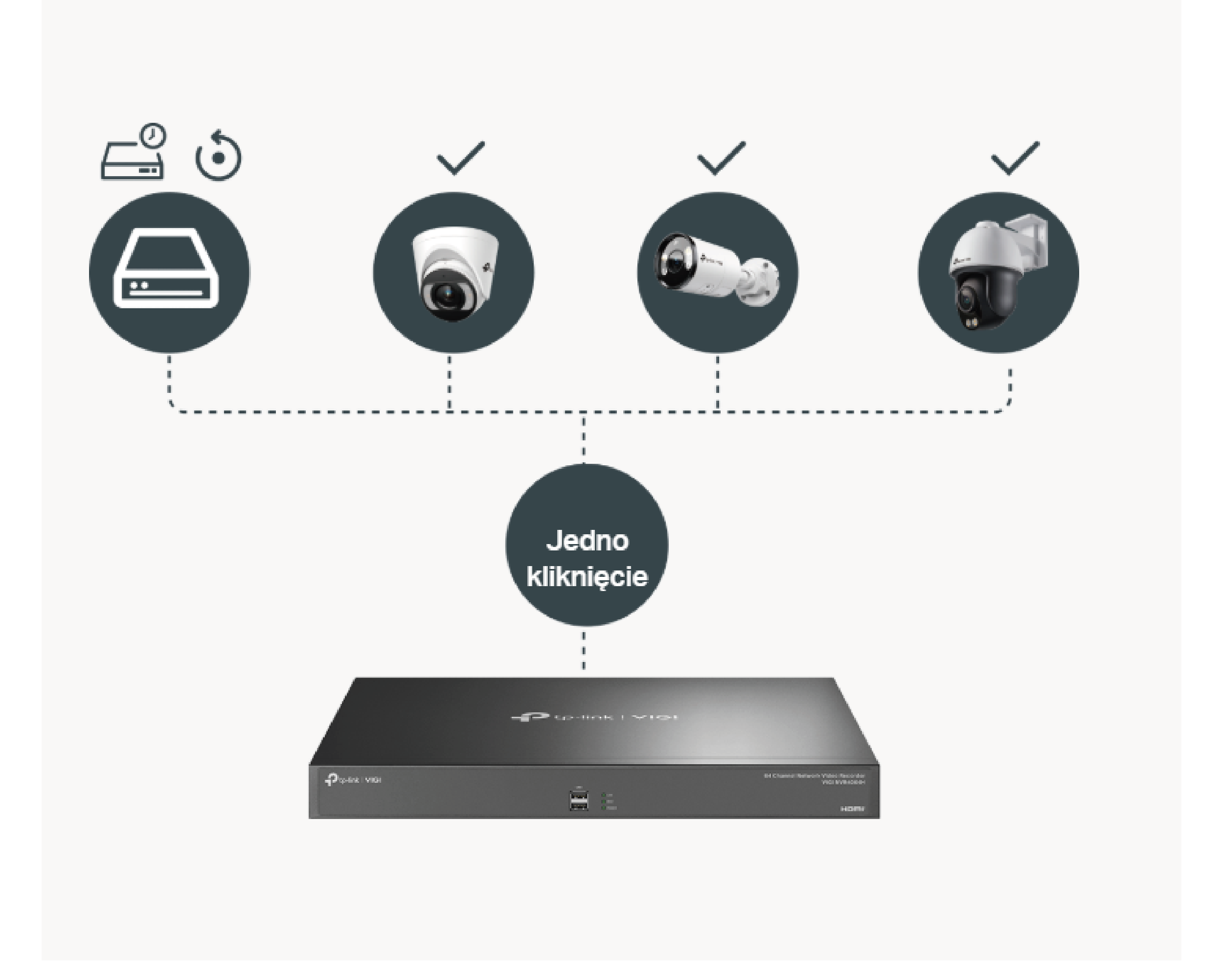

One-Click System
Initialization

VIGI NVR allows fast camera addition, HDD initialization, and storage scheduling with a single click, which translates into lower installation costs.

Specifications
