MikroTik EC25-EU&SXTsq is an integrated wireless device equipped with a LTE Cat. 4 modem and a directional antenna with a 9 dBi gain. The maximum theoretical mobile connection speed is 150 Mb/s for downloads and 50 Mb/s for uploads. The enclosure is fully designed for outdoor use, featuring an IP67 protection rating. The device has a Nano SIM slot for card connection and also supports eSIM functionality. The SXTsq includes 1 Gigabit Ethernet port, which simultaneously serves as a PoE input (passive or 802.3af/at, 12–57 V DC).

Wireless Device with Integrated LTE Cat. 4 Modem, eSIM

The offered product is a complete wireless device—radio integrated with an antenna and enclosed in a single housing. It features an LTE Cat. 4 modem, with a maximum theoretical throughput of 150 Mb/s for downloads and 50 Mb/s for uploads. At the time of its release, it was the smallest outdoor LTE/5G device from MikroTik, with smaller dimensions than the standard SXT LTE. The device includes a built-in nanoSIM slot and also supports eSIM functionality.

Directional Antenna 9 dBi

The SXTsq Embedded LTE4 features an integrated directional antenna with a gain of approximately 9 dBi. It offers significantly better range than standard indoor LTE routers, making it ideal for rural and suburban areas, in locations far from transmission towers.

1G Ethernet Port with PoE Power

The device features a 1G Ethernet port (10/100/1000 Mb/s), which also serves as a PoE input. The input voltage range is 12–57 V DC, with a maximum power consumption of 5 W. You can use either passive PoE or the 802.3af/at standard.

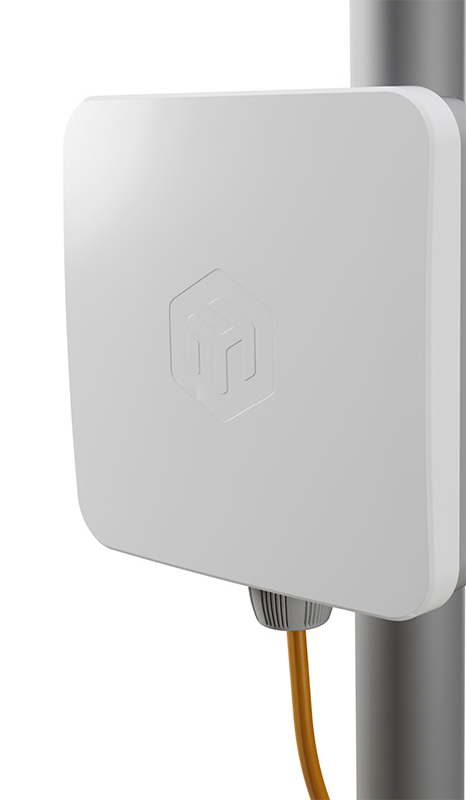

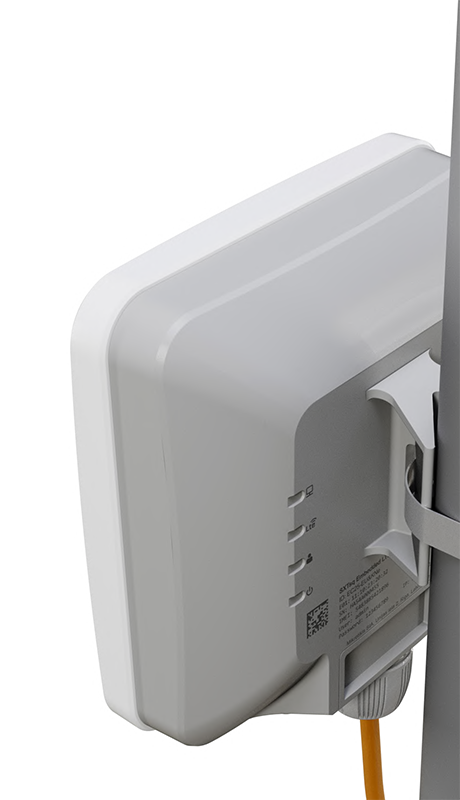

Do u?ytku na zewn?trz budynków

SXTsq jest przystosowany do wykorzystania na zewn?trz budynków, przy pomocy akcesoriów do??czonych w zestawie mo?esz zamontowa? je na s?upie.

Specifications
