Ubiquiti Doorbell Lite White UniFi Protect

Ubiquiti Doorbell Lite White UniFi Protect

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UVC-DOORBELL-L-W

Numero di catalogo: 10973

Garanzia (mesi):

Prezzo

80,38 €

98,87 € IVA inclusa

favoriteLista dei desideri

Descrizione

The Ubiquiti Doorbell Lite is a doorbell designed for use with the UniFi Protect system. It features an integrated 5 MP camera with night vision support (up to 5 m), a built-in speaker, and a microphone. The device enables two-way voice communication along with live video viewing. It is not compatible with UniFi Access and does not support remote unlocking of doors or gates. The enclosure is designed for outdoor installation and has an IPX5 protection rating. Using the accessories included in the package, the doorbell can be mounted on a wall either flush with the surface or at a 20° angle. On the rear of the Doorbell Lite is a 100M Ethernet port, which also serves as a PoE (802.3af) power input. The maximum power consumption is 8 W. The device connects directly to a switch without requiring any additional hubs.

Doorbell for the UniFi Protect System

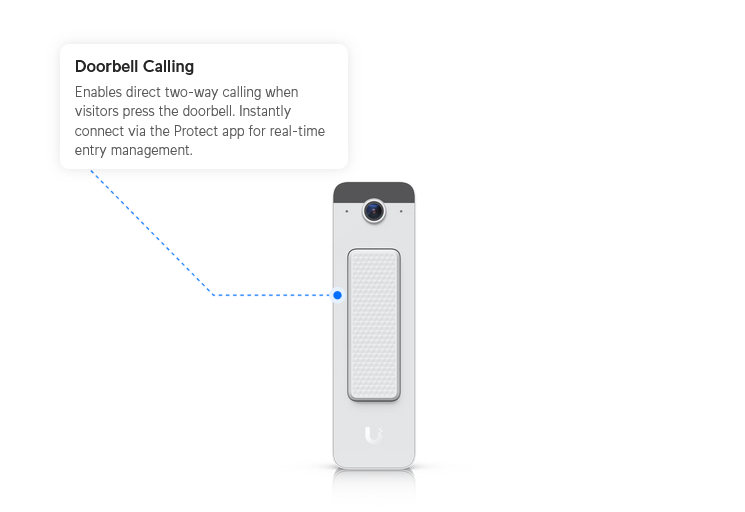

The offered product is a doorbell designed to operate under the UniFi Protect system. It enables two-way voice communication with live video viewing, and visitors can press the large button located on the front of the device. Calls are answered using the UniFi Protect application.

Note: The doorbell is not compatible with UniFi Access and is not intended for door unlocking or access control.

5 MP Camera

The front of the device features an integrated 5 MP camera supporting a maximum resolution of 1920 × 2560 pixels. The manufacturer has equipped it with a fixed-focus lens, providing a field of view of 95.8° horizontally and 131.2° vertically (175.9° diagonal), with a 3:4 aspect ratio. In addition, the camera includes built-in IR LEDs and supports black-and-white night vision with a range of up to 5 meters.

100M Ethernet Port, PoE Power Supply

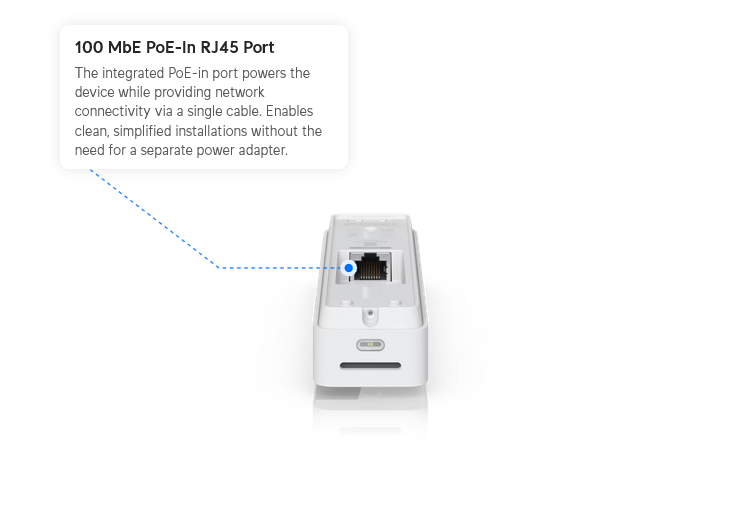

The doorbell is equipped with a 100M Ethernet port, which also serves as a PoE (802.3af) power input. The maximum power consumption is only 8 W. The device connects directly to a switch and does not require any additional hubs.

For Outdoor Use

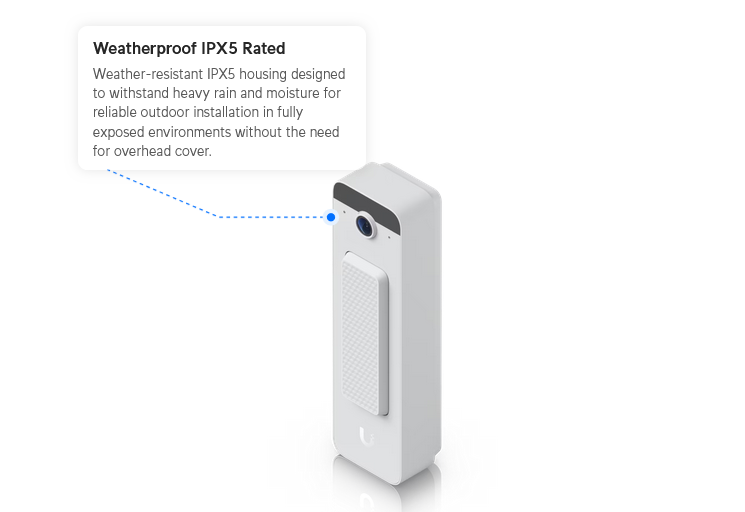

The enclosure is designed for outdoor use and features an IPX5 protection rating. The package includes two mounting brackets: one for flush wall mounting and another for installation at a 20° angle.

Specifications

Overview
Ubiquiti UVC-Doorbell-Lite-W
Dimensions	137 x 40 x 26.4 mm (5.4 x 1.6 x 1")
IR Night Vision	5 m (16 ft)
Smart Detections (People, Vehicles, Animals)	Yes
Resolution	5MP
Field of View	H: 95.8°, V: 131.2°, D: 175.9°
Audio	Two-way audio
Weatherproofing	IPX5
Mounting	Wall, 20° wedge (Included)
UniFi Application Suite	Protect
Performance
Networking Interface	10/100 MbE port
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate	24 FPS
Resolution	5MP 1920x2560px (3:4)
Sensor	1/2.7" 5MP
Lens	Fixed focal length
Night Mode	Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption	8 W
Supported Voltage Range	37 - 57 V DC
Power Method	PoE (802.3af)
Processor	Dual-core Arm® Cortex®-A7 based chip
Weight	Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz)
Enclosure Material	Polycarbonate, metal
Mount Material	Formed sheet metal
Button	(1) Ring button (1) Factory reset
Ambient Operating Temperature	-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity	20 to 90% noncondensing
NDAA Compliant	Yes
