Ubiquiti Alarm Hub Kit, 32 inputs

Ubiquiti Alarm Hub Kit, 32 inputs

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UP-ALARMHUB

Numero di catalogo: 10975

Garanzia (mesi):

Prezzo

316,56 €

389,37 € IVA inclusa

favoriteLista dei desideri

Descrizione

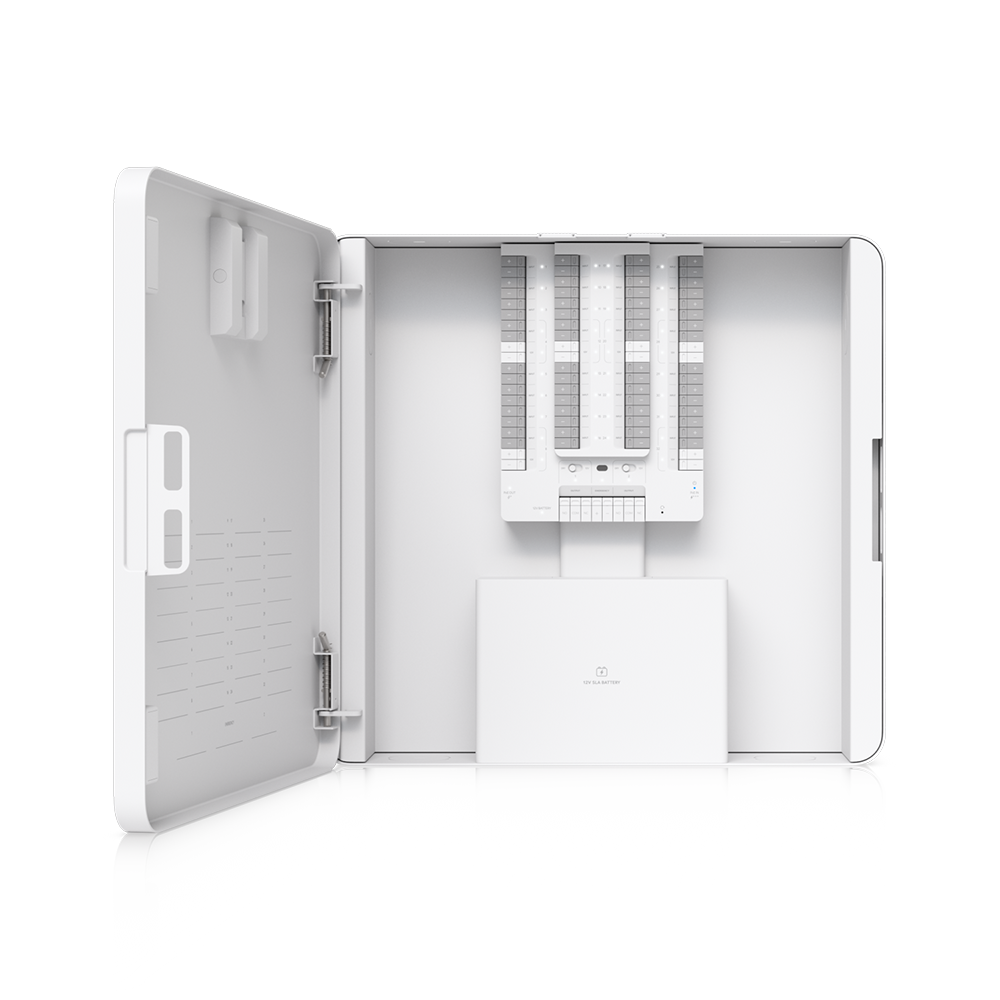

The Ubiquiti UP-AlarmHub is an alarm control panel designed for operation within the UniFi Protect SuperLink system. Inside the enclosure, there is a hub to which you can connect up to 32 sensors and 2 outputs for connecting alarm devices, such as sirens. The offered product can be powered via PoE++ / PoE+++, and it also allows the connection of an external 12 V battery that provides backup power in the event of a power outage or loss of mains electricity. According to the manufacturer's specifications, a 12 V 9 Ah battery is sufficient for approximately 6 hours of operation. The hub also features a PoE power output dedicated to connecting a compatible SuperLink gateway. The output power depends on the input power source: with PoE++ (802.3bt Type 3), it provides 42 W, while with PoE+++ (802.3bt Type 4), it provides 68 W. The enclosure is made of SGCC steel and polycarbonate and is intended for indoor use only. An additional advantage is the built-in door-open sensor, which allows an alarm to be triggered if the control panel enclosure is opened.

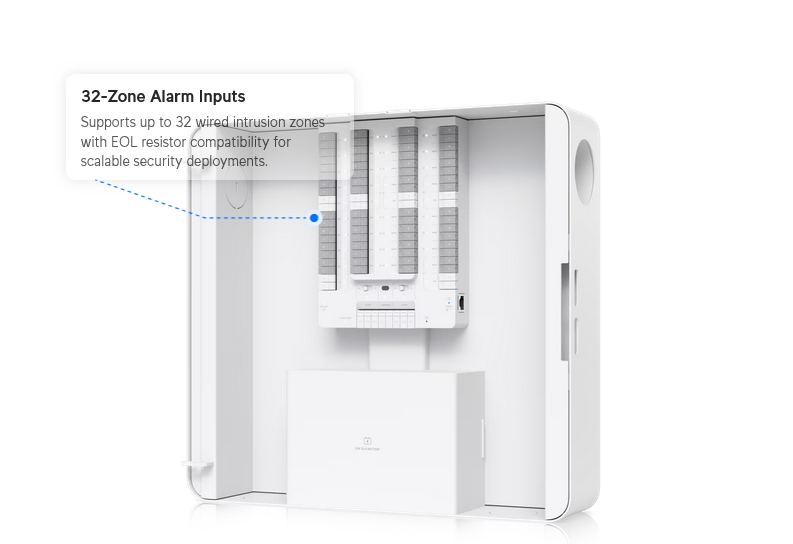

32 Alarm Inputs, Tamper Sensor

The hub is equipped with 32 alarm input terminals for connecting sensors. It has been designed primarily for use with wired sensors. If you want to connect wireless sensors, you need to purchase a SuperLink Gateway separately. The UP-AlarmHub also features a tamper sensor, allowing an alarm to be triggered if someone opens the enclosure door.

PoE Input and Output, Battery Backup Support

The device features a PoE++ (802.3bt Type 3) / PoE+++ (802.3bt Type 4) power input and a PoE+ power output, which is intended for connecting a SuperLink Gateway. The output power depends on the input power source and provides 42 W when powered via PoE++ and 68 W when powered via PoE+++.

Additionally, you can connect a 12 V battery to the UP-AlarmHub to maintain operation in the event of a primary power supply failure.

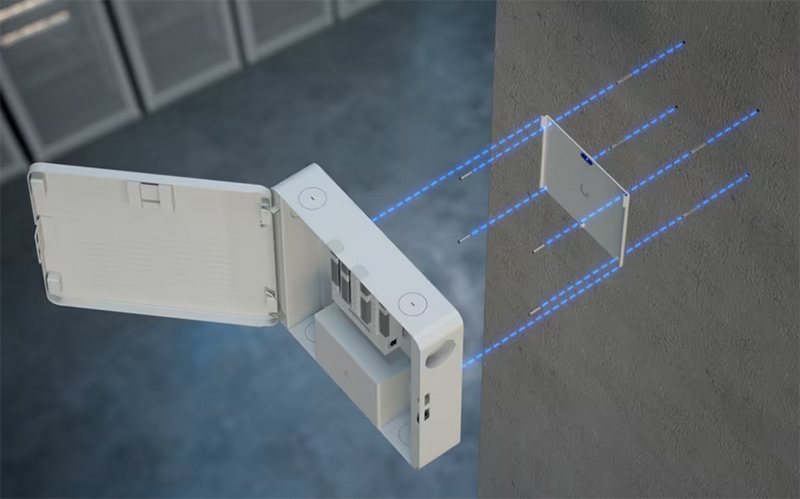

Indoor Installation

The enclosure is made of SGCC steel, while the cover is made of plastic (polycarbonate). The device is designed for indoor wall mounting.

Specifications

Overview
Ubiquiti UP-AlarmHub
Dimensions	379 x 355 x 105 mm (15 x 14 x 4.1")
Input Terminals	(32) Alarm sensor (1) Emergency
Power Method	PoE++/PoE+++ 12V SLA battery
Power Output Availability	PoE+++ input: 68W PoE++ input: 42W
NDAA Compliant	Yes
Mechanical
Weight	Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb)
Enclosure Material	SGCC steel housing with polycarbonate cover
Mount Material	SGCC steel
Mounting	Wall
Hardware
Digital Input	(32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency
Output Relay	(2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A
Aux Power Output	For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total
Indoor and Outdoor Use	Indoor only
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Networking Interface	(1) 10/100 MbE RJ45 port
PoE Interface	(1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W
Max. Power Consumption	90 W
Battery Charge	SLA backup battery, 12V, 0.3A
LEDs	W/B
Buttons	(1) Factory reset (2) Dry/Wet switch
Software
Application Requirements	UniFi Protect: Version 7.0.88 and later Mobile App: UniFi Protect iOS™ version 3.3.0 and later, UniFi Protect Android™ version 3.2.0 and later
