Ubiquiti Enterprise Storage Expansion with 16 drive bays

Ubiquiti Enterprise Storage Expansion with 16 drive bays

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UACC-ESE-16

Numero di catalogo: 11027

Garanzia (mesi):

Prezzo

1 421,39 €

1 748,31 € IVA inclusa

favoriteLista dei desideri

Descrizione

The Ubiquiti Enterprise Storage Expansion is an additional module designed for Enterprise-series recorders and NAS systems. It features 16 2.5"/3.5" drive bays for HDDs and SSDs, significantly increasing the maximum storage capacity of the connected system. The UACC-ESE-16 is housed in a 19-inch rack-mountable chassis with a 3U height. It is powered by two 550 W hot-swappable AC power supply units designed for redundant operation. To connect the module to the main device, an Expansion port (SFF-8644) is used.

Expansion Module for Selected Enterprise Devices

The offered product is an additional module compatible with ENAS and ENVR-Core devices. It expands their capabilities by adding extra hard drive bays. Connectivity is provided via an Expansion port (SFF-8644), which ensures sufficient connection bandwidth. The package includes a 1 m cable.

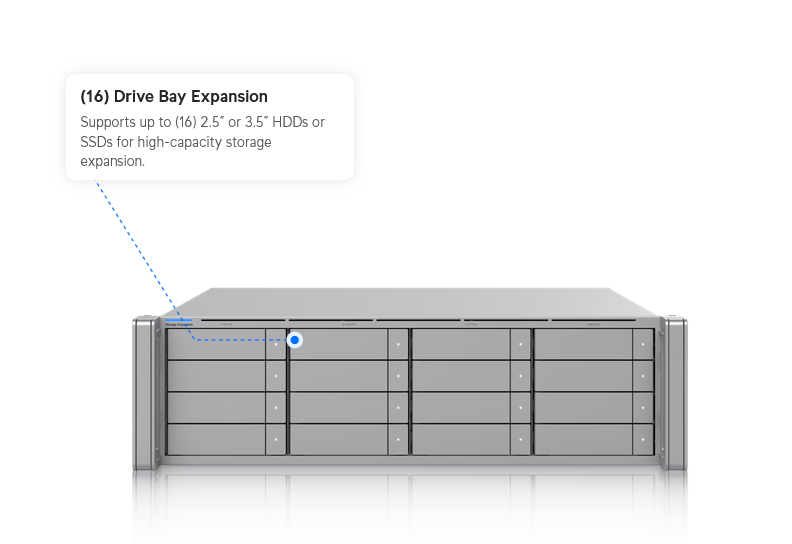

16 Drive Bays

The device is equipped with 16 2.5"/3.5" HDD/SSD drive bays. The disk power budget is up to 500 W.

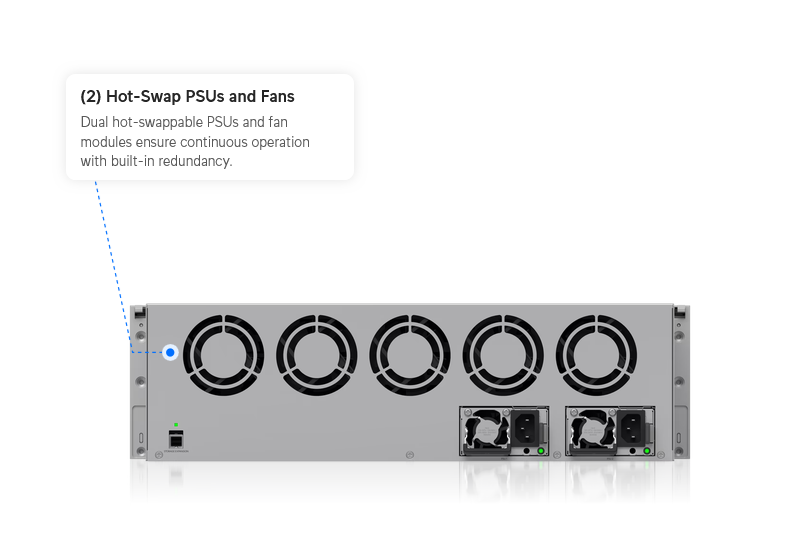

Hot-Swap AC Power Supplies

The package includes two hot-swap power supply modules designed for redundant operation—if one fails, the other automatically takes over. The manufacturer uses 550 W AC/DC power supplies.

Specifications

Overview
Ubiquiti UACC-ESE-16
Dimensions	481.4 x 480 x 132 mm (19 x 18.9 x 5.2")
Storage Capacity	(16) 2.5"/3.5" drive bays
Expansion Port	1x SFF-8644 (24G) (1m cable is included)
Power Redundancy	Yes
Form Factor	Rack mount (3U)
Hardware
Hard Drive Capacity	(16) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives	500 W
Max. Power Consumption	550 W
Power Method	(2) AC input, Hot-swappable power modules
Power Supply	(2) Hot-swappable AC/DC 550W power modules
Management	Master console
Weight	15.5 kg (34.2 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42")
Faceplate	Not included
LEDs	HDD System CRPS Expansion Port
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
