Ubiquiti Fail-Safe Strike Lock 15mm
Produttore: Ubiquiti Networks
Codice prodotto: UQ-UA-LOCK-ST-SF-15
Numero di catalogo: 11058
Garanzia (mesi):
Prezzo
73,44 €
90,33 € IVA inclusa
favoriteLista dei desideri

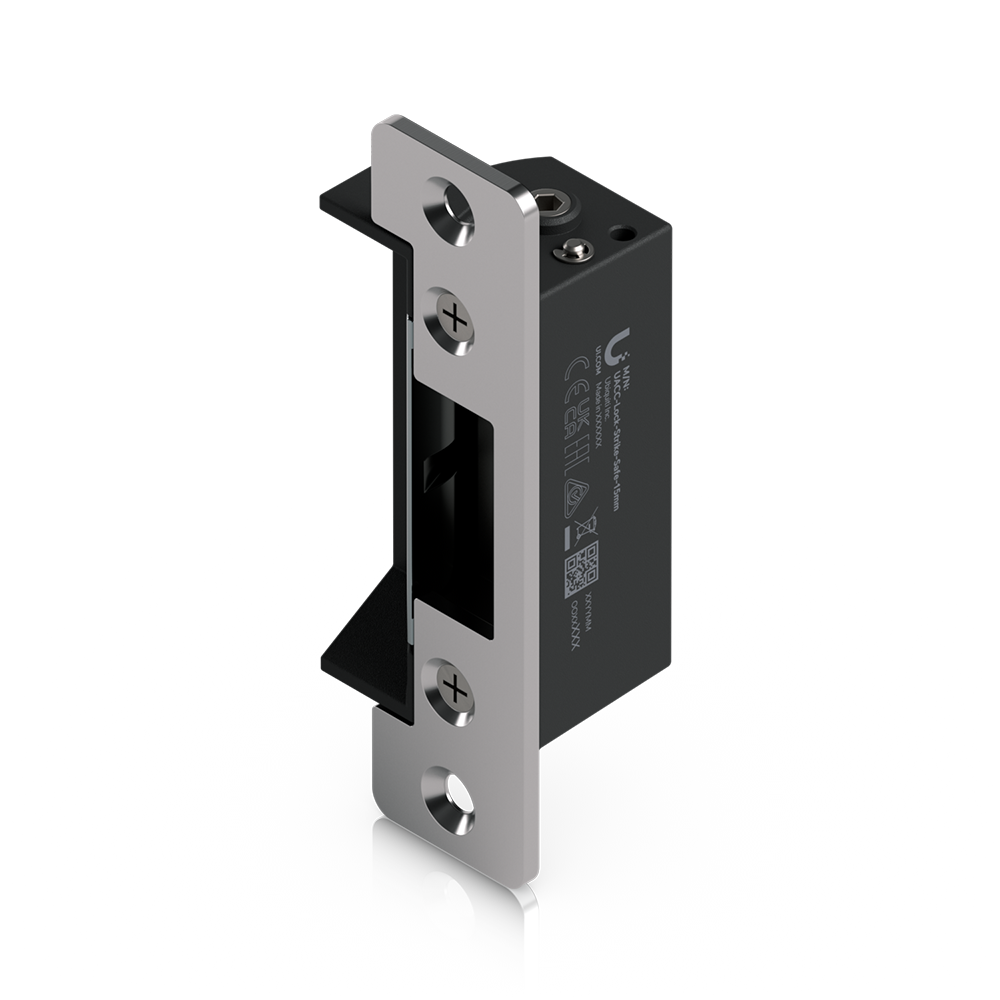

15 mm Fail-Safe Electric Strike

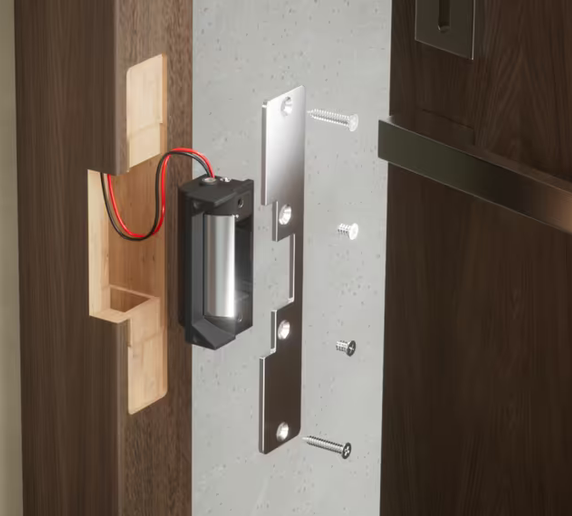

The Ubiquiti UACC-Lock-Strike-Safe-15mm is an electric strike lock designed for installation in standard door frames. It features a fail-safe design, meaning the lock unlocks automatically in the event of a power failure, making it suitable for use on emergency exit routes. The lock is compatible with both wooden and metal doors and can withstand a holding force of up to 1,200 kg. The package includes two faceplates of different lengths, providing greater installation flexibility.
Specifications
| Ubiquiti UACC-Lock-Strike-Safe-15mm | |
| Overview | |
|---|---|
| Dimensions |
Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
| Weight |
Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure Material |
Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 1200 kg (2,645 lb) |
| Current Power | 400 mA ± 10% |
| Support Voltage Range | 12 V DC ± 10% |
| Wiring |
(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) |
| Mounting | Door frame recess mount |
| Door Status Contact |
Type: Dry contact Logic: Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short Rating: Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
