Ubiquiti SFP Wizard

Ubiquiti SFP Wizard

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UACC-SFP-WIZARD

Numero di catalogo: 11079

Garanzia (mesi):

Prezzo

44,63 €

54,89 € IVA inclusa

favoriteLista dei desideri

Descrizione

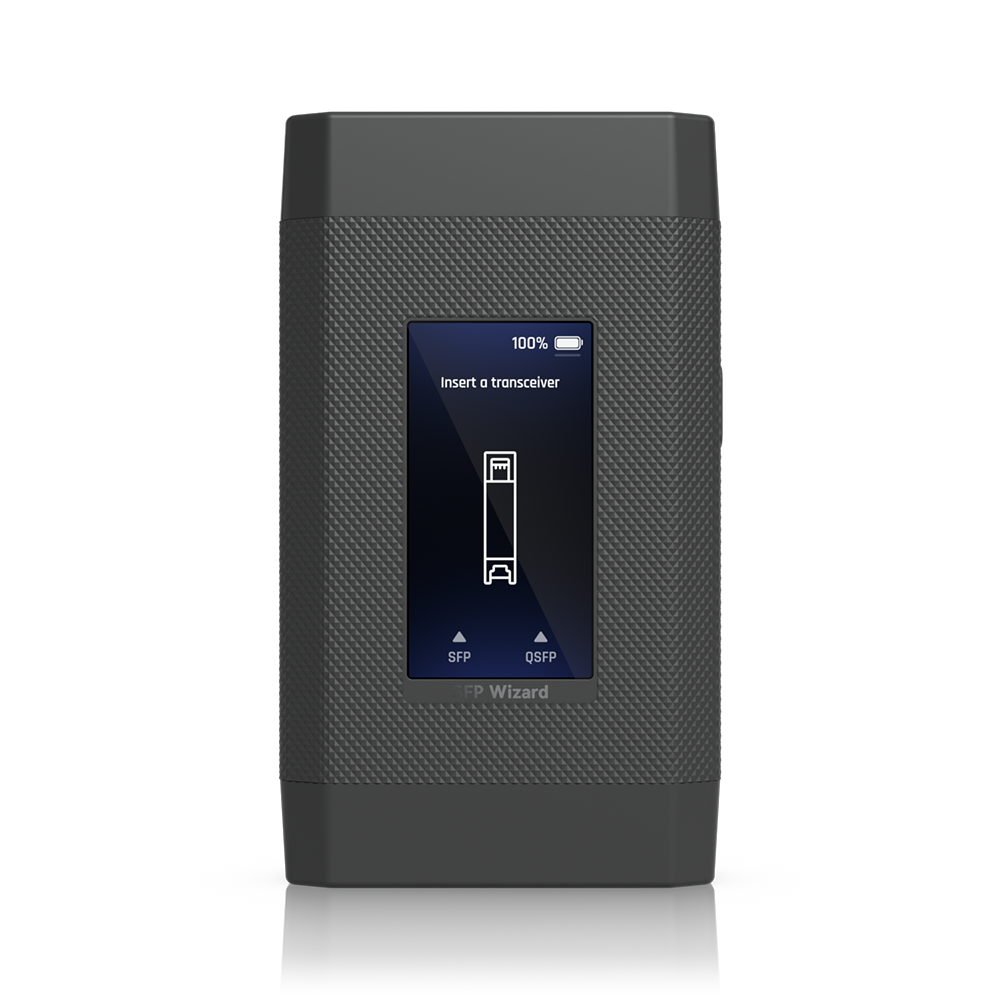

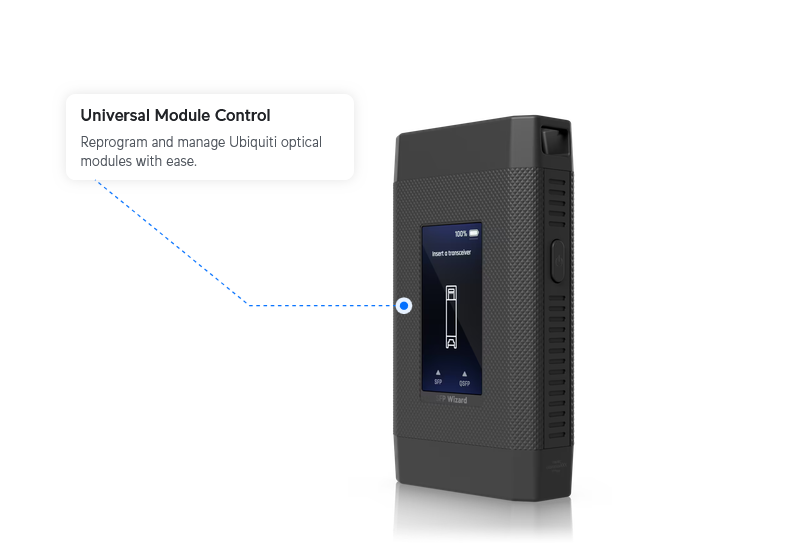

Ubiquiti Optical Module Programmer

The offered product is a programmer that allows you to reprogram Ubiquiti optical modules. You can copy the profile from a transceiver of another manufacturer and then transfer it to a Ubiquiti module. This makes it possible to use identical transceivers throughout the entire network, even when using network devices from different manufacturers.

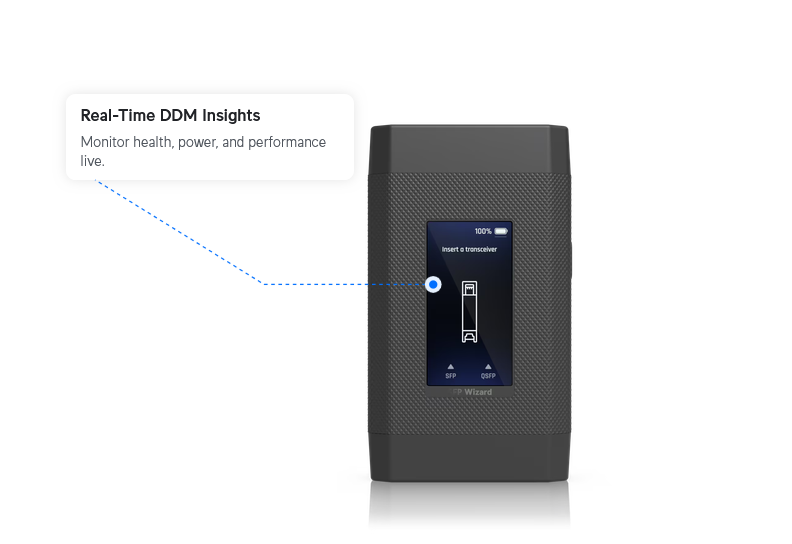

Live Diagnostics

An additional advantage is the ability to diagnose connected transceivers. SFP Wizard allows you to display real-time information read from DDM, such as operating status, power levels, and performance parameters. In many cases, this makes it possible to identify issues with the module, for example when you suspect that it is damaged.

Specifications

Mechanical
Ubiquiti UACC-SFP-Wizard
Dimensions	90.8 x 52.1 x 20.2 mm (3.6 x 2.1 x 0.8")
Weight	84 g (3 oz)
Enclosure Material	Polycarbonate
Hardware
Networking Interface	BLE
Power Method	Li-ion battery
Battery Life	Up to 75 minutes of continuous SFP transceiver diagnostics with laser on, or 35 minutes with QSFP transceivers
Power Supply	Rechargeable Li-ion battery, 3.7V DC, 300mAh
Supported Voltage Range	USB-C: 5 V DC / 0,5 A
Max. Power Consumption	0.6 W
Supported Form Factor	SFP, SFP+, SFP28, QSFP+, QSFP28
LCM Display	1.9" touchscreen
Buttons	(1) Power
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	Yes
Software
Appliation Requirements	Mobile App: UniFi iOS™ version 10.29.1 and later UniFi Android™ version 10.30.2 and later
