Ubiquiti Device Bridge IoT wireless bridge for IoT devices

Ubiquiti Device Bridge IoT wireless bridge for IoT devices

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UDB-IOT

Numero di catalogo: 11104

Garanzia (mesi):

Prezzo

43,52 €

53,53 € IVA inclusa

favoriteLista dei desideri

Descrizione

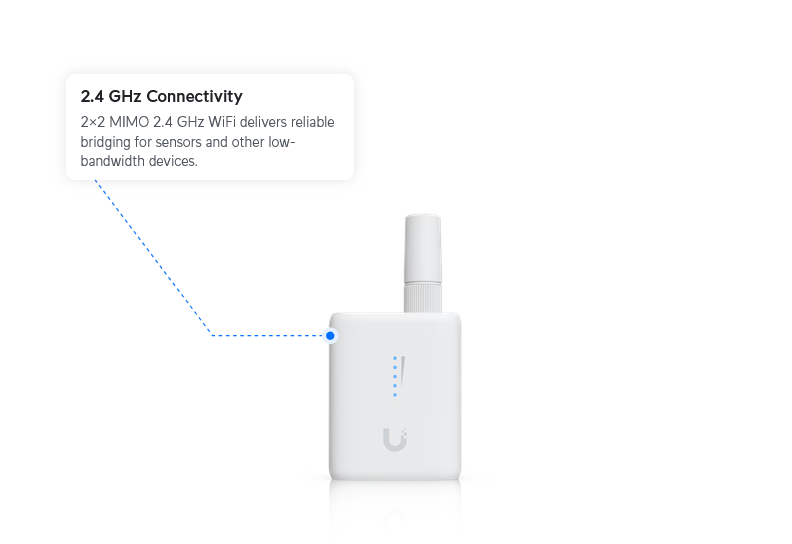

2.4 GHz Wireless Bridge

The Ubiquiti UDB-IoT is a wireless bridge that allows you to connect wired devices that do not support Wi-Fi, such as various sensors or printers. Since it operates exclusively in the 2.4 GHz band, it is best suited for connecting devices that do not require high throughput. According to the manufacturer, its primary purpose is to connect IoT devices to a UniFi wireless network.

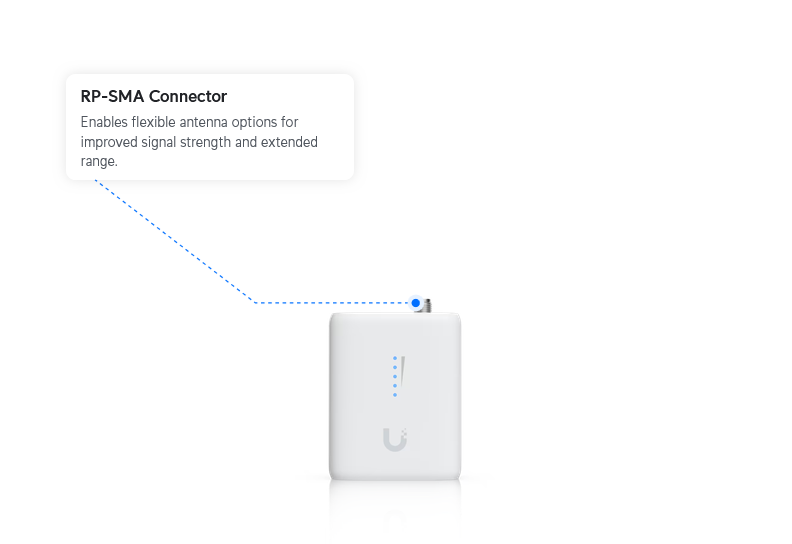

RP-SMA Antenna Connector

The device features an RP-SMA antenna connector, allowing the included antenna to be replaced. If needed, you can install a high-gain antenna to significantly extend the wireless range of the UDB-IoT.

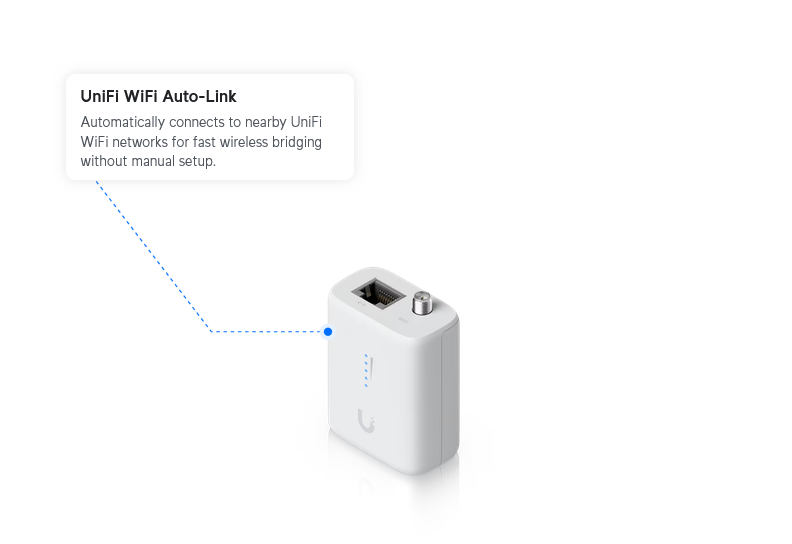

UniFi Auto-Link Function

Thanks to the UniFi Auto-Link feature, the device automatically connects to a nearby UniFi wireless network without requiring any manual configuration.

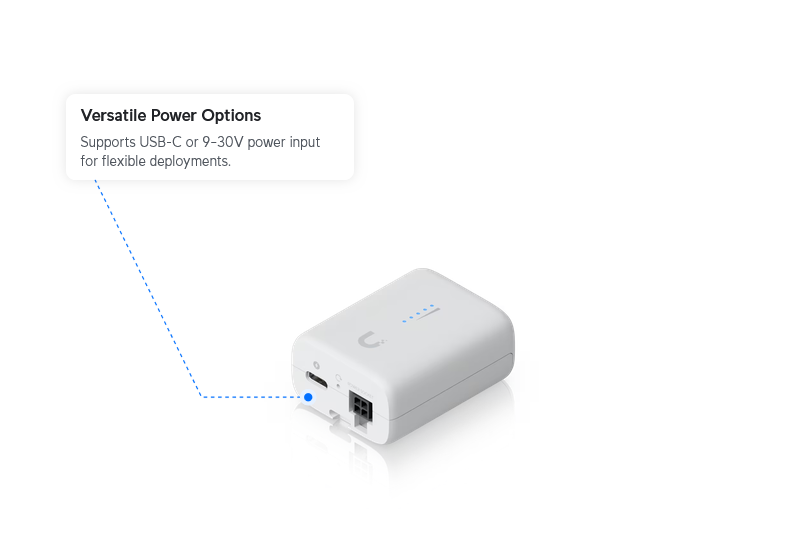

Dual Power Input Options

The UDB-IoT can be powered either through its USB-C port (5 V DC) or via the 4-pin DC connector. The latter option supports a wide input voltage range of 9–30 V DC, making it easy to adapt the device to the available local power source.

Specifications

Overview
Ubiquiti UDB-IoT
Dimensions	Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1") With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1")
Wi-Fi Standard	Wi-FI 4
Spatial Streams	2
Mounting Locations	Wall, DIN rail
Mounting	Included mount
Power Method	USB Type-C (5V DC, 1A) 4-pin DC (9–30V DC)
Performance
MIMO	2x2 MIMO
Max. Data Rate	300 Mb/s (BW40)
Antenna Gain	Internal: 4dBi External omni: 3dBi
Max. TX Power	20 dBm
Supported Data Rates	802.11m: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Security	WPA2 AES
Hardware
Max. Power Consumption	2.3 W
Supported Voltage Range	USB-C: 5 V DC Socket: 9 - 30 V DC
Networking Interface	(1) 10/100M RJ45 port
Antennas	(1) Internal antenna (1) RP-SMA connector for external omni-antenna
Management	Wi-Fi
Channel Bandwidth	20 / 40 MHz
Weight	Device: 45 g (1.6 oz) With external antenna: 53 g (1.9 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Button	(1) Factory reset
LEDs	System: (4) Blue: signal (1) White/blue: indicator
NDAA Compliant	Yes
Ambient Operating Temperature	-10 to 50° C (14 to 122° F)
Ambient Operating Humidity	5 to 95% noncondensing
