Ubiquiti Fail-Safe Bolt Lock
Produttore: Ubiquiti Networks
Codice prodotto: UQ-UA-LOCK-BOLT-SAFE
Numero di catalogo: 11134
Garanzia (mesi):
Prezzo
81,87 €
100,70 € IVA inclusa
favoriteLista dei desideri

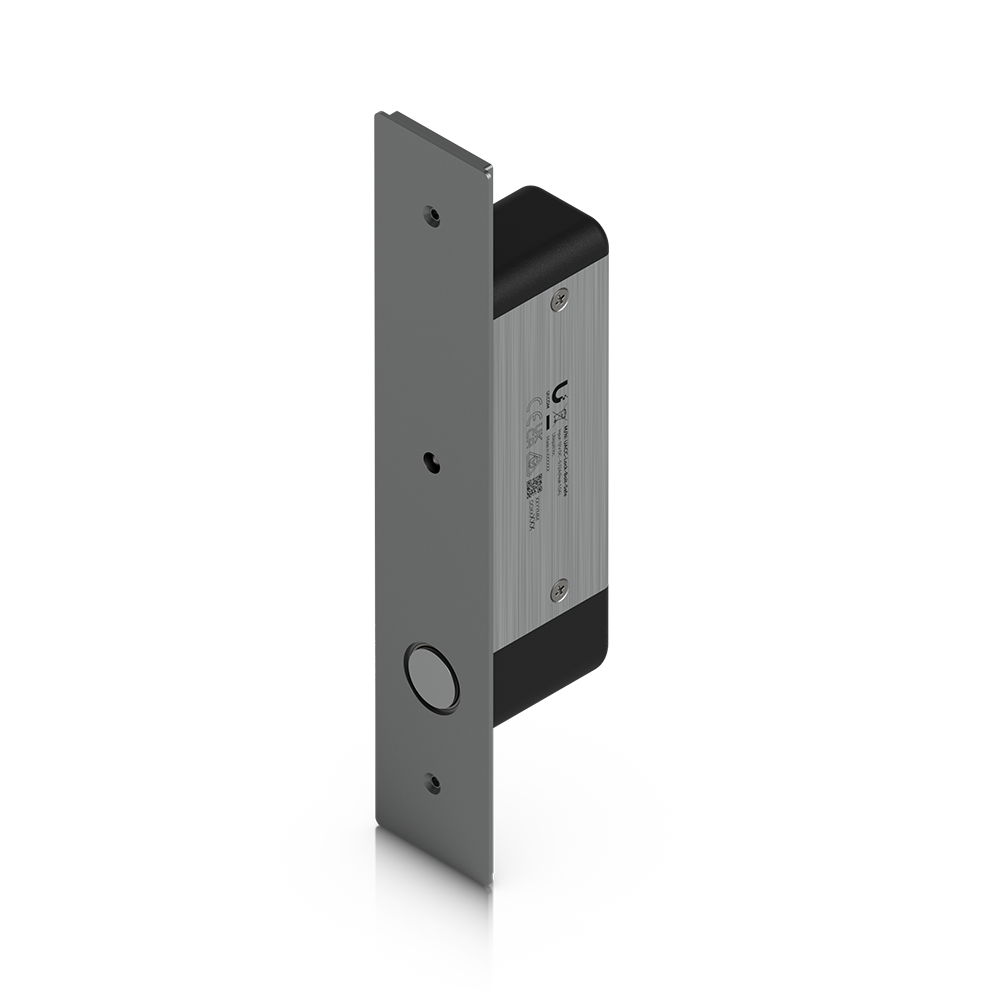

Electric Bolt Lock (Reversible / Fail-Safe)
The Ubiquiti UACC-Lock-Bolt-Secure is an electric bolt lock. It is designed for installation at the top of the door frame; when the door is closed, the bolt extends from the lock and secures the door. The device can be used with wooden or metal doors, and the necessary mounting accessories are included in the set.
It is a fail-safe lock – it unlocks in the event of a power failure, making it suitable for use on emergency exit routes.
Specifications
| Ubiquiti UACC-Lock-Bolt-Safe | |
| Overview | |
|---|---|
| Dimensions |
Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1") |
| Weight |
Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz) |
| Enclosure Material |
Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy |
| Lock Type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| DPS | Embedded |
| Current Power | Max. 900mA |
| Support Voltage Range | 12 V DC ±10% |
| Wiring |
(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange) |
| Mounting | Door frame recess mount |
| LED Indicator |
Red: locked Green: unlocked & power indicator |
| Type | Dry contact |
| Logic |
Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.5A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
