RF Elements Smart Bracket for Wave AP Gen2

RF Elements Smart Bracket for Wave AP Gen2

Produttore: RF Elements

Codice prodotto: RFE-BR-WG2

Numero di catalogo: 11171

Garanzia (mesi):

Prezzo

29,01 €

35,68 € IVA inclusa

favoriteLista dei desideri

Descrizione

Mount for Wave AP Gen2

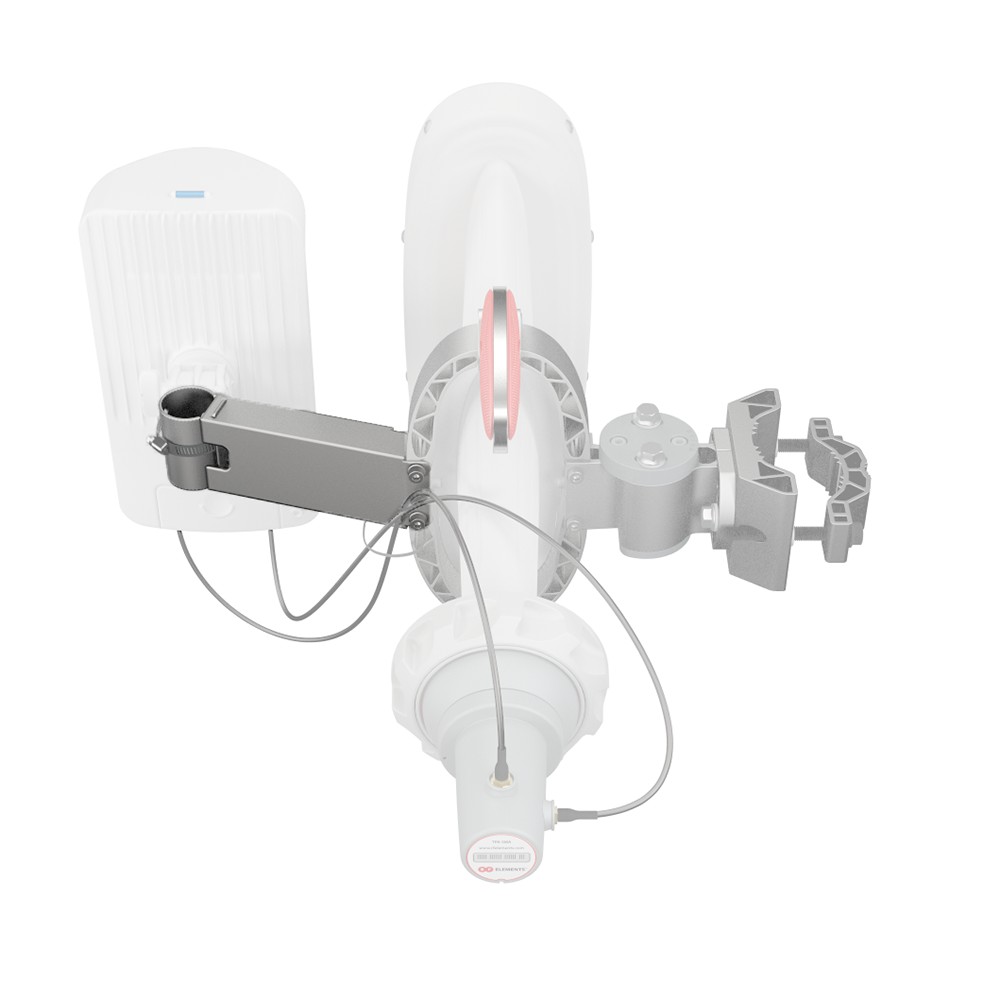

RF Elements BR-WG2 is a mount designed to connect the Wave AP Gen2 radio to asymmetric horn antennas. The mount allows you to install the radio directly on the antenna, significantly simplifying subsequent alignment.

Compatible with Multiple Antennas

The device is compatible with asymmetric horn antennas from the 6 GHz AH-WB series, the 5 GHz AH-TP series, and all 4x4 models. You can use the radio with antennas you already own, not just new models.

Expand the Capabilities of Wave AP Gen2

By using an additional antenna in combination with Wave AP Gen2, you can significantly improve the quality of the 5 GHz backup link. It increases the range and provides significantly better performance than the integrated antenna.

Specifications

General
RF Elements BR-WG2
Materials	Extruded Aluminum Profile with passivated surface, Stainless Steel hardware
Flame Rating	UL 94 HB
Provided Mounting Diameter	40 mm (1.6 inch)
Temperature	-30°C to +55°C (-22°F to +131°F)
Wind Survival	180 km/h (110 mph)
Mechanical tilt	Provided by the base antenna
Compatible antennas
5 GHz Horn Antennas	2x2: AH90-TP, AH2030-TP, AH60-TP, AH20-CC, AH30-CC, AH60-CC, AH90-CC 4x4: AH90-4x4-SMA, AH60-4x4-SMA
6 GHz Wideband Horn Antennas	2x2: AH90WB, AH60WB, AH45WB 4x4: AH90WB-4x4-SMA, AH60WB-4x4-SMA
Mounted device	UI Wave AP Gen 2 Any device that fits mounting tube provided by the bracket. the weight limit 3 kg / 7 lbs
Physical
Package Contains	BR-WG2 Bracket Mounting Hardware
Weight	0.25 kg
Dimenions	200 x 70 x 100 mm
