Opton outdoor Rack 19" cabinet, 18U, free-standing (61x116x61)

Opton outdoor Rack 19" cabinet, 18U, free-standing (61x116x61)

Produttore: Opton

Codice prodotto: OP-SZ-KAN-61/116/61

Numero di catalogo: 6080

Garanzia (mesi):

Prezzo

328,40 €

403,93 € IVA inclusa

favoriteLista dei desideri

Descrizione

Pallet shipping
Due to the weight and dimensions, this product requires pallet shipping.

19" 18U Rack

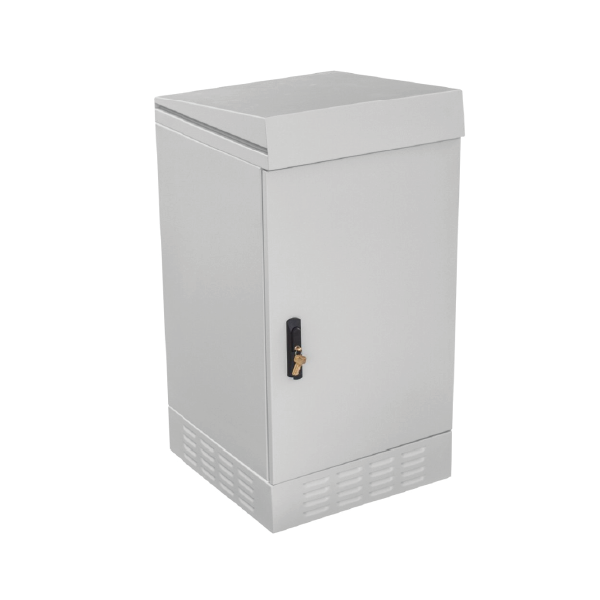

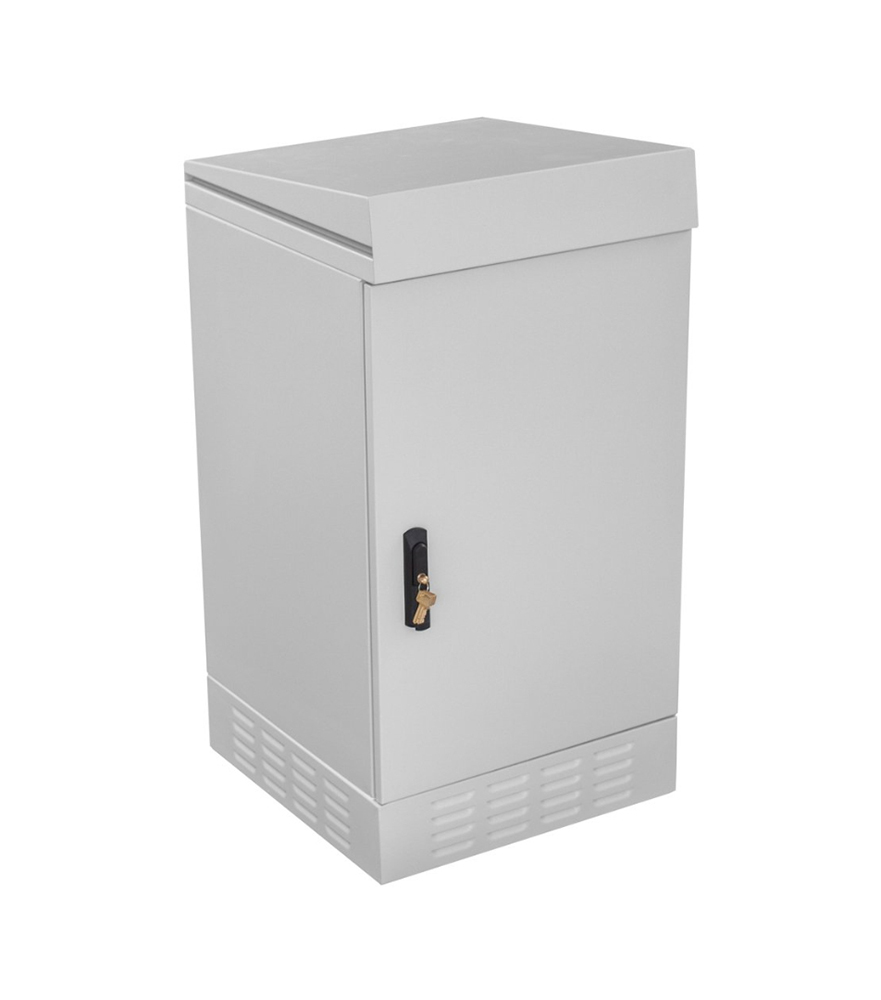

The offered product is a telecommunications cabinet in the 19" Rack standard. Its external dimensions are 61 x 116 x 61 cm, with a height of 18U. It features a single-shell and single-chamber construction, made of steel sheet with a Magnelis coating. In the lower section, there are 6 holes (38 mm diameter) for cable routing. Inside the cabinet, there are 4 rack rails with a mounting depth of 420 mm.

Freestanding, for Outdoor Use

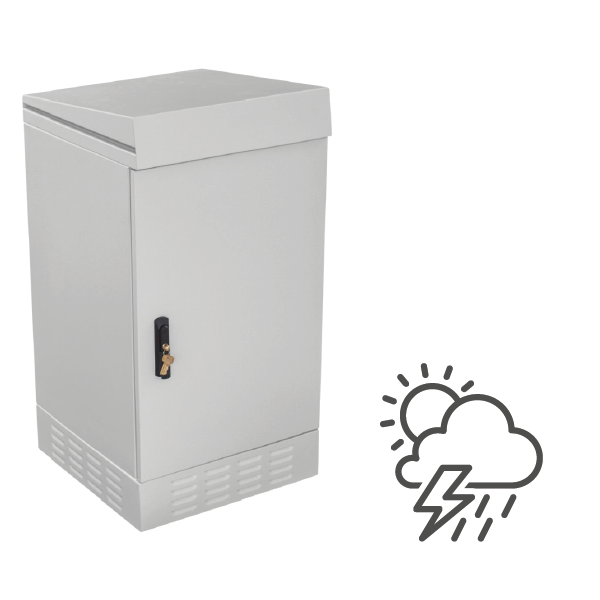

The cabinet features an IP54 protection rating and is designed for outdoor use. The construction is protected against the ingress of water and dust. It is a freestanding cabinet that can be appropriately anchored to the ground (e.g., concrete), mounted on a telecommunications manhole, or placed on a pedestal (sold separately).

Solid, Single-Leaf Door, Mounting Space for Active Cooling

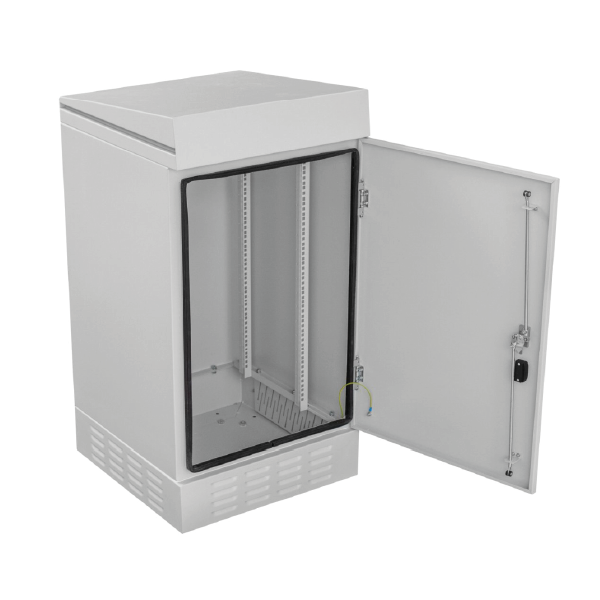

The manufacturer has utilized a solid, single-leaf door that opens up to 120°. The cabinet does not have any additional removable side panels. In the side parts of the base, there are 4 ventilation holes (144 mm high) providing passive ventilation. Additionally, 4 mounting spots for fans (125 mm diameter) are provided in the upper section — these can be purchased separately if active cooling is required. The door is secured with a patent lock installed in a swing handle and features a three-point locking system.

Specification

Opton SZ-KAN-61/116/61
Dimensions (W x H x D)	610 x 1160 x 610 mm
Rack Standard	19"
Height	18U
Mounting Depth	420 mm
Number of Mounting Rails	2 at the front, 2 at the back
Cable Entries	Knockouts for self-removal
Cable Entry Diameter	38 mm (6 entries at the bottom)
Door Type	Single-leaf, solid
Removable Side Panels	No
Active Ventilation	Provision for mounting 4 fans (125 mm diameter) in the top panel (sold separately)
Passive Ventilation	4 ventilation holes, 144 mm high (on the sides of the base)
Grounding	Door, roof, base
Mounting Type	Outdoor, freestanding
Operating Temperature Range	-40°C to 70°C
Protection Rating	IP54
Mechanical Resistance	IK10
Flammability Class	V0 according to UL 94
Weight	55 kg
Construction	Powder-coated steel sheet with Magnelis coating
Color	RAL7035
