Opton voltage distribution panel / DIN rail for rack 19" cabinets 3U
Prezzo
18,99 €
23,36 € IVA inclusa
favoriteLista dei desideri

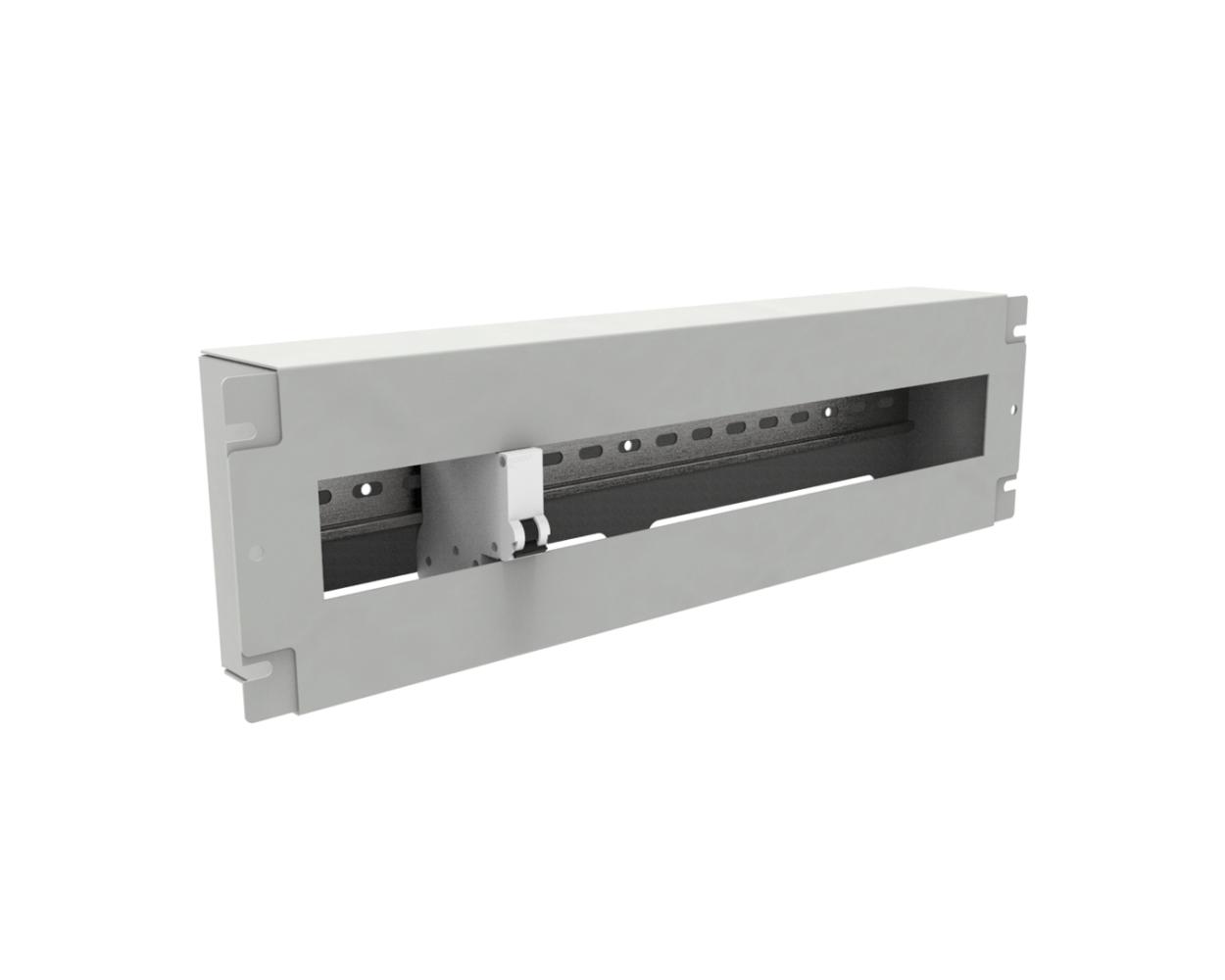

Power Distribution Panel (3U)
The offered product is a 3U high panel designed for use in 19" Rack cabinets. Inside, it features a DIN rail (TH35) with a capacity of up to 22 modules. The front is equipped with a removable cover that protects users from accidental contact with the modules mounted in the panel. Both elements are connected by a grounding wire. The entire unit is made of steel sheet with a Magnelis coating.
Specification
| Opton PANEL-19-3U | |
| Dimensions (W x H x D) | 483 x 132 x 70 mm |
| Height | 3U |
| Maximum number of modules | 22 |
| Standard | 35 mm DIN rail (EN 60715) |
| Rack mounting type | Front / Rear |
| Mechanical protection | IK10 |
| Flammability class | V0 according to UL 94 |
| Weight | 1.5 kg |
| Construction | Powder-coated Magnelis steel sheet |
| Color | RAL7035 |
