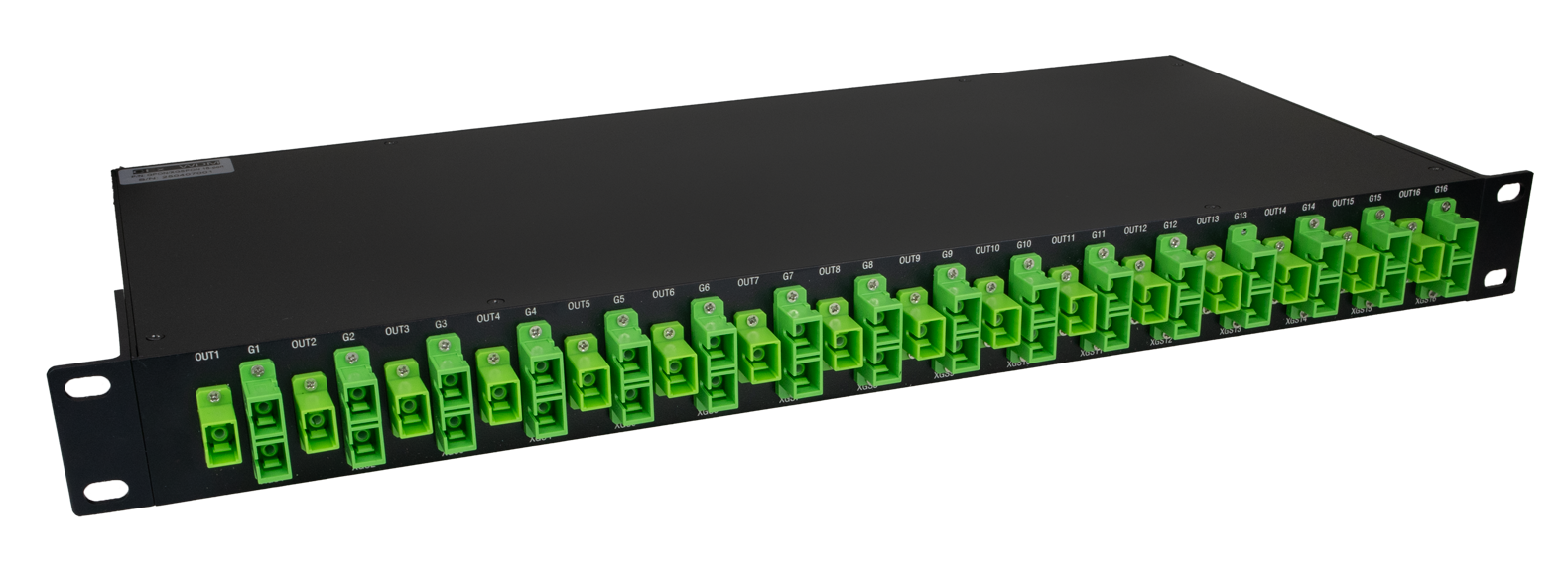

Opton CEX-A-R19-16SA GPON&XGS-PON CEx Multiplexer 16-port SC/APC, Rack 19"

Opton CEX-A-R19-16SA GPON&XGS-PON CEx Multiplexer 16-port SC/APC, Rack 19"

Produttore: Opton

Codice prodotto: OP-CEX-A-R19-16SA

Numero di catalogo: 10392

Garanzia (mesi):

Prezzo

433,08 €

532,69 € IVA inclusa

favoriteLista dei desideri

Descrizione

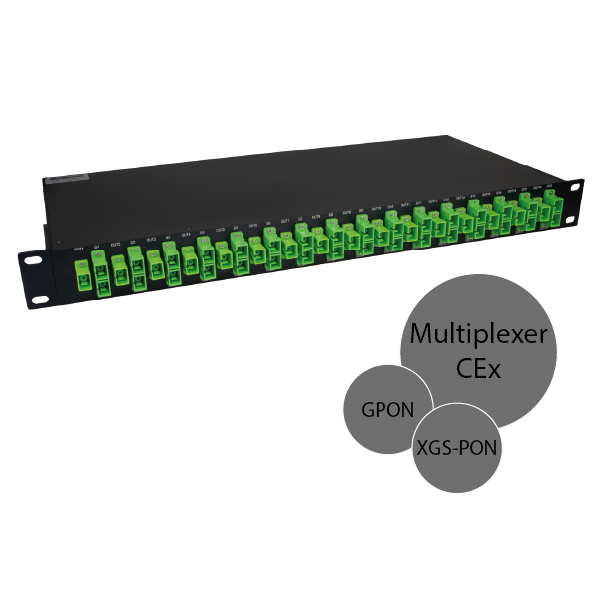

CEx GPON + XGS-PON Multiplexer

The offered product is a CEx multiplexer that enables the combination of different optical transmissions — in this case, GPON and XGS-PON. The wavelength range for GPON transmission is 1290–1330 nm and 1480–1500 nm, while for XGS-PON it is 1260–1280 nm and 1575–1580 nm. The multiplexer can also be used to separate a specific transmission from the fiber. For example, if you're using a Combo card, you can isolate only one of the transmissions and connect it to an already utilized fiber.

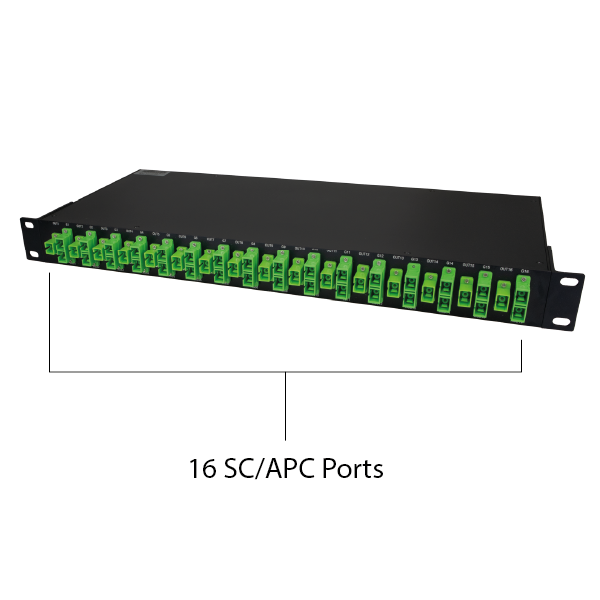

16 SC/APC Ports, 19" Rack-Mount Enclosure

The multiplexer features a total of 16 ports—outputs with the combined, mixed signal. Each output port includes 2 additional input connectors for GPON and XGS-PON signals. The entire unit is housed in an enclosure designed for installation in a 19" rack cabinet.

Specifications

GPON transmission
Opton CEX-A-R19-16SA
Wavelength	1290 - 1330 nm 1480 - 1500 nm
Max insertion loss	0,8 dB
Isolation	≥30dB
XGS-PON transmission
Wavelength	1260 - 1280 nm 1575 - 1580 nm
Max insertion loss	1,1 dB
Isolation	≥30dB
Others
Port quantity	16
Chassis	Rack 19" (1U)
Optical connectors	SC/APC
PDL	≤ 0.2 dB
Directivity	≥ 50 dB
Return Loss	≥ 50 dB
Operating Temperature	-10° ~ 70° C
Storage Temperature	-40° ~ 85° C
