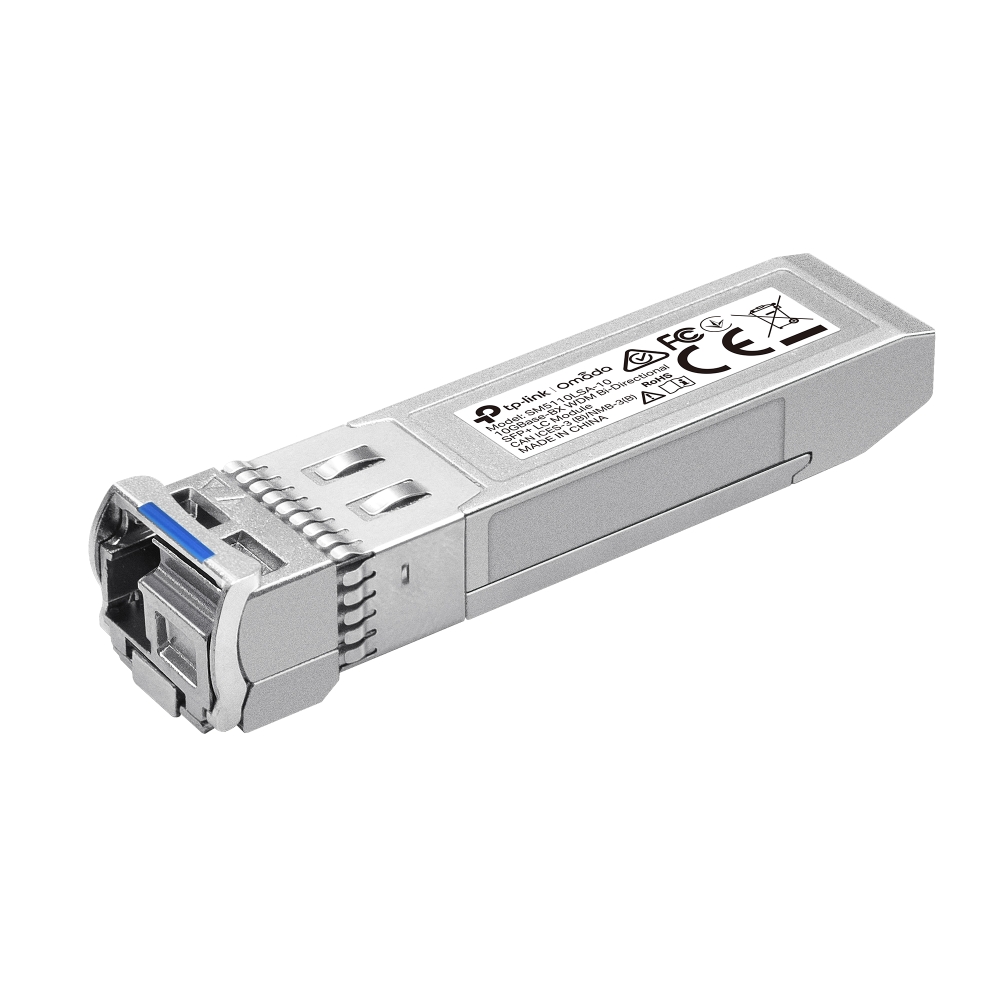

TP-Link SM5110LSA-10 SFP+ transceiver 10Gb/s, SM LC, 1330 nm, 10 km

TP-Link SM5110LSA-10 SFP+ transceiver 10Gb/s, SM LC, 1330 nm, 10 km

Produttore: TP-Link

Codice prodotto: TL-SM5110LSA-10

Numero di catalogo: 10711

Garanzia (mesi):

Prezzo

31,87 €

39,20 € IVA inclusa

favoriteLista dei desideri

Descrizione

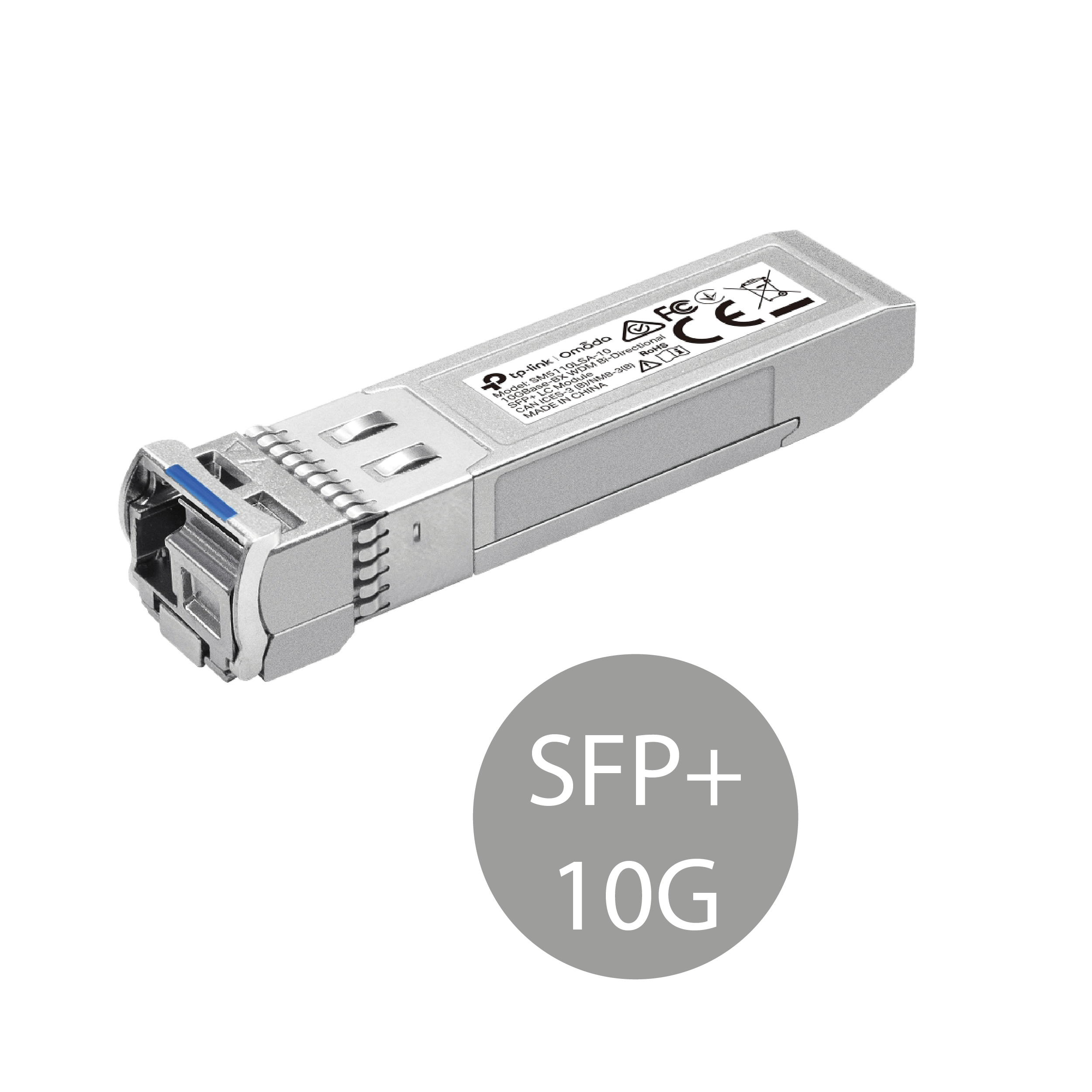

Omada SFP+ 10G Bi-directional Module

The offered product is an optical transceiver in the SFP+ standard, providing a throughput of up to 10 Gbps. It is designed for use with TP-Link Omada branded devices to ensure the best possible compatibility. The SFP+ module is a key component for building high-performance 10G Ethernet connections.

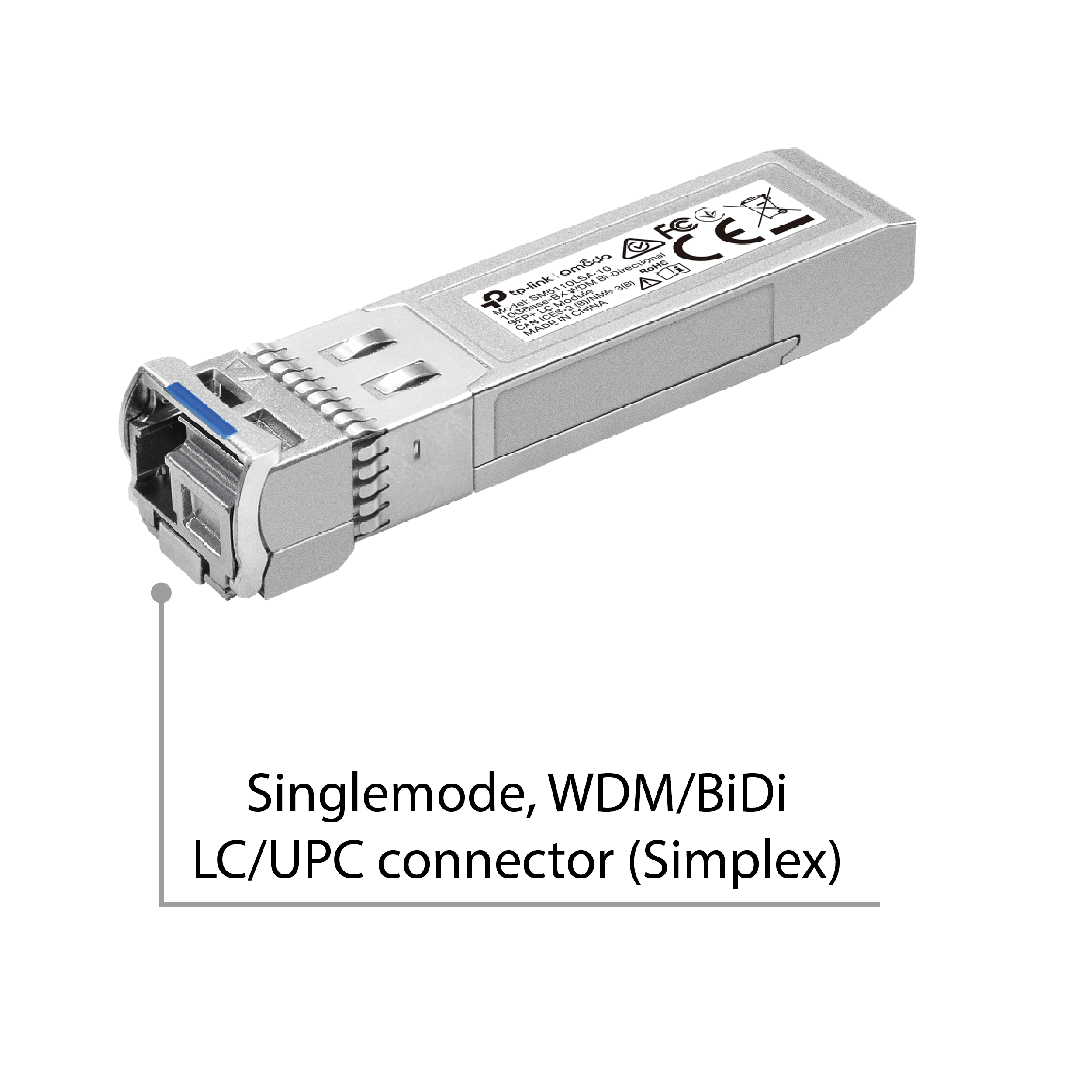

Singlemode, WDM/BiDi, LC/UPC Connector (Simplex)

The transceiver is adapted for operation with Singlemode Fiber (SMF) optic cables and utilizes WDM (Wavelength Division Multiplexing) technology, known as BiDi (Bi-directional), which allows data to be sent and received over a single fiber. Transmission (Tx) occurs at a wavelength of 1330 nm, and reception (Rx) at 1270 nm. The maximum range is typically up to 10 km, and the manufacturer has used a standard LC/UPC Simplex (single) connector.

Specifications

Transceiver
Tp-Link SM5110LSA-10
Standards and Protocols	IEEE 802.3ae SFF 8431, SFF 8432, SFF-8472
Wavelength	TX: 1330nm RX: 1270nm
Power Supply	3.3V
Fiber Type	Single-mode 9μm/125μm
Cable Length	10km
Data Rate	10.3125 Gbps
Connector	LC/UPC
Environment	Operating Temperature: 0?~70? (32?~158?) Storage Temperature: -40?~85? (-40?~185?) Operating Humidity: 10%~90% RH, non-condensing Storage Humidity: 5%~90% RH, non-condensing
Hardware Features
DDM	Yes
Hot Swap	Yes
Dimensions (W x D x H)	57 * 14 * 12.0 mm (2.24 * 0.55 * 0.47 inches)
Package Contents
Package Contents	SM5110LSA-10 Installation Guide
