Opton outdoor Rack 19" cabinet, 2x 25U, free-standing (116x145x63)
Prezzo
1 016,85 €
1 250,73 € IVA inclusa
favoriteLista dei desideri
Pallet shipping
Due to the weight and dimensions, this item requires pallet shipping. The shipping cost will be calculated individually.
Due to the weight and dimensions, this item requires pallet shipping. The shipping cost will be calculated individually.
19" 2x 25U Rack

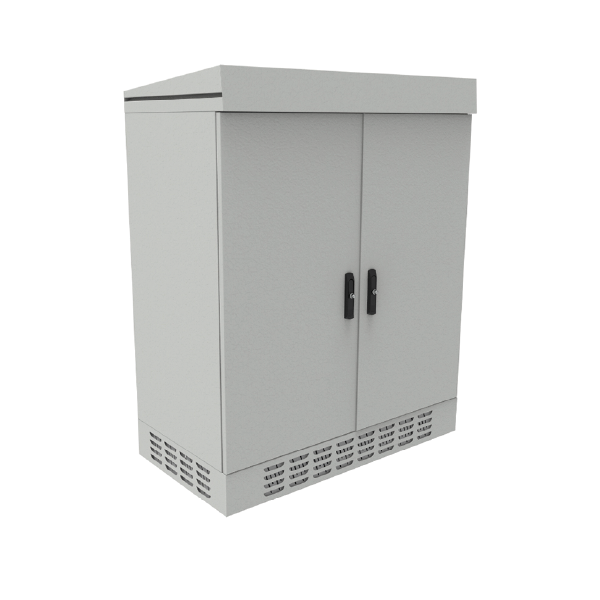

The offered product is a telecommunications cabinet in the 19" Rack standard, consisting of two independent sections, each with a height of 25U. The external dimensions of the entire cabinet are 116 x 145 x 63 cm. The SZ-KAN-116/145/63 features a single-shell and two-chamber construction, made of steel sheet with a Magnelis coating. In the lower part, there are 14 holes (38 mm diameter) through which you can route cables. Each module features 4 rack rails (two at the front, two at the back), and the mounting depth is 410 mm.

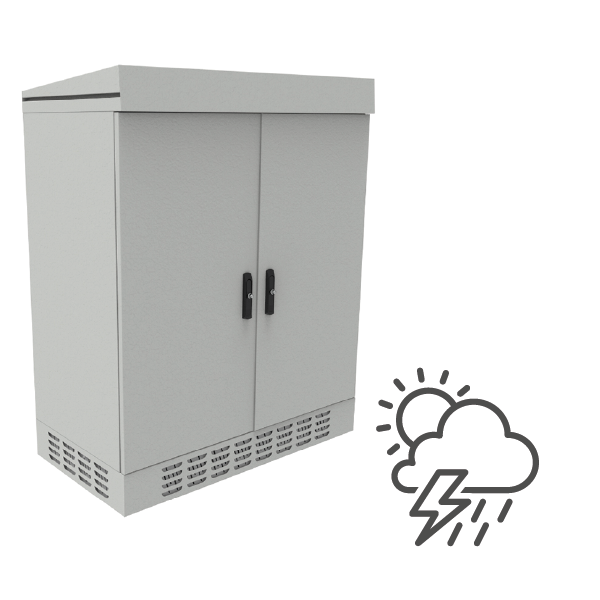

Freestanding, for Outdoor Use
The cabinet features an IP54 protection rating and is designed for outdoor use. The construction is protected against the ingress of water and dust. It is a freestanding cabinet that can be appropriately anchored to the ground (e.g., concrete), mounted on a telecommunications manhole, or placed on a pedestal (sold separately).

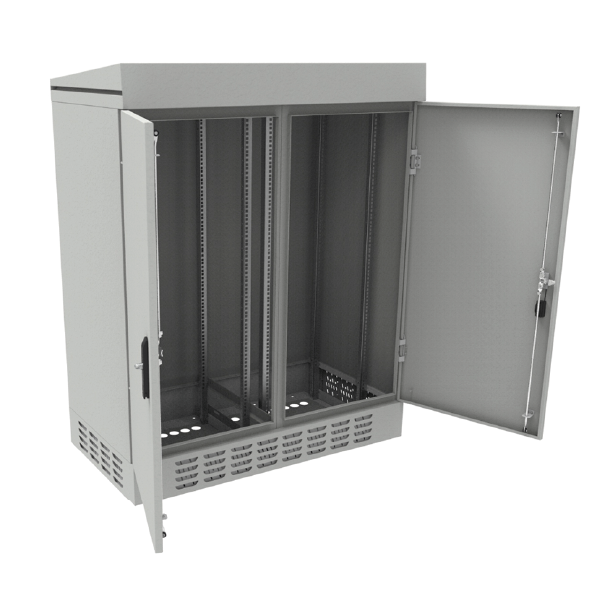

Solid, Double-Leaf Doors with Active Cooling Mounting Options
The manufacturer has utilized solid, double-leaf doors that open up to 120°. The cabinet does not have any additional removable side panels. In the side parts of the base, there are 4 ventilation holes (144 mm high) providing passive ventilation. Additionally, 4 spots are provided in the upper section for mounting fans (125 mm diameter) — these can be purchased separately if active cooling is required. The doors are secured with a patent lock installed in a swing handle and feature a three-point locking system.
Specification
| Opton SZ-KAN-116/145/63 | |
| Dimensions (W x H x D) | 1160 x 1450 x 630 mm |
| Rack Standard | 19" |
| Height | 50U (2x 25U) |
| Mounting Depth | 410 mm |
| Number of Mounting Rails | 2 at the front, 2 at the back (per module) |
| Cable Entries | Knockouts for self-removal |
| Cable Entry Diameter | 38 mm (14 entries at the bottom) |
| Door Type | Double-leaf, solid |
| Removable Side Panels | No |
| Active Ventilation | Provision for mounting 4 fans (125 mm diameter) in the top panel (sold separately) |
| Passive Ventilation | 4 ventilation holes, 144 mm high (on the sides of the base) |
| Grounding | Doors, roof, base |
| Mounting Type | Outdoor, freestanding |
| Operating Temperature Range | -40°C to 70°C |
| Protection Rating | IP54 |
| Mechanical Resistance | IK10 |
| Flammability Class | V0 according to UL 94 |
| Weight | 105 kg |
| Material/Construction | Powder-coated steel sheet with Magnelis coating |
| Color | RAL7035 |
