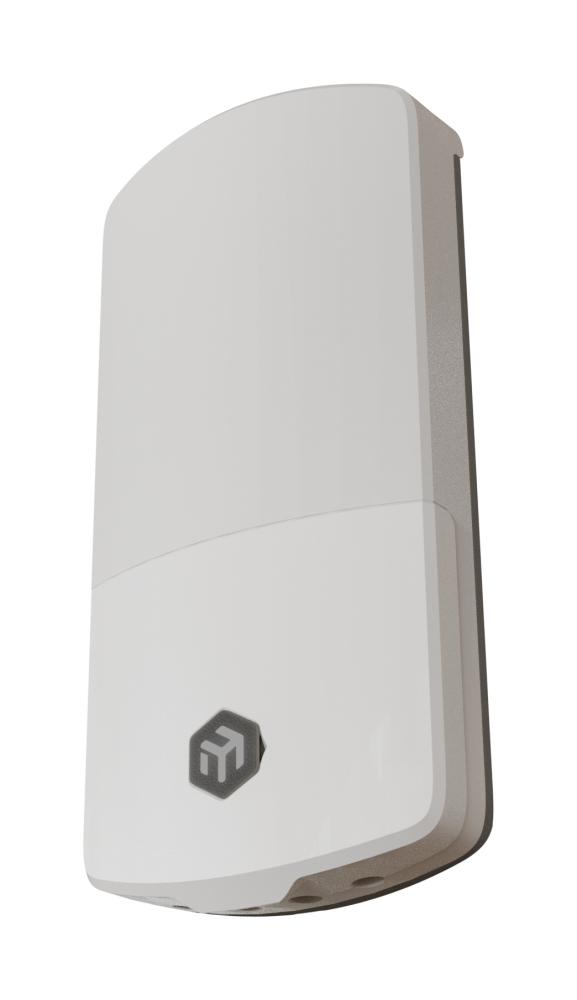

The MikroTik wAP ax LTE7 kit is a router equipped with an LTE Category 7 modem, with a maximum theoretical mobile data throughput of 300 Mb/s for downloads and 100 Mb/s for uploads. The device can broadcast a Wi-Fi 6 wireless network simultaneously in the 2.4 GHz and 5 GHz bands. It supports IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical throughput is 574 Mb/s in the 2.4 GHz band and 2402 Mb/s in the 5 GHz band. The enclosure is fully adapted for outdoor use and is the first device in the wAP series to feature a new, improved housing. The router has two Gigabit Ethernet ports (10/100/1000 Mb/s). One of them provides PoE power input (18–57 V DC, passive or 802.3af/at). Power can also be supplied via a standard DC jack (12–57 V DC). The maximum power consumption is 13 W. The package includes a power adapter, an injector, and a mounting kit.

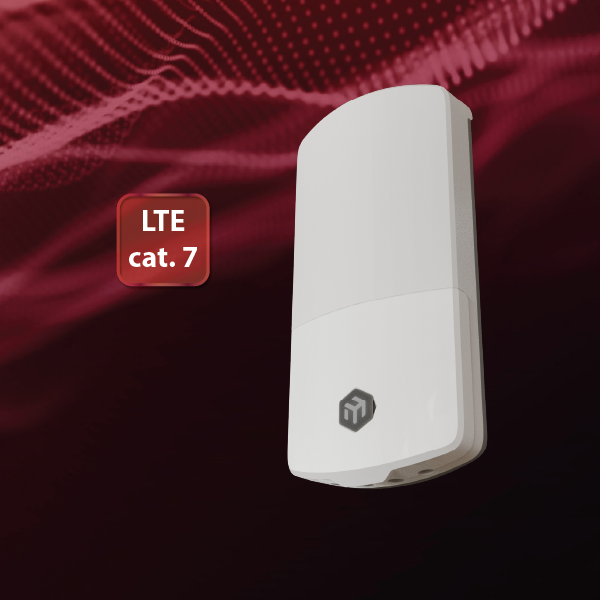

LTE Category 7 Modem

The offered product features a built-in LTE Category 7 modem. The maximum theoretical mobile data throughput is 300 Mb/s for downloads and 100 Mb/s for uploads. It is the successor to previously offered LTE Category 6 modems (various versions), providing higher upload speeds and two additional operating bands. The device is backward compatible with the 3G standard.

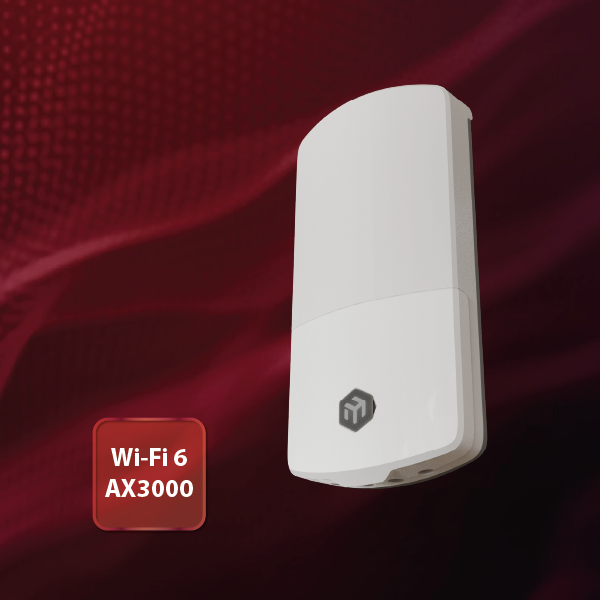

Wi-Fi 6 AX3000

The wAP ax LTE7 kit can transmit a Wi-Fi 6 wireless network simultaneously in the 2.4 GHz and 5 GHz bands. It supports IEEE 802.11 b/g/n/ax in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical throughput is 574 Mb/s at 2.4 GHz and 2402 Mb/s at 5 GHz. The router provides very good wireless performance, more than sufficient for most applications.

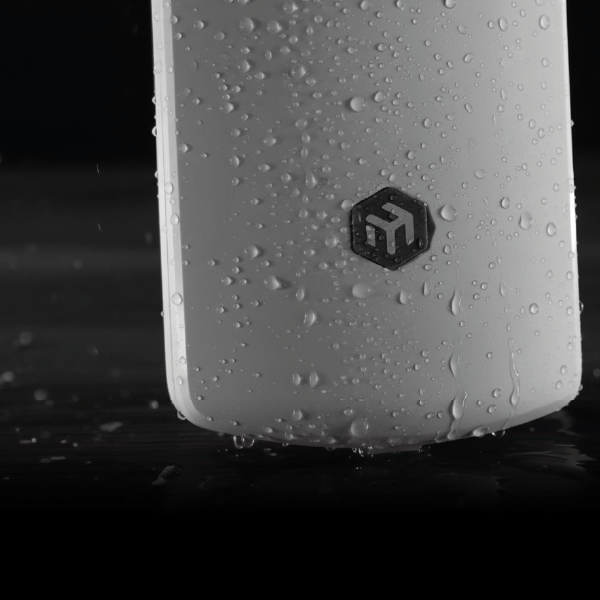

Outdoor Mounting (IP66), 2× 1G Ethernet Ports

The enclosure is fully adapted for outdoor use and features an IP66 protection rating. It is the first device in the wAP series with a new, slimmer type of housing. Using the accessories included in the package, the router can be mounted on a pole. The device is equipped with two 1G Ethernet ports, providing good wired connection throughput.

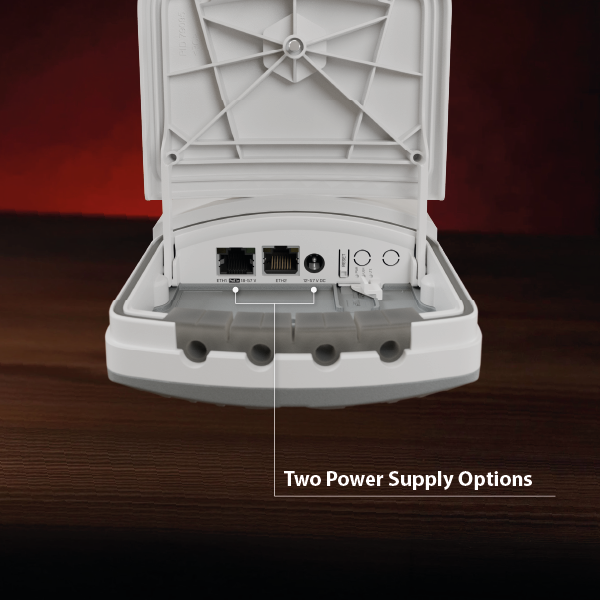

Two Power Supply Options

Power can be supplied to the wAP ax LTE7 kit in two ways – via PoE (passive 18–57 V DC or standard 802.3af/at) or through the DC jack (12–57 V DC). The maximum power consumption is only 13 W. The package includes a 24 V DC / 0.8 A power adapter and a suitable PoE injector.

Specifications
