Wall-mounted distribution box

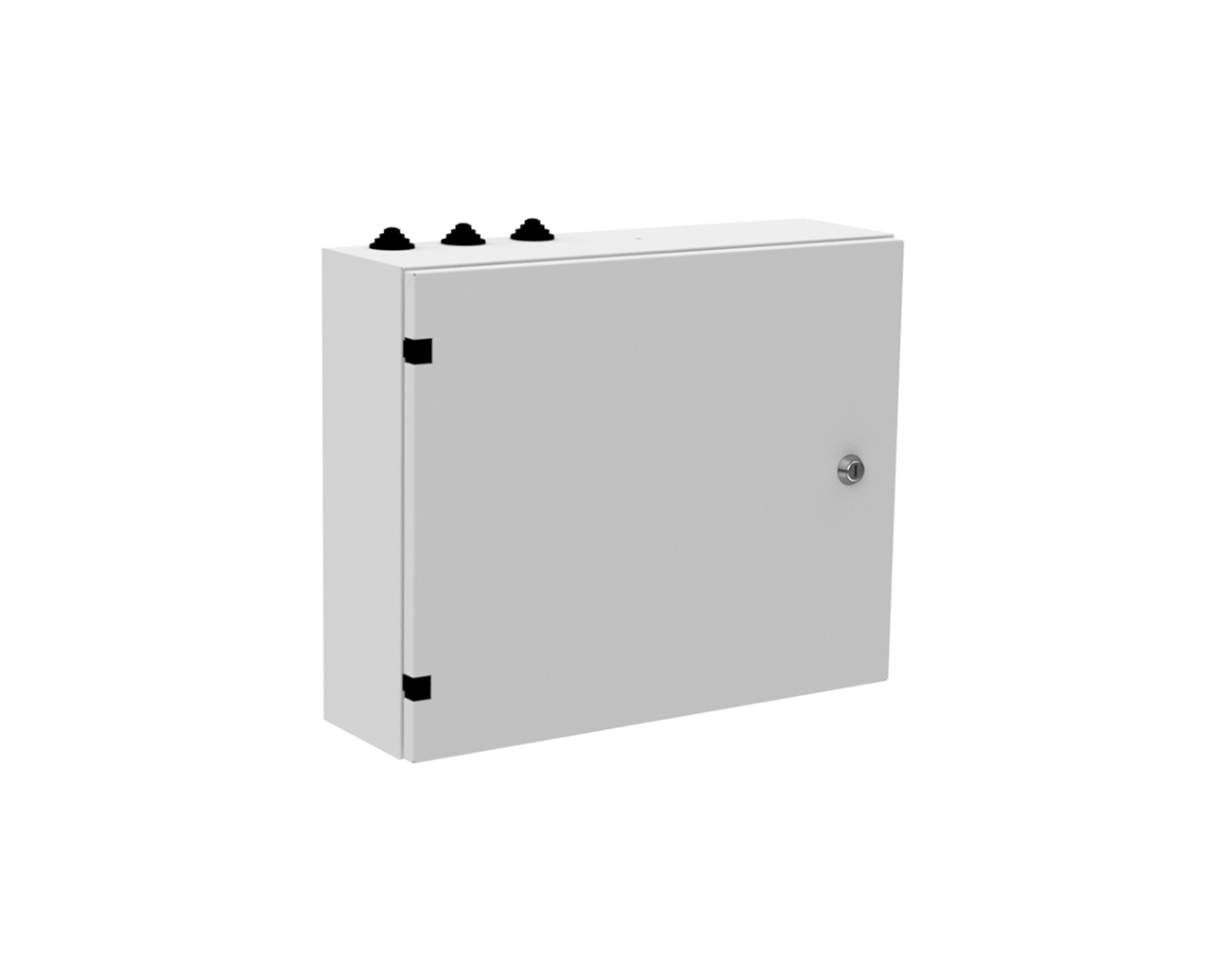

The offered product is a distribution box designed for wall-mounted installation inside buildings. Due to its size and capacity, it can be used in places where many fiber optic lines converge, for example in multi-family buildings for connecting subscribers. The distribution box is made of steel sheet coated with a Magnelis layer and painted in light gray color RAL7035. The manufacturer has used solid, single-leaf doors secured with a standard key lock. The protection rating is IP41, and the mechanical resistance is IK10.

Frame for mounting 48 SC Simplex adapters, divided into two sections

The interior of the distribution box has been divided into two sections separated by a frame with space for 48 SC Simplex / LC Duplex adapters. On the left side, you can install a splice tray, route cables, and secure their excess. The right side is equipped with a large holder designed for storing excess cable, which significantly facilitates subscriber cable management.

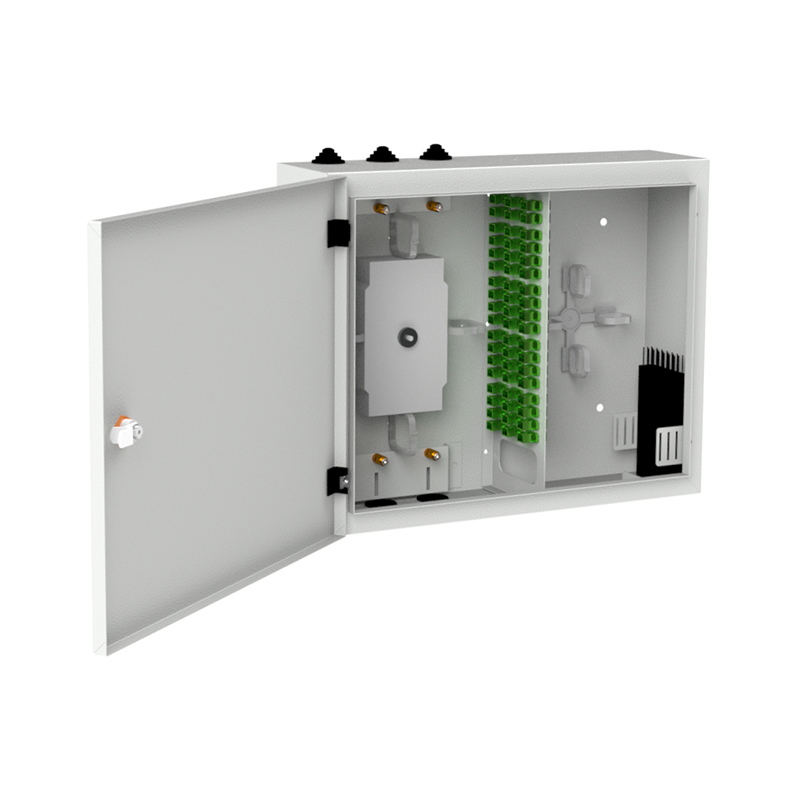

Note – the image next to this description shows a visualization of a fully equipped distribution box; adapters and trays are not included in the set!

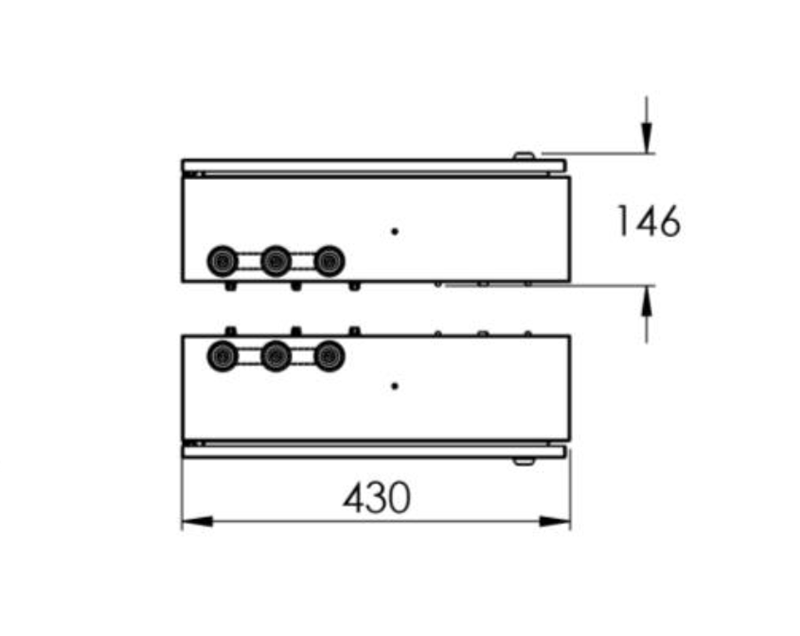

6 cable entry holes

There are three holes each at the top and bottom, designed for cable entry. They have a diameter of 32 mm and are secured with rubber grommets, which should be cut to size to adjust their diameter. Due to its design, the distribution box is best suited for multi-story buildings when installing vertical cabling.
