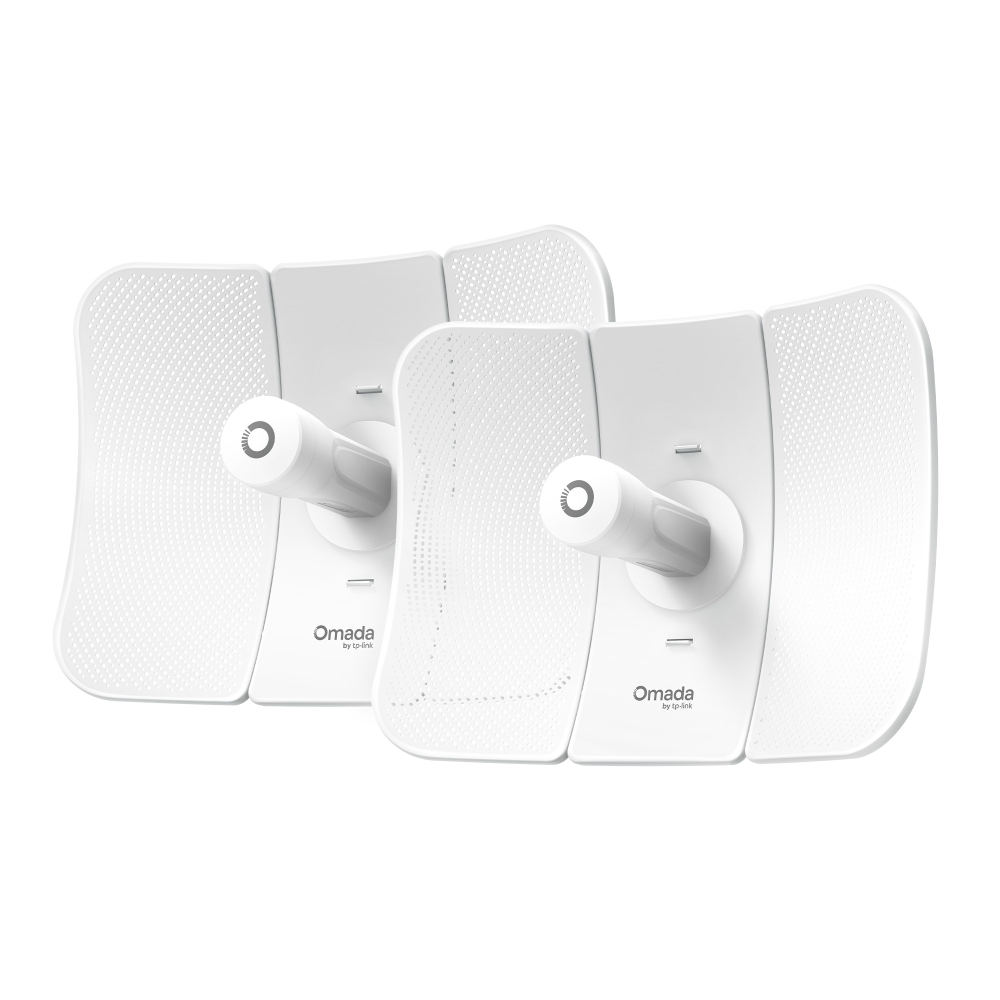

Tp-Link Beam Bridge 5 UR Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge
Prezzo
179,64 €
220,96 € IVA inclusa
favoriteLista dei desideri
TP-Link Beam Bridge 5 UR KIT is a wireless, indoor/outdoor long-range Omada Bridge, 5GHz 867Mbps. Thanks to 23dBi high-gain directional antennas, the maximum transmission range is 15 km; the exact range depends on local conditions. It features a Plug and Play, factory pre-configured kit that enables instant, automatic PtP pairing and out-of-the-box connectivity. Visualizing device alignment in the app simplifies long-distance installation and allows for instant speed testing to verify the installation. It features 1 gigabit port with support for 802.3af PoE and passive PoE. IP65 weather-proof enclosure, 6kV lightning protection, and the ability to operate in temperatures ranging from -40°C to 70°C.

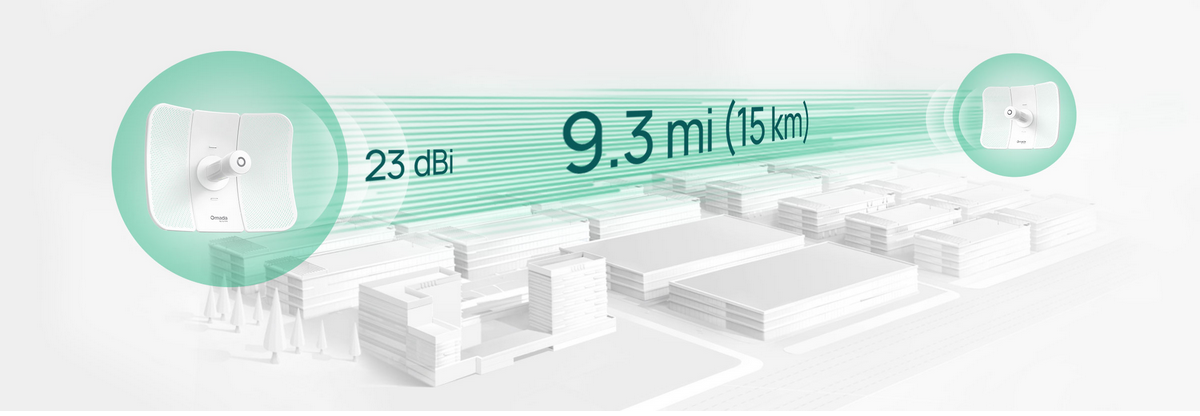

Business-Grade 15-km Ultra-Range Wireless Connectivity
Delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission.
Perfect for Remote Outdoors
Plug-and-Play Effortless Installation

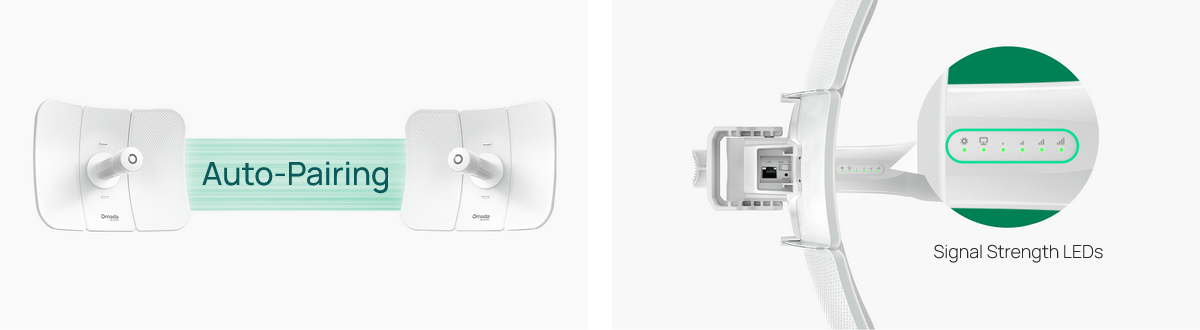

Auto-Pairing, no manual setup needed, agile LED signal indicators for easy alignment.

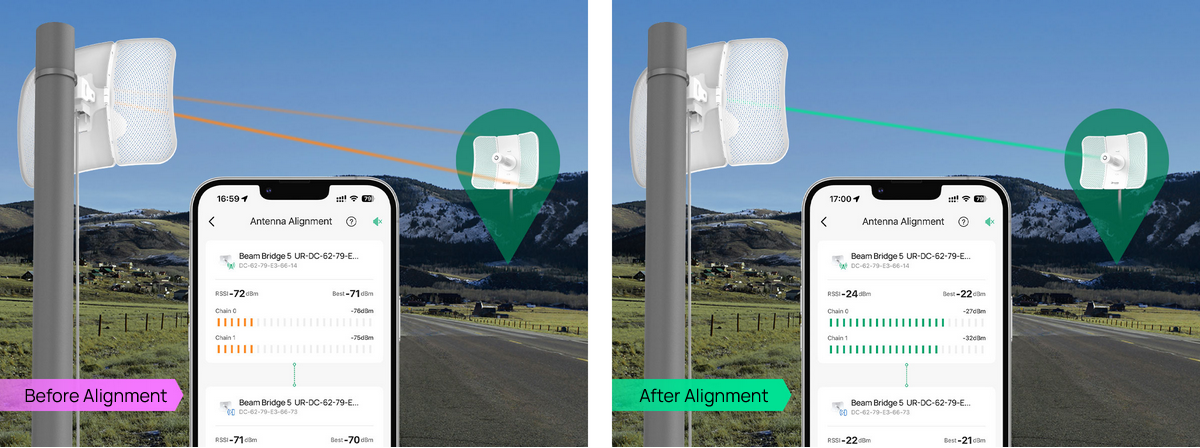

App-Guided Alignment for Optimal Performance
Effortless App-Guided Alignment

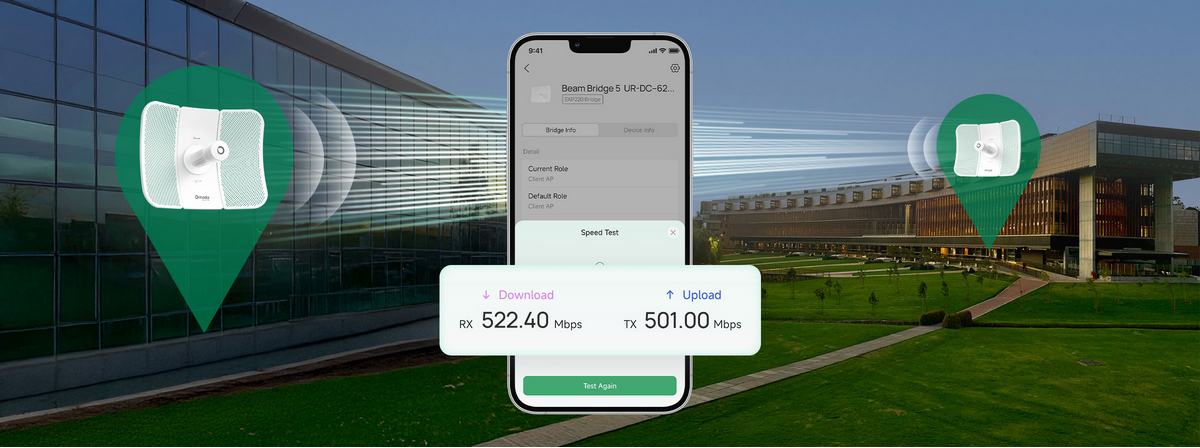

Instant speed testing for installation verification at your fingertips.

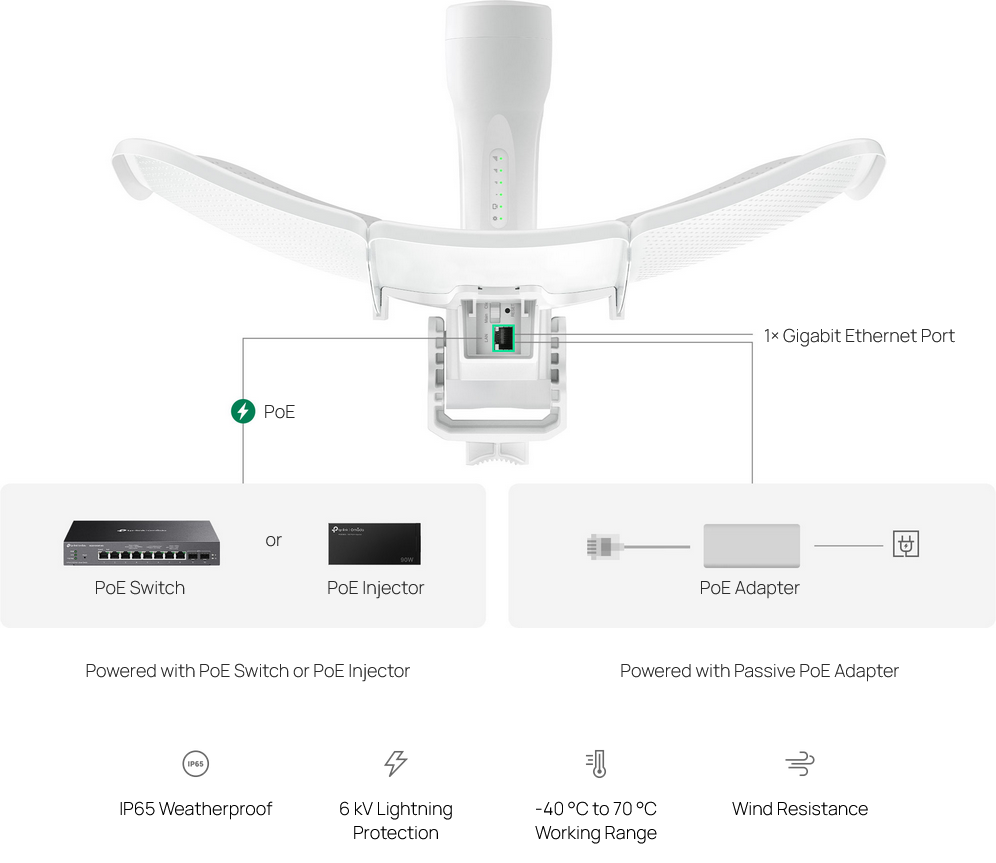

Outdoor-Ready Hardware for Easy Use

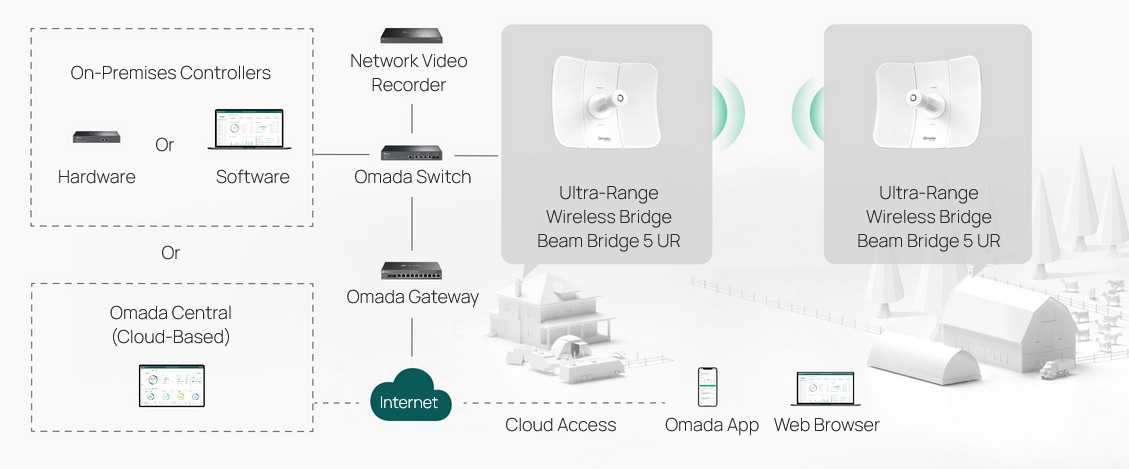

Seamless Integration into Omada SDN
Specifications
| TP-Link Beam Bridge 5 UR KIT | |
| Hardware features | |
|---|---|
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button 1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |
| Dimensions ( W x D x H ) | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Mounting | Pole Mounting (Kits Included) |
| Wireless features | |
| PtP | Yes |
| Transmission Distance | 15 km |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: to 867 Mb/s |
| Wireless Functions | MU-MIMO: 5G 2x2 MU-MIMO DL Maximum number of associated STAs: 8 Speed Test Channel Optimization Antenna Alignment ACS (Automatic Channel Selection) Rate Limit Guest Network |
| Wireless Security | VLAN Rogue AP Detection Maximum number of MAC Filter: 4,000 Wireless Encryption |
| Transmission Power |
CE: FCC: |
| Management features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| Other features | |
| Certification | CE, FCC, RoHS |
| Package Content | Beam Bridge 5 UR KIT Installation Guide Mounting Kit Passive PoE Adapter Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Operating Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
