Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable 3m (50-pack)

Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable 3m (50-pack)

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UAOFCS2LULU-3M-50

Numero di catalogo: 11112

Garanzia (mesi):

Prezzo

215,22 €

264,72 € IVA inclusa

favoriteLista dei desideri

Descrizione

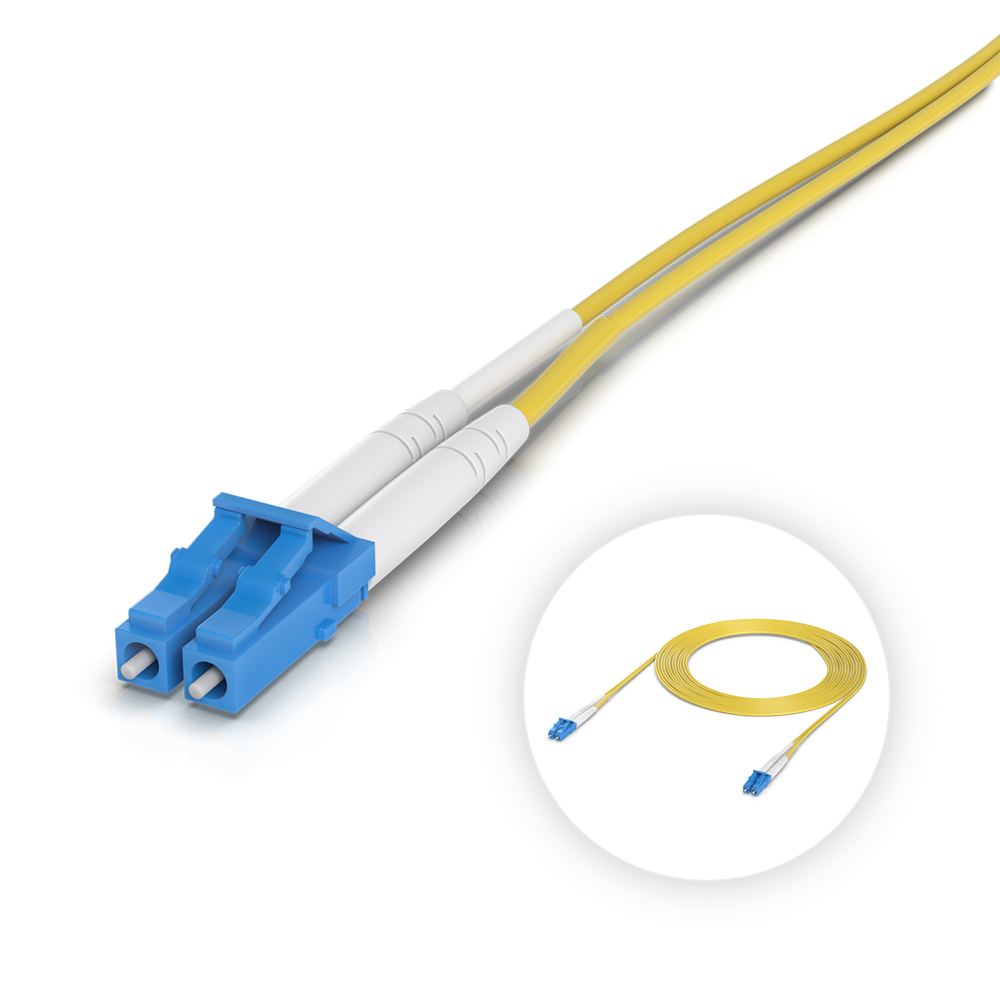

LC/UPC to LC/UPC Duplex OS2 Fiber Optic Patch Cable

The offered product is a fiber optic patch cable terminated with LC/UPC to LC/UPC Duplex connectors. It uses OS2 single-mode fiber, making it suitable for connecting single-mode optical transceivers. The cable supports data rates of up to 100 Gb/s, making it suitable for high-speed network applications.

3 m Length, LSZH Jacket, Pack of 50

The cable is 3 m long and has an outer diameter of 2 mm. It features a Low Smoke Zero Halogen (LSZH) jacket, making it suitable for indoor installations where reduced smoke and toxic emissions are required in the event of a fire. The product is supplied as a pack of 50 fiber optic patch cables.

Specifications

Ubiquiti UACC-OFC-S2-LULU-3M-50
Length	3 m (9.8 ft)
Pack Options	50-pack
Connector	(2) Duplex LC UPC
Operating Environment	Indoor
Fiber Mode	OS2
Jacket Diameter	2 mm (0.08")
Jacket Material	Low smoke zero halogen (LSZH)
Jacket Color	Yellow
Wavelength	1310/1550 nm
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Repeatability	≤ 0.1 dB
Durability	≤ 0.2 dB (1,000 times mating)
Ambient Operating Temperature	-40 to 75° C (-40 to 167° F)
