Ubiquiti GNSS Antenna SMA-m, 2 dBi, IP67

Ubiquiti GNSS Antenna SMA-m, 2 dBi, IP67

Produttore: Ubiquiti Networks

Codice prodotto: UQ-UACC-GNSS-ANTENNA

Numero di catalogo: 11130

Garanzia (mesi):

Prezzo

151,48 €

186,32 € IVA inclusa

favoriteLista dei desideri

Descrizione

2 dBi GNSS Antenna

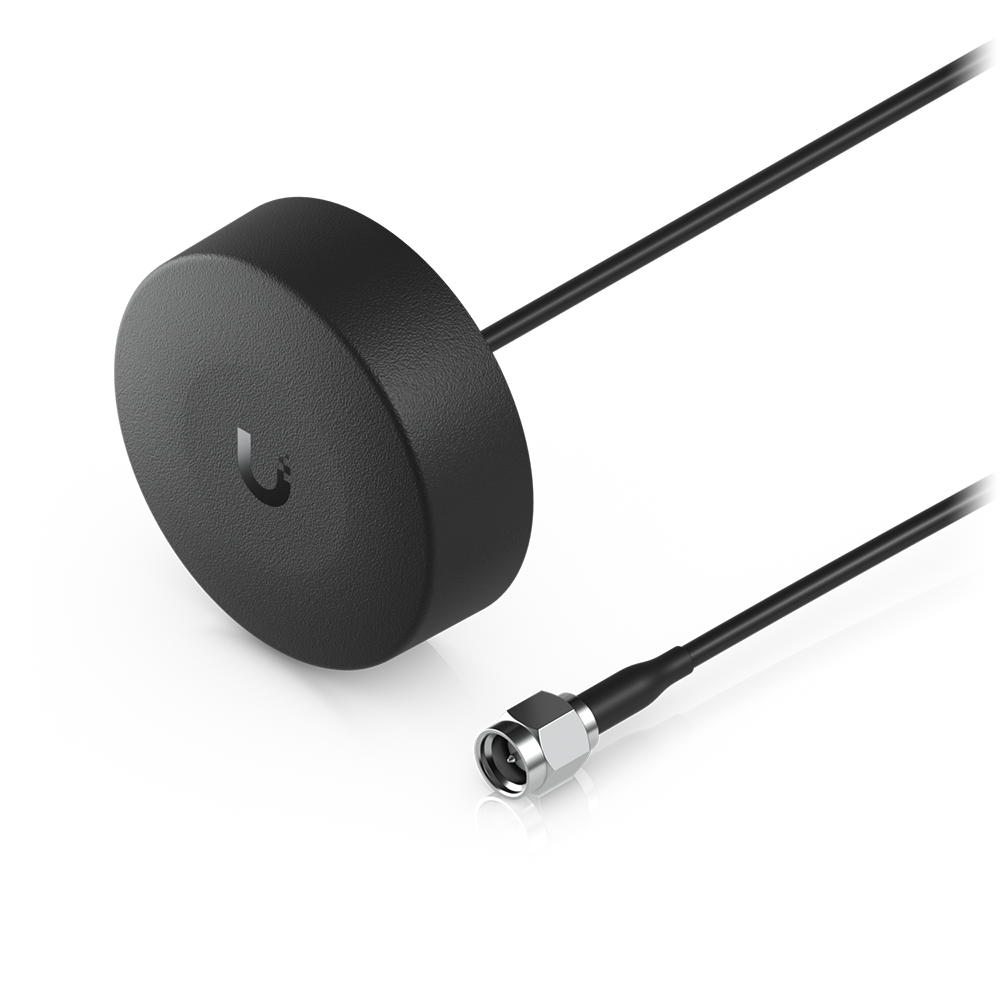

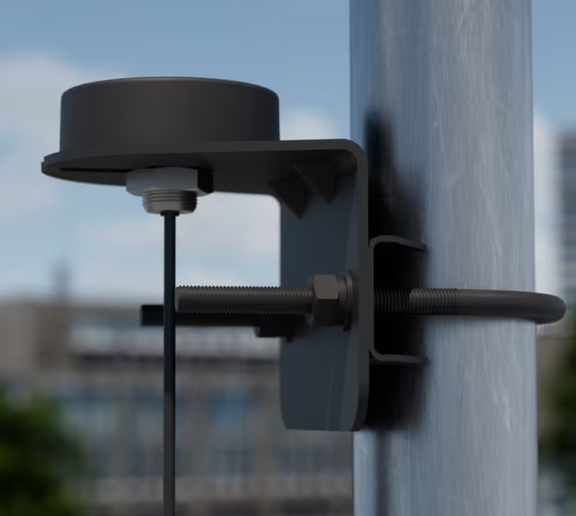

Ubiquiti UACC-GNSS-Antenna is a GNSS antenna with a 2 dBi gain. It features a male SMA connector and is fully designed for outdoor deployment, with an IP67 protection rating. Using the included mounting accessories, it can be installed on a wall or pole. The package also includes a 5 m pigtail cable. The antenna is designed as an optional accessory for the EAV-Fiber and EAV-XG-24-PoE devices.

Specifications

Mechanical
Ubiquiti UACC-GNSS-Antenna
Dimensions	?46 x 15 mm (?1.8 x 0.6")
Weight	84 g (3 oz)
Enclosure Material	Acrylonitrile butadiene styrene thermoplastic (ABS PA-757)
Mount Material	Stainless steel
Wind Survivability	60–70 m/s (134–157 mph)
Wind Loading	1.5–3.0 kPa
Mounting	Pole, wall mount
Pole Mount Diameter	?0.75–1.42" (?19–36 mm)
Weatherproofing	IP67
Hardware
Supported Voltage Range	3 - 5 V DC, ?rednio 3,3 V
Frequency Range	1559 - 1606 MHz
Gain	2
LNA Gain	38dB typ.
Max. VSWR	< 2
Polarization	RHCP
RF Connectors	SMA Male
RF Cable	RF174
Cable Length	5 m (16,4 ft)
Delay	25 ns
Ambient Operating Temperature	-40 to 85° C (-40 to 185° F)
