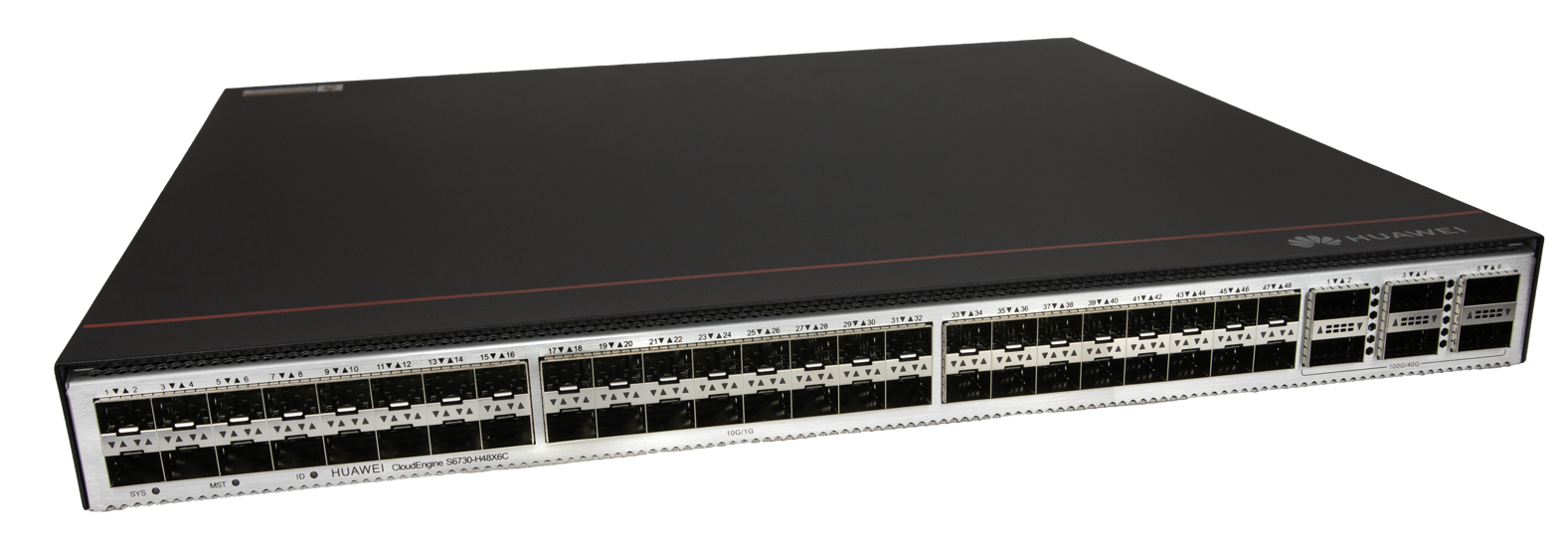

Huawei CloudEngine switch S6730-H48X6CAC switch 48x SFP+ 6x QSFP28 (40/100G) 100 Gb/s license AC power supply

Huawei CloudEngine switch S6730-H48X6CAC switch 48x SFP+ 6x QSFP28 (40/100G) 100 Gb/s license AC power supply

Produttore: Huawei

Codice prodotto: HUA-S6730-H48X6CA100

Numero di catalogo: 9258

Garanzia (mesi):

Prezzo

3 450,43 €

4 244,03 € IVA inclusa

favoriteLista dei desideri

Descrizione

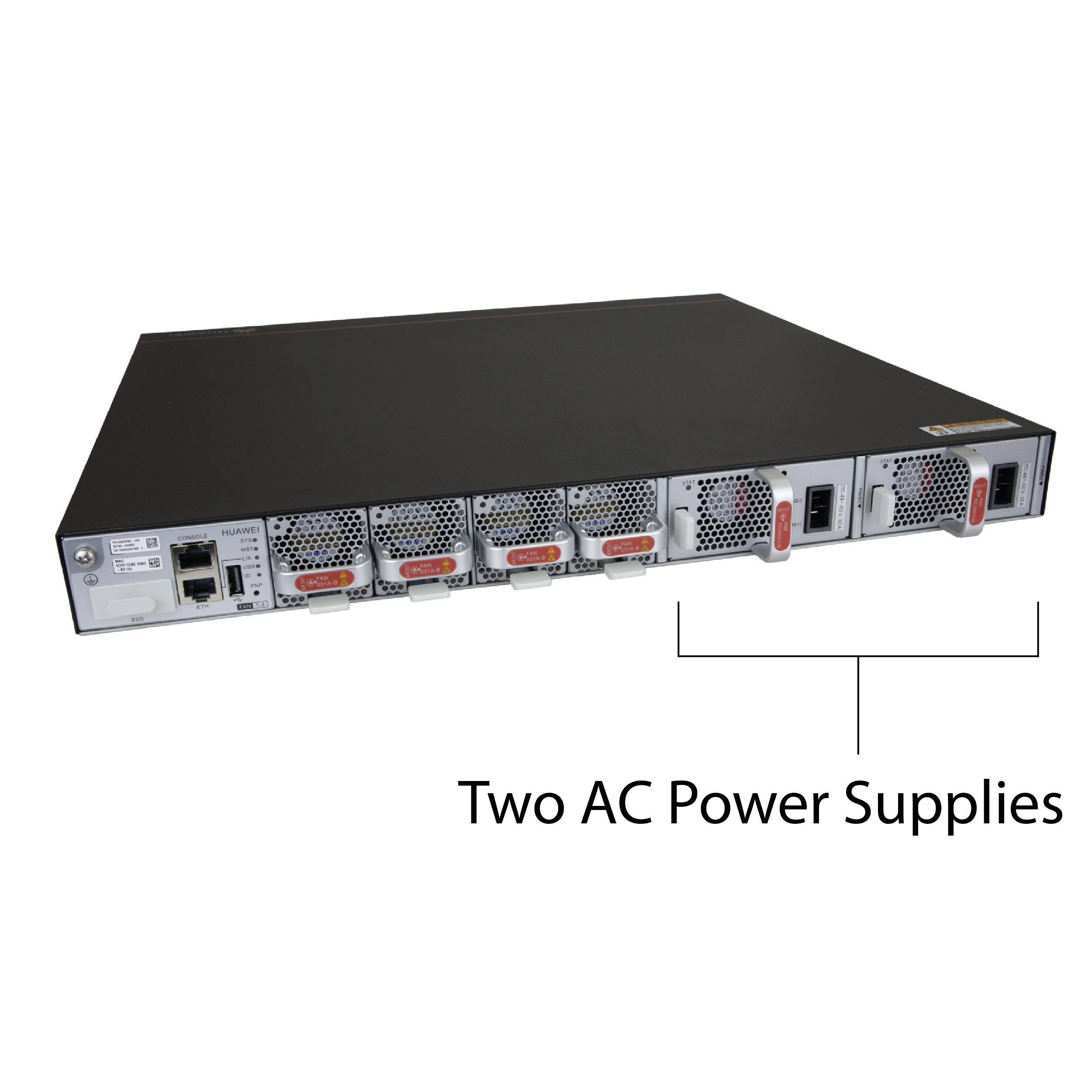

Huawei S6730-H48X6C is an efficient switch from the CloudEngine series. It is equipped with 48 SFP + slots with a bandwidth of 10 Gb / s each and 6 QSFP28 slots with a bandwidth of 40/100 Gb / s. The device is licensed with a limit of 40 Gb / s per QSFP port. The set includes two AC adapters with a voltage range of 100 - 240 V (600 W, max. 8 A). The switch can be successfully used by Internet operators, on school campuses or various types of institutions.

The offered product supports advanced multicast support, including PIM-SM, PIM-DM, PIM-SSM and Multicast VPN. It also has extensive Layer 3 features such as RIP v1 / 2, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4 +. An additional advantage is the numerous security measures, detects non-standard and potentially dangerous traffic, analyzes threats in encrypted traffic (Encrypted Communication Analytics), and can cooperate with the Huawei Cybersecurity Intelligence System (CIS).

An additional advantage is the possibility of virtual stacking of multiple switches using iStack. The device supports VXLAN-based virtualization, allows you to connect wireless and wired networks. It can handle up to 1024 access points in one network, acts as their controller (including domain management or configuration templates).

The product includes 100 Gb/s license!

The most important features:

48 SFP + slots;
6 QSFP28 slots (40/100 Gb / s);
100 Gb / s license;
possibility of connecting wired and wireless networks;
virtual stacking;
VXLAN support;
numerous security features.

Specification:

W?a?ciwo?ci oprogramowania
S6730-H48X6C
Ports	48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Licence	40 Gb/s
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm
Chassis height(U)	1 U
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum input current	AC 600W?8A DC 1000W?30A
Maximum power consumption (100% throughput, full speed of fans)	291 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	165 W
Operating temperature	-5°C to 45°C
Storage temperature	-40°C to +70°C
Noise	< 65 dB(A)
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Relative humidity	5%-95% noncondensing
Cooling	Active, 4, Fan modules are pluggable
MAC	Up to 384K MAC address entriesIEEE 802.1d standards complianceMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
ARP	Static ARP/Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policyUp to 256K FIBv4 entries, Up to 80KFIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Wireless service	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IPv6 features	Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 TelnetACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP Multicast VPN
QoS / ACL	Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryptionECA Deception
Reliability	LACP E-Trunk Ethernet OAM (IEEE 802.3ah i IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients
IPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different severities GVRPMUX VLAN NetStream Telemetry
