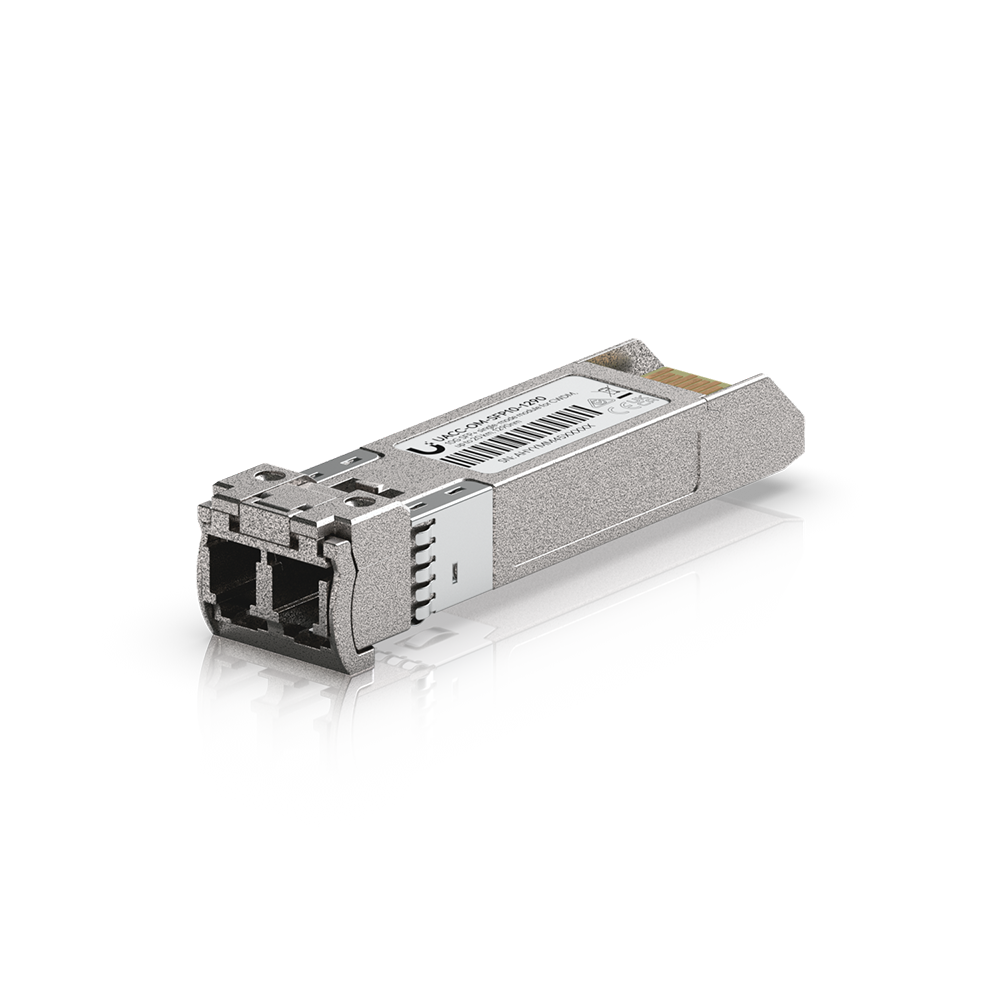

Ubiquiti UACC-OM-SFP10-1290 is a CWDM-type SFP+ optical module. When used with a suitable MUX and DEMUX (available in the related products), it allows for the creation of up to 12 transmissions using only two fiber optic strands. The offered product operates on the 1270 nm channel; to create one pair, you need to purchase two identical modules. The transmission bandwidth is 10 Gb/s, and the module is equipped with two LC/UPC (Duplex) connectors. It can be used with single-mode fibers. The maximum transmission range is 20 km, and the optical module is compatible with all Ubiquiti devices equipped with an SFP or SFP+ slot.

CWDM Module

The offered product is a CWDM-type optical module. By using this type of transceiver along with appropriate MUX/DEMUX units, you can establish up to 12 simultaneous transmissions using just two fiber strands. Identical modules (with the same wavelengths) must be used on both ends of the connection. The modules should be selected to match the specific channels supported by the MUX/DEMUX in use.

SFP+ (10 Gb/s), LC/UPC Connectors

The module is equipped with two standard LC/UPC (Duplex) connectors and is an SFP+ type with a transmission speed of 10 Gb/s. It is compatible with all Ubiquiti devices that feature SFP or SFP+ slots.

Singlemode Fiber, 20 km Range, 1290 nm Wavelength

The optical module is designed for transmission using two singlemode fiber strands. It supports a maximum connection range of 20 km and operates on a 1290 nm wavelength.

Specifications
