Opton outdoor Rack 19" cabinet, 18U with air-conditioner, free-standing (69x116x61)

Opton outdoor Rack 19" cabinet, 18U with air-conditioner, free-standing (69x116x61)

Produttore: Opton

Codice prodotto: OP-SZ-KANK-69/116/61

Numero di catalogo: 10860

Garanzia (mesi):

Prezzo

3 188,51 €

3 921,87 € IVA inclusa

favoriteLista dei desideri

Descrizione

Pallet shipping
Due to the weight and dimensions, this item requires pallet shipping. The shipping cost will be calculated individually.

19" 18U Rack

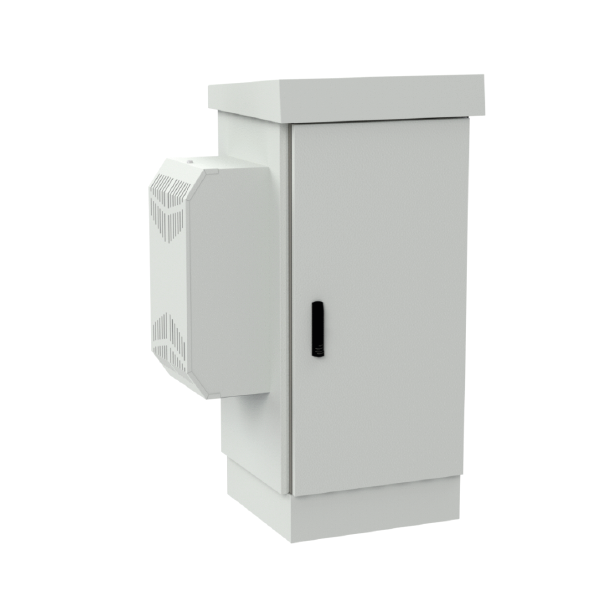

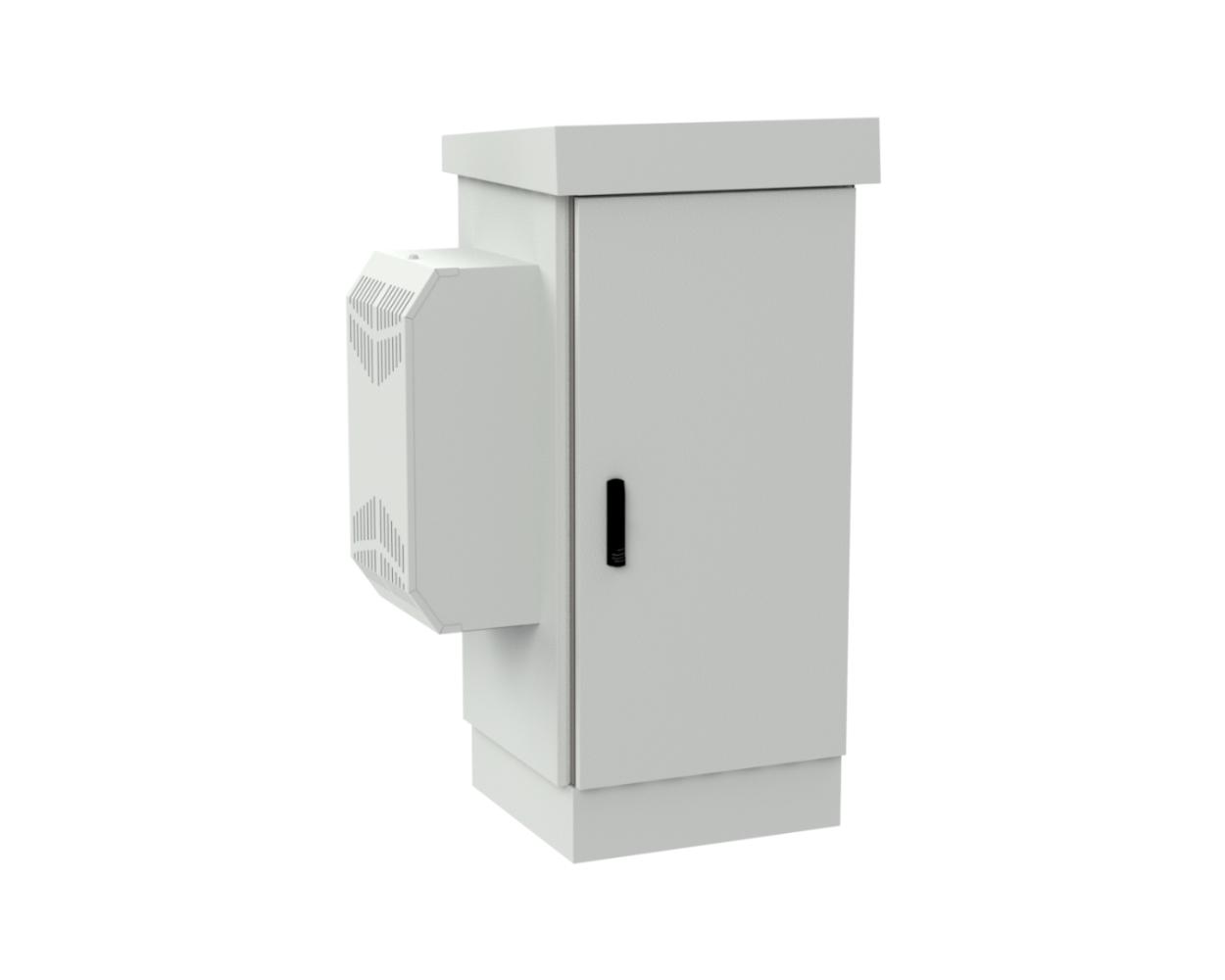

The offered product is a telecommunications cabinet in the 19" Rack standard. Its external dimensions are 69 x 116 x 61 cm, with a height of 18U. It features a dual-wall, single-chamber construction made of steel sheet with a Magnelis coating. In the bottom part, there are 6 holes (38 mm diameter) for cable routing. Inside the cabinet, there are 4 rack rails with a mounting depth of 510 mm.

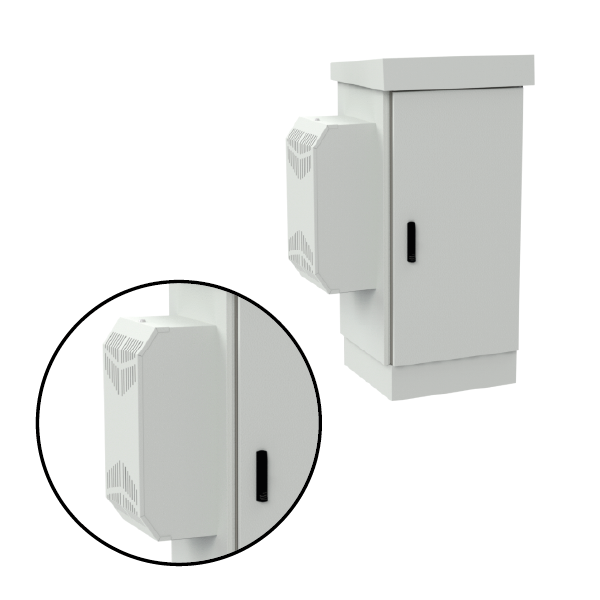

Thermal Insulation, 720 W Air Conditioner

The cabinet features a dual-wall design with double walls containing air in between, acting as an additional thermal insulator to protect the equipment inside. The product comes with an integrated 720 W air conditioner. The AC unit cools the interior of the cabinet, prevents devices from overheating, and extends their lifespan.

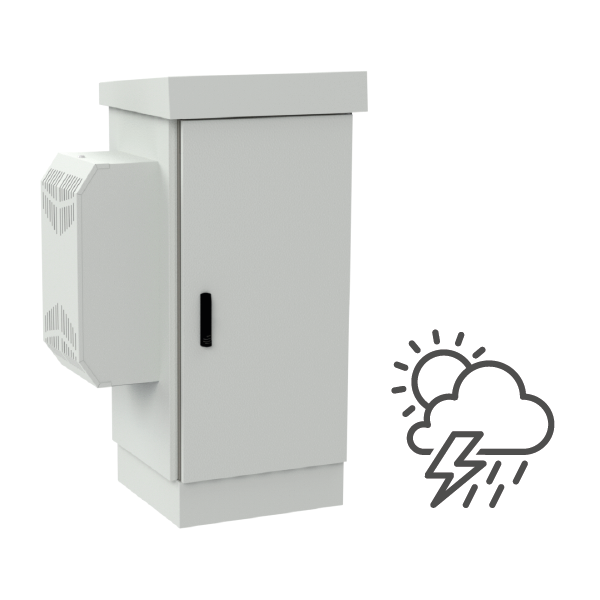

Freestanding, for Outdoor Use

Thanks to the use of an air conditioner, the cabinet does not have ventilation holes in the lower section (unlike standard outdoor freestanding cabinets), which results in an IP65 protection rating—higher than in cabinets without air conditioning (IP54). The construction is protected against the ingress of water and dust. It is a freestanding cabinet that can be appropriately anchored to the ground (e.g., concrete), mounted on a telecommunications manhole, or placed on a pedestal (sold separately).

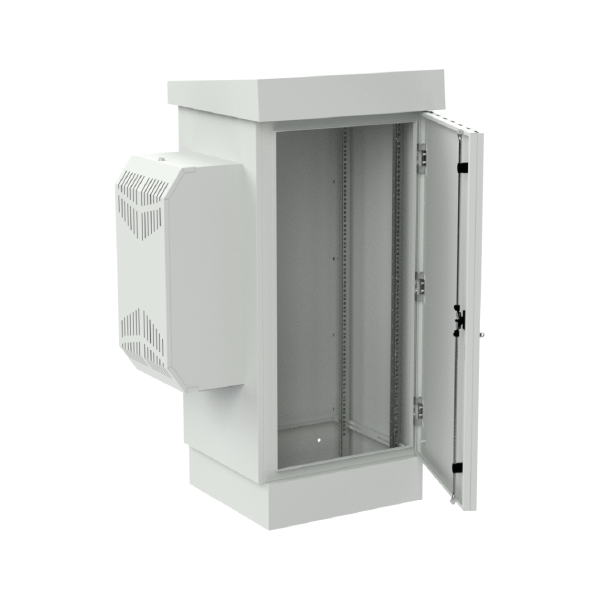

Solid Doors

The manufacturer has used solid doors that open up to 120°. The cabinet does not have any additional removable side panels. The doors are secured with a patent lock installed in a swing handle and feature a three-point locking system.

Specification

Opton SZ-KANK-69/116/61
Dimensions (W x H x D)	690 x 1160 x 610 mm
Rack Standard	19"
Height	18U
Static Load Capacity	200 kg
Mounting Depth	510 mm
Number of Mounting Rails	2 at the front, 2 at the back
Cable Entries	Knockouts for self-removal
Cable Entry Diameter	38 mm (6 entries at the bottom)
Door Type	Single-leaf, solid
Removable Side Panels	No
Thermostat	Yes
Air Conditioner	TEXA Industries
Cooling Power	720 W
Grounding	Doors, roof, base
Mounting Type	Outdoor, freestanding
Operating Temperature Range	-40°C to 70°C
Protection Rating	IP65
Mechanical Resistance	IK10
Flammability Class	V0 according to UL 94
Construction	Powder-coated steel sheet with Magnelis coating
Color	RAL7035
