The Uplink HG3110AX is a client terminal ONT designed for use in 10G EPON (asymmetric) networks. It enables the transmission of Wi-Fi 6 wireless networks, using IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical Wi-Fi throughput is 574 Mb/s at 2.4 GHz and 2402 Mb/s at 5 GHz. The device has one 2.5G Ethernet port and three 1G Ethernet ports, with the 2.5GE port allowing subscribers to fully utilize large data packages. Additionally, the terminal is equipped with a USB port for file/printer sharing and an FXS port for delivering telephone services. The ONT features an SC/UPC optical port with a class B+ laser, a reception sensitivity of -29.5 dBm, and a maximum transmission power of 3.5 dBm.
The offered product supports the EasyMesh function, allowing it to create an extensive wireless network in conjunction with other compatible devices. The HG3110AX is suitable for any 10G EPON network, especially if you offer your customers packages larger than 1 Gb/s. With this terminal, you can provide triple play packages, including internet, IPTV, and telephone services.
![](download/uplink/UPLINK-HG3110AX-XE_desc_1.jpg)
10G EPON network
The HG3110AX-XE is a client terminal ONT designed for asymmetric 10G EPON networks. It adheres to standards supporting a download speed of 10 Gb/s and an upload speed of 1 Gb/s. The device features an SC/UPC optical port with a Class B+ laser. It has a reception sensitivity of -29.5 dBm and a maximum transmission power of 3.5 dBm. Transmission occurs on wavelengths of 1577 nm for downstream and 1270 nm for upstream.

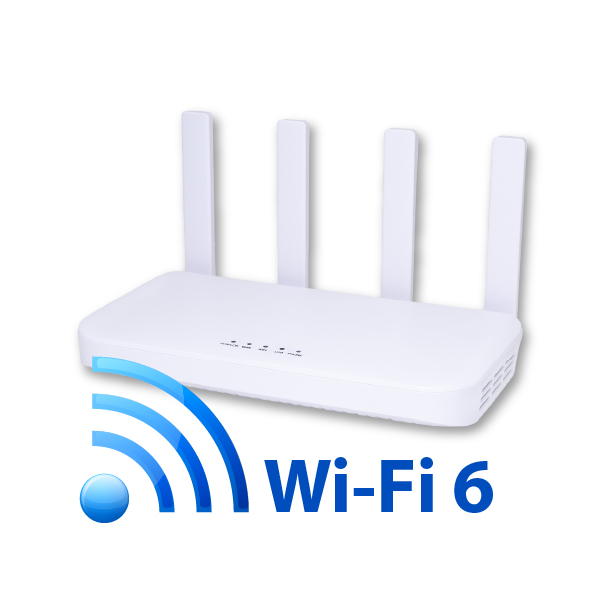

Wi-Fi 6 AX3000
The terminal can transmit Wi-Fi 6 wireless networks using IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax protocols in the 5 GHz band. The maximum theoretical throughput is 574 Mb/s in 2.4 GHz and 2402 Mb/s in 5 GHz. Four external omnidirectional antennas are responsible for transmission, with a gain of 4 dBi in 2.4 GHz and 5 dBi in 5 GHz.
The Uplink HG3110AX-XE offers high wireless network speeds that most subscribers will appreciate. With the use of external omnidirectional antennas, it ensures good connection range, which is also crucial for the majority of customers.
![](download/uplink/UPLINK-HG3110AX-XE_desc_2.png)
![](download/uplink/UPLINK-HG3110AX-XE_desc_3.png)
EasyMesh standard
An additional advantage of the HG3110AX-XE is its support for the EasyMesh standard. With this ONT terminal, you can connect another Uplink router/access point that also supports this standard to create an extensive wireless network. Devices within this network communicate wirelessly with each other, eliminating the need for additional Ethernet wiring. Users see a unified network under one name, and they are seamlessly switched (roamed) between different access points as they move around.

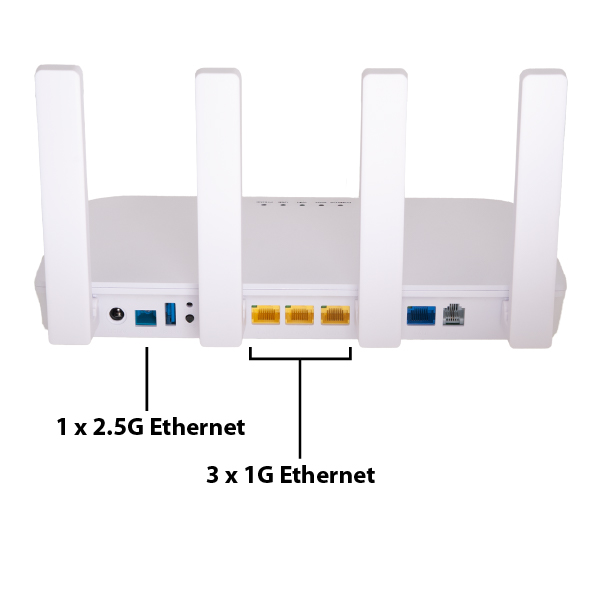

1x 2.5G Ethernet port, 3x 1G Ethernet port
The HG3110AX-XE is equipped with 1 port of 2.5G Ethernet with a throughput of 2.5 Gb/s. This capability allows you to provide subscribers with packages larger than 1 Gb/s and enable them to achieve such speeds. Additionally, the terminal has 3 standard 1G Ethernet ports for additional connectivity options.
![](download/uplink/UPLINK-HG3110AX-XE_desc_4.png)
![](download/uplink/UPLINK-HG3110AX-XE_desc_5.png)

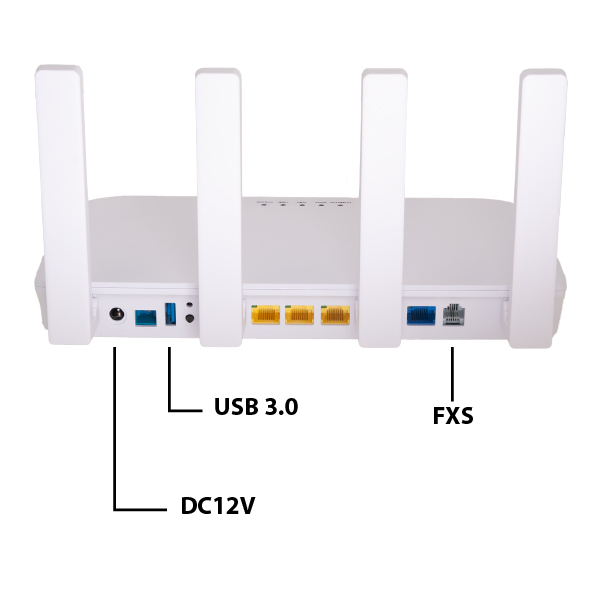

USB 3.0 port, FXS port, 12 V powering
The offered product is equipped with 1 USB 3.0 port, which you can use for sharing data or connecting printers when an external storage device is connected. It functions excellently as a multimedia center. Additionally, the FXS port (RJ11) allows you to connect an analog telephone, enabling the provision of VoIP services to customers, in addition to internet and television services.
The device features a built-in DC socket with a 12 V input. It comes with an included power supply rated at 12 V / 2 A. The maximum power consumption of the device is 24 W.
Specifications
Uplink HG3110AX-XE | |
Hardware | |
---|---|
Dimensions | 244 x 131 x 36 mm |
Weight | 425 g |
Operating conditions |
Operating temperature: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) |
Storing conditions |
Storing temperature: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
Powering | 12 V / 2 A |
Maximum power consumption | 24 W |
Interfaces | 1x 2.5GE, 3x GE, 1x POTS, 1x USB 3.0, Wi-Fi 6 |
LED indicators | PON/LOS, WAN, USB, PHONE, WIFi |
Interfaces | |
PON |
Class B+ SC/UPC Tx power: 3,5 dBm Rx sensitivity: -29,5 dBm Overload optical power: -7 dBm Tansmission range: 20 km Wavelengths: 1577 nm (downstream) / 1310 nm (upstream) |
PON standard | IEEE 802.3av (10G EPON) |
User interfaces |
1x 2.5G Ethernet with auto negotiation 3x 1G Ethernet with auto negotiation 1x POTS RJ11 1x USB 3.0 |
Antennas |
External omnidirectional antennas 2,4 GHz: 4 dBi 5 GHz: 5 dBi |
USB | USB 3.0 for Shared Storage/Printer |
Functions | |
O&M |
Web / Telntet / OAM / OMCI / TR-069 Support private OAM/OMCI protocol and Uplink unified network management |
Working modes | Bridge and router |
Multicast |
IGMP v1/v2/v3, IGMP Snoopoing MLD v1/v2 Snooping |
VoIP |
SIP iandIMS SIP G.711a/G.711u/G.722/G.729 codecs Echo cancellation, VAD / CNG, DTMF relay T.30 / T.38 fax Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
Wi-Fi |
Wi-Fi 6 2,4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax Encryption: WEP-64 / WEP-128 / WPA / WPA2 / WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support WIFI Easy-mesh function |
L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
L3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
