Mantar Rack 10" 1U fiber optic patch panel 16x SC Duplex

Mantar Rack 10" 1U fiber optic patch panel 16x SC Duplex

Produttore: Mantar

Codice prodotto: MANTAR-PS-101U16XDXS

Numero di catalogo: 9991

Garanzia (mesi):

Prezzo

13,03 €

16,03 € IVA inclusa

favoriteLista dei desideri

Descrizione

Rack 10" fiber optic patch panel

The offered product is a patch panel designed for installation in a 10" Rack cabinet. It has a height of 1U and a depth of 166 mm. It is made of 1 mm thick steel sheet and painted in light gray RAL7035.

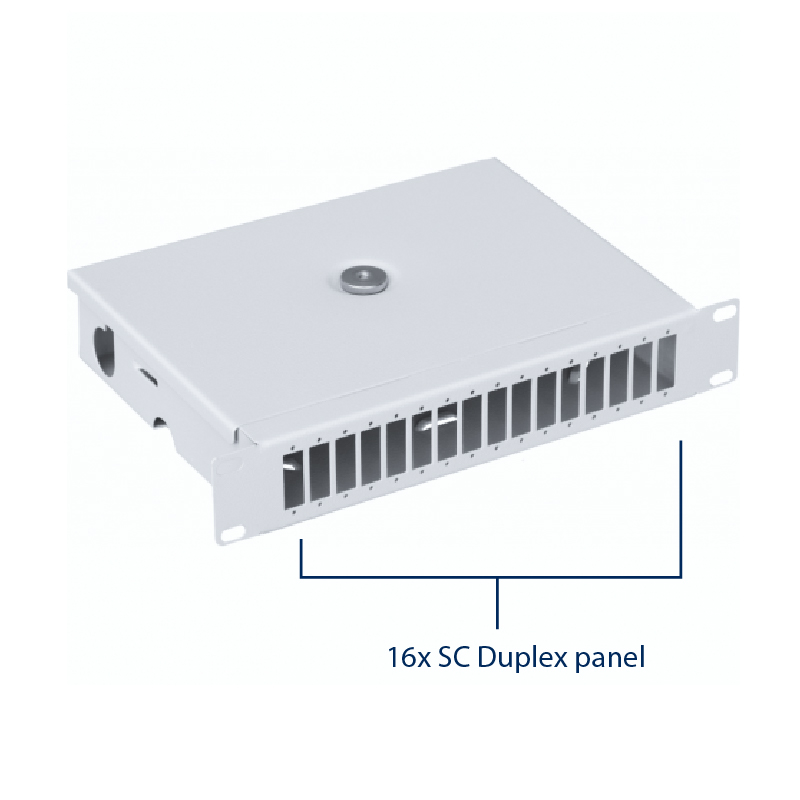

16x SC Duplex panel

The front panel is designed to accommodate 16 SC Duplex or LC Quad adapters. Inside the patch panel, there is space for mounting a splice tray and appropriate indentations to secure excess cable with zip ties. The trays used should have a hole for a screw. There are openings on the sides for cable entry and exit.

Fixed Patch Panel

The product does not have rails and is designed to be permanently fixed in a Rack cabinet. During operation, the patch panel must be completely unscrewed and removed from the cabinet, as there is no possibility of sliding out the tray.

Specifications

Mantar PS 10" 1U 16xDX st
Standard	Rack 10"
Front panel	16 slots for SC Duplex / LC Quad adapters
Height	1U
Width	10"
Depth	166 mm
Weight	1 kg
Plate thickness	1 mm
Colour	RAL7035 light gray
