ZTE C600 OLT terminal without PON board 2x SFUL control board (10G) 2x PRVR (DC)

ZTE C600 OLT terminal without PON board 2x SFUL control board (10G) 2x PRVR (DC)

Produttore: ZTE

Codice prodotto: ZTE-C600-2SFUL-2DC

Numero di catalogo: 10314

Garanzia (mesi):

Prezzo

2 000,42 €

2 460,52 € IVA inclusa

favoriteLista dei desideri

Descrizione

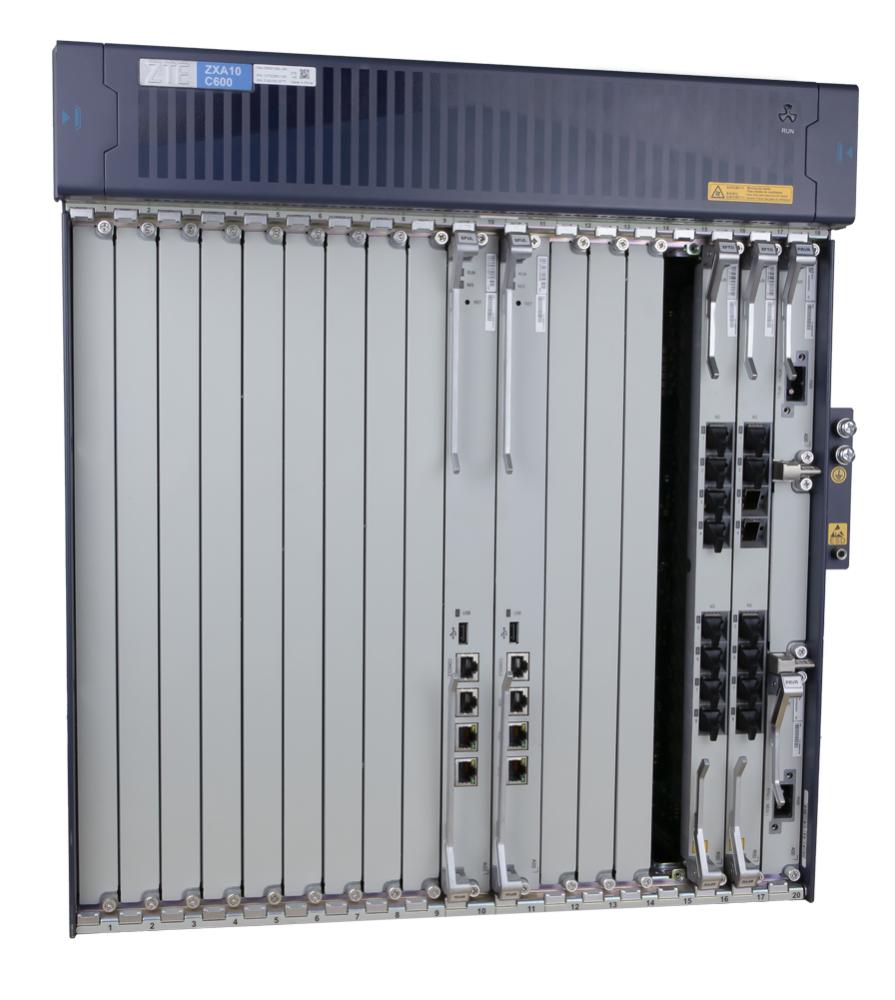

The ZTE C600 is an OLT terminal designed for PON networks. It features a 19" rack-mountable chassis with space for up to 15 GPON or EPON line cards. This model comes with two SFUL control boards, each equipped with 8 SFP+ slots (1/10 Gb/s) for uplink, as well as ports for management and monitoring. The total backplane throughput of the terminal is 14 Tb/s, while the switching capacity of each control board is 3.6 Tb/s. The package includes two DC PRVR power supply boards, which support redundant operation. In case of failure, the second power supply takes over. The input voltage options are -48 V or -60 V DC.

Specifications

Hardware Features
ZTE C600
Shelf configuration	2x SFUL (control board) 2x DC power supply (PVRV) 1x FAN board 15 slots for universal line cards
System capability	Switching capacity of backplane bus: 14 Tbit/s Switching and control card: 3.6 Tbit/s System switching capacity: 7.2 Tbit/s
Uplink interface card	8x SFP+ slot (1 / 10 Gb/s) per control board
Compatible service boards	GPON XG-PON XGS-PON XG-PON&GPON Combo XGS-PON&GPON Combo Any-PON 10G-EPON 10GE P2P GE/FE P2P
L2 / L3 Features
L2 Features	Access control: MAC filtering, ACL L2-port: physical Ethernet ports, logical Vportsand aggregation ports, support L2 services and TPID configuration VLAN: 1:1 VLAN, N:1 VLAN, flexible QinQ, VLAN bridge, TLS VLAN, M-VLAN, VLAN reuse 512K MAC address, MAC address management, permanent MAC, MAC address aging/learning/query/number limit Uplink protocol: STP/RSTP/MSTP, LACP
L3 Features	Basic routing: unicast routing forwarding, static route, IP based load balance, ECMP Dynamic routing: RIPv1/v2, OSPFv2, BGP4, IS-IS v2, Graceful Restart, MD5, etc. DHCPv4: DHCP relay/proxy/snooping, Option 82, Option 60 L3 interfaces: VLAN L3 routing, Loopback ARP: ARP protocol, ARP Proxy IPv6 basic features and ND Support BFD for IPv4/IPv6 routing protocol including static/OSPF/ISIS/BGP.
QoS
Features	Queue & scheduling mechanism: SP, WRR/DWRR, and SP+WRR DSCP labeling and relabeling Traffic statistics H-QoS Stream classification, rate limiting, shaping and priority setting Congestion Avoidance: tail drop, colorbased RED, WRED Configuration of CIR/PIR/CBS/PBS/CM, TrTCM(Two Rate Three Color Marker
MPLS
MPLS basic function	Label distribution using LDP Label distribution mode configuration – DU/DoD Label retention mode – Liberal/Conservative Label control mode – Independent/ Ordered LDP Extension for Inter - Area LSP Explicit null configuration (PHP control) Graceful Restart MD5 encryption on LDP session
L2VPN	Ethernet VPL / VPWS
MPLS OAM	Yes
PWE3 basic function	Dynamic PW PW type configuration negotiation – ETH VCCV configuration negotiation Control word enable negotiation PW ingress MPLS TC to AC VLAN CoS mapping PW egress AC VLAN CoS to MPLS TC mapping PSN VLAN on network side inherits CoS from MPLS label and AC VLAN
1:1 PW redundant protection	Yes
Security
Network security	Broadcast/multicast flooding rate limitation Downstream ARP filtering Forwarding panel protocol packet rate limit DHCP anti-spoofing Anti-DoS attacking ARP/IP anti-spoofing IP Source Guard Basic ACL and IPv6 ACL
Service security	DHCP service security MAC address anti-drifting Port isolation: Uplink port/User port Broadcast packets separation based on VLAN
System security	L4 port disable CPU protocol packet rate limit and scheduling
OAM
Features	Management protocol and interface: CLI, Telnet/SSHv2, SNMP v1/v2/v3, IGMP/MLD proxy/snooping model, alarm and performance model Performance statistic and diagnosis Remote firmware download and upgrade Environment detecting, control and alarm Ethernet OAM: 802.1ag System fault auto-recovery and performance detection
Multicast
Features	IGMP snooping, proxy, router (v1/v2/v3) MLD v1/v2 MVLAN: 4K Multicast VLAN Multicast snooping/proxy, router modes Enabling and disabling protocols globally or based on VLAN ASM/SSM mode based on IGMPv3 and MLDv2 Less than 20 ms channel zapping delay SCB multicast forwarding and L3 multicast forwarding. PIM-SM, PIM-SSM
VxLAN
Basic VxLAN functions	RFC7348 Learning/aging MAC and VTEP IP Multiple AC type: port(PON port, vport), S-Vlan, SVlan+C-Vlan. Support IPv6 VTEP port associated IGMP ARP suppression
Configuration functions	VLAN configuration Status reporting Information Query Static MAC Configuration ARP suppression Configuration
Environment
Operating temperature	-40 ? ~ 65 ? for overall unit
Starting up temperature	≥ -25?
Operating humidity	5% ~ 95%, non-condensing
Altitude	≤ 4000 m
Air pressure	70 kPa~106 kPa
Power Supply
Working voltage	-48 V DC or -60 V DC
Dimensions
Dimensions	486.1 mm (H) * 482.6 mm(19’’) (W) * 288.5 mm (D)
Weight	Empty shelf: 18 kg Full configuration: < 52 kg
