Huawei 52344444 Indoor Invisible Optical Cable (Pre-adhesive) 1.6 x 1.2 mm, 1 fiber G.657.A2, 50 m
Produttore: Huawei
Codice prodotto: HUA-52344444
Numero di catalogo: 10410
Garanzia (mesi):
Prezzo
240,90
296,31IVA inclusa
Quantità
-
+
favoriteLista dei desideri
Descrizione

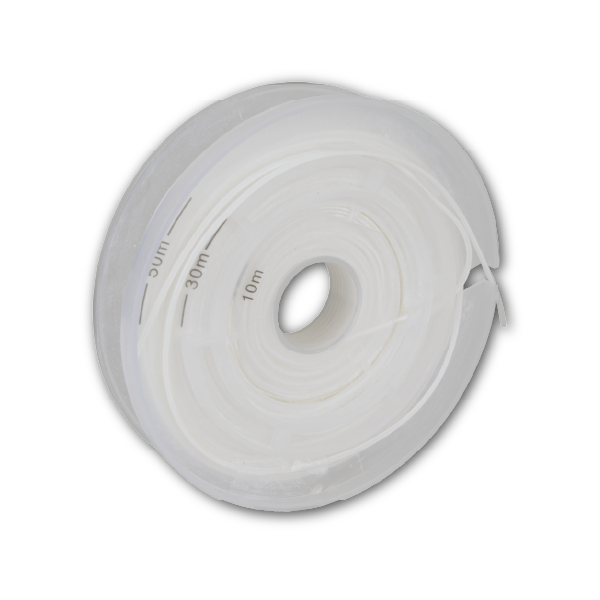

The offered product is a transparent fiber optic cable wound on a small spool with a length of 50 meters. It is designed for indoor installation and features one G.657.A2 type fiber. The external dimensions are 1.6 x 1.2 mm. The cable is coated with adhesive, so if you have the appropriate tool, you can simultaneously guide the cable and stick it to the surface (the tool can be found in the related products section below the specification). Once properly installed in the corner of a room, the cable becomes invisible. This allows it to be routed without the need to chisel walls or hide it in baseboards. The cable’s construction is reinforced with four stiffening fibers, and the G.657.A2 fiber provides the necessary flexibility, which is crucial when routing the cable through corners.

Indoor fiber optic cable designed for adhesive installation

This cable is intended for indoor use and comes with an adhesive-coated sheath. By using a compatible application tool (listed below the specification), you can attach it to various types of surfaces. It is suitable for latex-painted walls, wooden surfaces, wallpaper, or gaps between marble tiles. However, the cable should not be used on concrete, stone, flammable surfaces, or those where the adhesive does not stick well, such as glass or aluminum.

With the appropriate tool, you can simultaneously unwind and adhere the product to a surface. This cable is ideal for spaces where in-wall installation is not feasible. Once applied, the cable becomes virtually invisible, which is a significant advantage for many users.

1 Singlemode G.657.A2 Fiber

The cable is equipped with one Singlemode G.657.A2 fiber. It offers excellent flexibility, so you don’t have to worry about damage during installation around corners. The structure is reinforced with four strength members placed on the sides. The maximum tensile strength is 100 N for short-term use and 40 N for long-term use. The cable’s external dimensions are just 1.2 x 1.6 mm, and the sheath is transparent. All components are designed to ensure the product remains discreet once installed.

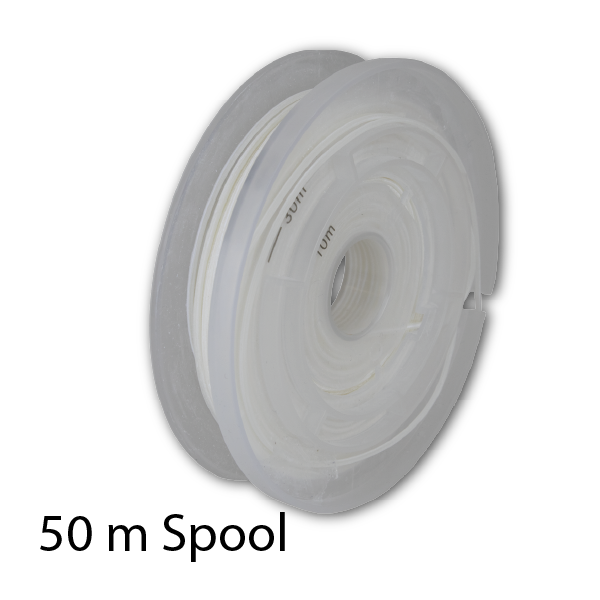

50 m Spool

The spool contains 50 meters of cable. It can be mounted onto the installation tool, allowing the cable to unroll automatically during the adhesive application. The spool itself is compact and lightweight, making it much more convenient than typical fiber optic cables and saving space during storage and use.

Specifications

Huawei 52344444
Outer diameter 250 ± 15 μm
Color Transparent
Strength member material Fiber
Outer sheath material PA
Outer sheath color Transparent
Cable cross-sectional dimension 1.2 mm x 1.6 mm
Cable length 50 m
Cable weight Approx. 2.6 kg/km
Fiber type

G.657.A2

Fiber quantity 1
Transportation, installation, operating and storage temperature –10ºC to +60ºC
Tensile performance (short-term / long-term) 100 / 40 N
Crush (short-term) 500 N/100mm
Min. bending radius (static / dynamic) 16 / 32 mm
