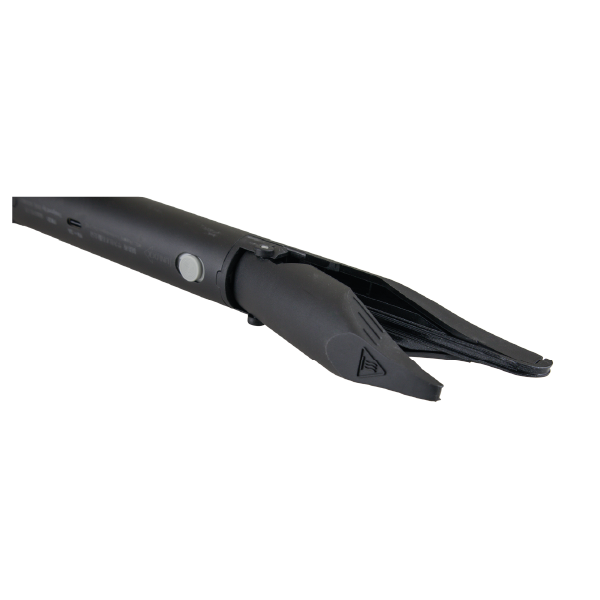

The Huawei FIK01 is an installation kit designed for adhesive-coated, transparent fiber optic cables with dimensions of 1.2 x 1.6 mm. The tool enables simultaneous cable guiding and adhesive application. The head of the tool heats the adhesive coating on the fiber, allowing it to bond to the mounting surface. During operation, the cable is automatically unwound from the spool, which must be mounted onto the tool. The kit includes two batteries, each capable of installing approximately 100 meters of cable on a full charge. Also included is a foldable handle, approximately 111 cm in length, which facilitates work near ceilings or in hard-to-reach areas.

Tool for Installing Transparent Cables
The offered product is a kit designed for use with cables measuring 1.2 x 1.6 mm, featuring a transparent, adhesive-coated sheath. The FIK01 allows for simultaneous unwinding of the cable from the spool and heating of the adhesive, thereby enabling the cable to be affixed during installation. The entire process is very straightforward and can be carried out by any installer. Once properly installed, the cable is nearly invisible—especially when mounted along the wall-ceiling junction or the wall-baseboard edge.
Battery Powered

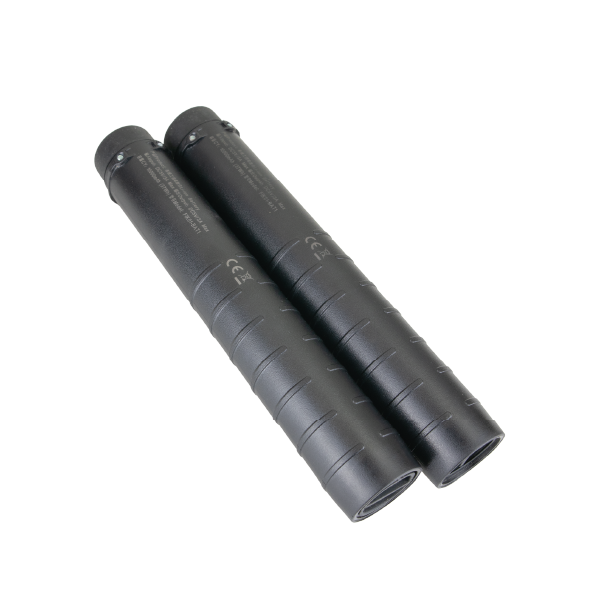

The device is designed for battery operation and comes with two batteries that screw directly onto the tool. The FIK01 also features a standard USB-C port, allowing you to connect a regular power bank if needed. A standard battery provides enough power to install approximately 100 meters of cable, which is more than sufficient for connecting a subscriber. The tool, with the battery attached, weighs less than 500 grams, making it compact and practical, with no power cable restricting your movement.

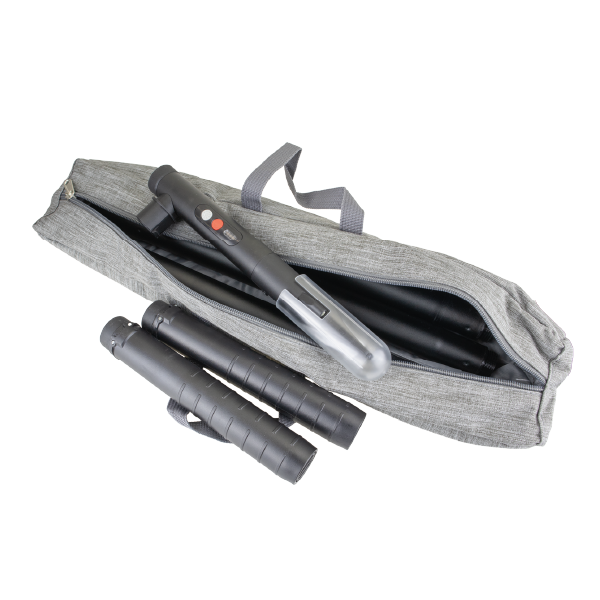

Additional Handle and Carrying Case
The kit includes an additional three-section handle with a total length of approximately 111 cm. It's especially useful for installing cable near the ceiling, allowing you to work without the need for a ladder. Also included is a carrying case that makes storing and transporting the FIK01 easier.
Tool Packaging
The kit contents:
- FIK body
- 2 batteries
- 3 extensions rods
- adhesive scrapper
- canvas handbag

Specifications
Huawei FIK01 | |
FIK Body Specifications | |
---|---|
Dimensions (D x L) | Φ30 x 260 mm |
Weight | 140 g |
Supported optical cable specifications | 1.2 mm x 1.6 mm transparent optical cable |
Cabling speed | Max.1.3 m/min |
Input |
Battery power supply: up to 5 V/3 A External power bank: 5 V/2–3 A |
Rated operating temperature | 155° |
Application environment | Indoor |
Materials |
Shell: PC+ABS, PA66+13GF Heating head: aluminum alloy |
Shell color |
Metal: black Plastic: black |
Battery Compartment Specifications | |
Dimensions (D x L) | Φ34 x 207 mm |
Weight | 250 g |
Electrochemical cell specifications | 21700 |
Shell color | Black |
Charging specifications | DC 5 V / 3,3 A, maximum 15 W |
Discharge specifications | DC 5 V / 3 A |
Battery capacity |
Standby time: about 3.5 hours Cabling distance: maximum 100 m |
Working temperature range | 0°C to +40°C |
Service life | Charge and discharge cycles: 300 |
Environment Specifications | |
Working temperature range | 0°C to +40°C |
Storage temperature range | –20°C to +45°C |
Atmospheric pressure | 86 - 106 kPa |
Altitude | 0 - 2000 m |
