Ubiquiti Device Bridge Pro Sector is an integrated broadcast station designed to operate in the 5 GHz band under the control of the UniFi system. It allows you to connect up to 50 Device Pro Bridge units as clients, significantly expanding your UniFi network. The UDB-Pro-Sector features a built-in sector antenna with a 90° beamwidth, and the maximum connection range is 5 km. The device uses Wi-Fi 5, with a maximum throughput of 400 Mbps. The housing is fully adapted for outdoor use, with an IPX6 protection rating. Using the accessories included in the set, you can mount the UDB-Pro-Sector on a pole. The device has one gigabit Ethernet port and supports PoE power (802.3af), with a maximum power consumption of only 6 W.

Device Bridge Pro Base Station (Wi-Fi 5)
The offered product is a base station (access point) designed to operate under the control of the UniFi system. It operates in the 5 GHz band, and Device Bridge Pro units should be used as client devices. The UDB-Pro-Sector uses Wi-Fi 5 and the AC protocol, with a maximum connection throughput of approximately 400 Mbps. You can connect up to 50 client devices to the base station.
90° 17 dBi Antenna, 5 km Range
Inside the enclosure is an integrated sector antenna with a gain of 17 dBi and a main beamwidth of 90°. The maximum connection range with the Device Bridge Pro is 5 km. With the UDB-Pro-Sector, you can extend your UniFi network over long distances.


Outdoor Use, Pole Mounting

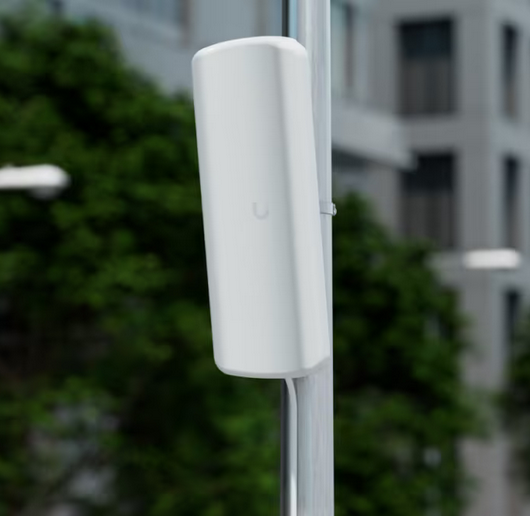

The enclosure is fully designed for outdoor use. It features an IPX6 protection rating and is made from UV-resistant materials. With the accessories included in the package, you can mount the UDB-Pro-Sector on a pole. The mounting bracket allows for angle adjustment in both the vertical and horizontal planes.
1G Ethernet Port, PoE Power Supply
The device is equipped with one gigabit Ethernet port (10/100/1000 Mbps), which also serves as the PoE power input (802.3af). The UDB-Pro-Sector has a maximum power consumption of only 6 W, and the base station can be connected directly to a PoE access switch in your UniFi network.


Use Case
The offered product is ideal for large-scale UniFi networks where there is a need to connect remote locations. Using a base station is a more cost-effective solution than creating multiple point-to-point wireless links. The UDB-Pro-Sector allows you to easily connect cameras or additional access points located beyond the reach of Ethernet cabling.
Specifications
Ubiquiti UDB-Pro-Sector | |
Overview | |
---|---|
Dimensions |
360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
Wi-Fi Standards | Wi-Fi 5 |
Spatial Streams | 2 |
Coverage Area | 5 km (3.1 mi) |
Mounting Locations | Pole |
Weatherproofing | IPX6 |
Power Method | PoE (802.3af) |
Performance | |
MIMO | 5 GHz: 2x2 |
Max. Data Rate | 5 GHz: 400 Mb/s (BW40) |
Antenna Gain | 5 GHz: 17 dBi |
Max. TX Power | 5 GHz: 25 dBm |
Supported Data Rates |
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mb/s 802.11n 6.5 - 300 Mb/s (MCS0 - MCS15, HT 20/40) 802.11ac (Wi-Fi 5) 6.5 - 400 Mb/s (MCS0 - MCS9 NSS1/2, VHT 20/40) |
Wireless Security | WPA2 AES |
Hardware | |
Max. Power Consumption | 6 W |
Supported Voltage Range | 42.5 - 57 V DC |
Networking Interface | 1 port 1G Ethernet |
Antennas | Internal |
Management |
Ethernet Wi-Fi |
Channel Bandwidth | 20 / 40 MHz |
Wind Loading | 128.2N at 200 km/h |
Weight |
Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
Enclosure Material | UV-stabilized polycarbonate |
Mount Material | UV-stabilized polycarbonate, stainless steel |
Pole Mount Diameter | 24 - 60 mm (0.9—2.4") |
Button | (1) Factory-reset |
LEDs | System: Power, Ethernet |
NDAA Compliant | Yes |
Operating Frequency | 5150 - 5875 MHz |
Ambient Operating Temperature | -40°C to 60°C |
Ambient Operating Humidity | 5 to 95% noncondensing |
