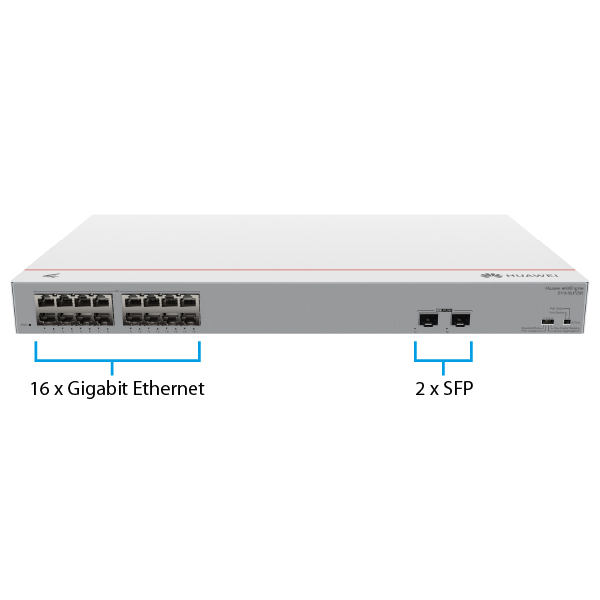

16x gigabit Ethernet, 2x SFP

The switch is equipped with 16 gigabit Ethernet ports (10/100/1000 Mbps) and 2 SFP slots. The switching capacity is 36 Gbps, and the packet forwarding rate is 26.78 Mpps. With one of the SFP slots, you can establish a connection over very long distances using a fiber optic cable.

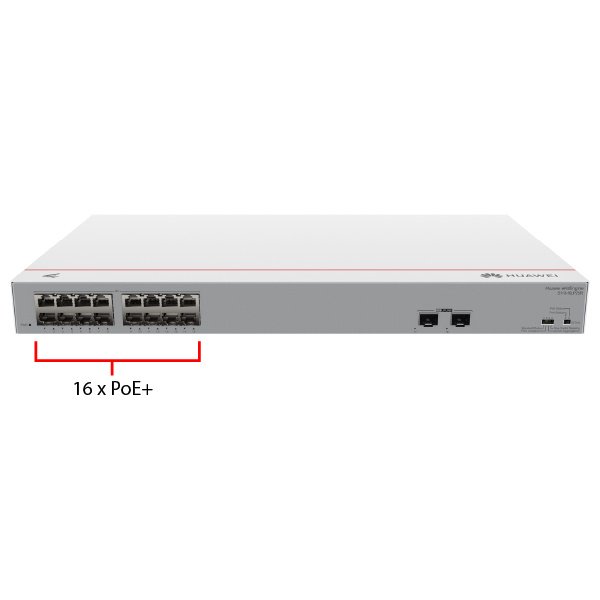

16 PoE+ outputs

All Ethernet ports feature PoE+ power output. The maximum output power per port, according to standards, is 15.4 W for 802.3af or 30 W for 802.3at. The total power budget for the entire device is 124 W. This power is sufficient to connect 8-10 basic access points with relatively low power consumption.

Using PoE allows for power and data transmission through an Ethernet cable. With this type of switch, you only need to run one cable to each access point, eliminating the need for additional power adapters.

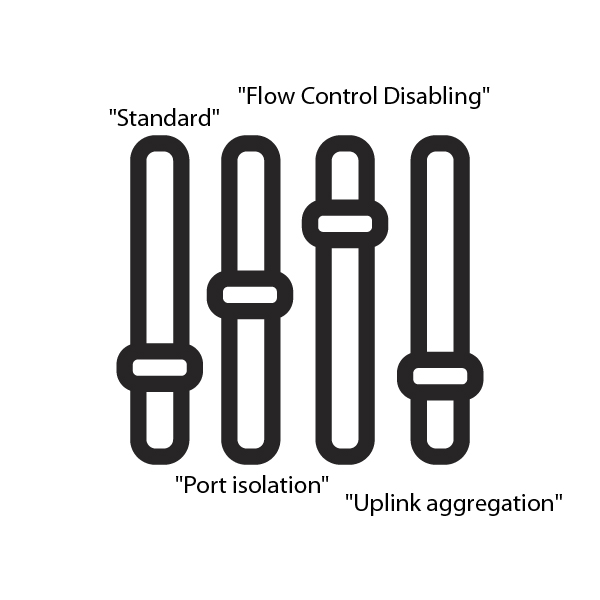

Four operating modes

The Huawei S110-16LP2SR is an unmanaged switch, but it can operate in four different modes. The modes are switched using a physical switch located on the front of the device, next to the ports. In "Standard" mode, the device operates as a regular switch. "Port isolation" mode allows you to isolate the ports from each other. "Flow Control Disabling" mode enables the disabling of flow control, and "Uplink aggregation" mode allows for the aggregation of uplink ports.

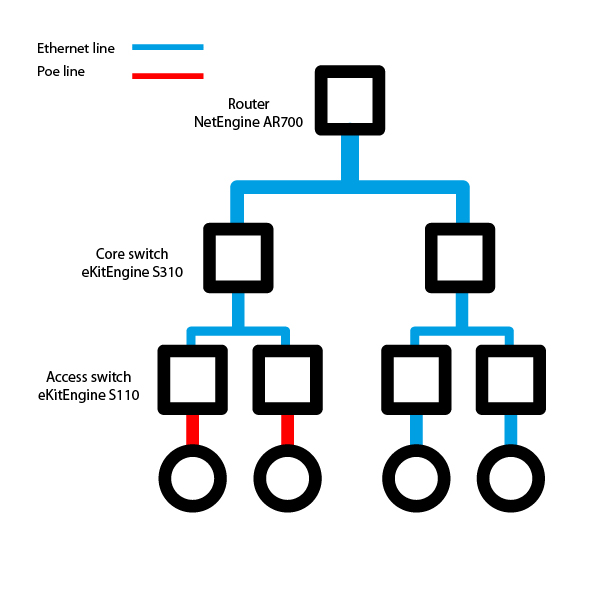

Usage

Oferowany produkt najlepiej sprawdzi si? jako switch dost?powy w ró?nego rodzaju sieciach. Wyró?nia si? dobrym stosunkiem ceny do jako?ci, mo?esz go wykorzysta? z punktami dost?powymi z ró?nych serii i ró?nych producentów, nie tylko eKitEngine. W lokalizacjach, w których znajduje si? ma?o AP i nie ma potrzeby zarz?dzania S110-16LP2SR mo?e pe?ni? równie? funkcj? jedynego switcha.
