The Huawei S380-L4T1T is a gateway from the eKitEngine series. It combines the functions of a router and a managed Layer 3 switch and is equipped with 5 gigabit Ethernet ports, including 1 WAN port and 4 LAN ports. The maximum switching capacity is 8 Gbps, and the egress throughput is 2 Gbps. The S380-L4T1T can support up to 200 users and supports DHCP server/client, DNS client, PPPoE client, ACL, and NAT. Management can be performed via a graphical web interface, an application, or SSH. It features a desktop-type casing and passive cooling. The gateway has a DC socket and is designed for an external 12V / 1A power supply, with a maximum power consumption of only 6.11W. The S380-L4T1T is a basic gateway intended for use in networks based on eKitEngine solutions. It provides high performance while maintaining an attractive price and low power consumption.

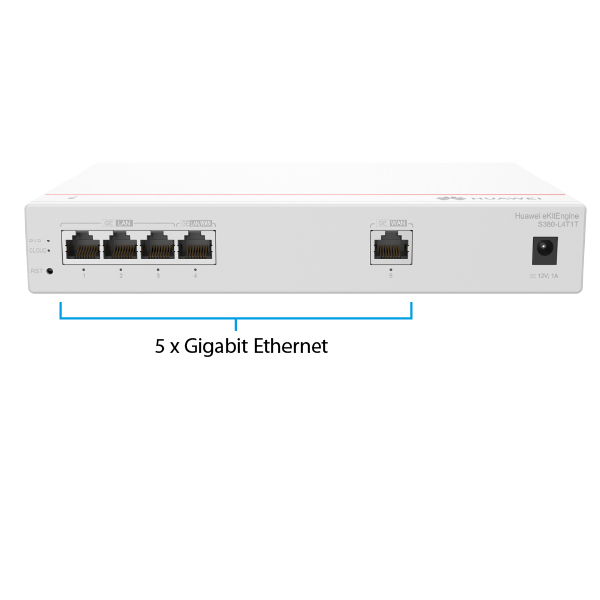

10x gigabit Ethernet

The device is equipped with 5 gigabit Ethernet ports (10/100/1000 Mbps), including 1 WAN port and 4 LAN ports. The switching capacity is 8 Gbps, with a packet forwarding rate of 300 Kp/s for sending and 420 Kp/s for receiving.

Built-in controller

The S380-L4T1T can serve as a Wireless Access Controller (WAC) for access points from the eKitEngine series. You can connect up to 32 APs and up to 200 users simultaneously to the device. This product is ideal for offices and even large homes where you plan to connect multiple access points.

Router functionality

The offered product also functions as a router, supporting NAT and DHCP server. Management can be performed through a graphical web interface, an application, or via SSH. The software allows you to monitor the network status and diagnose any issues that may occur during its operation.

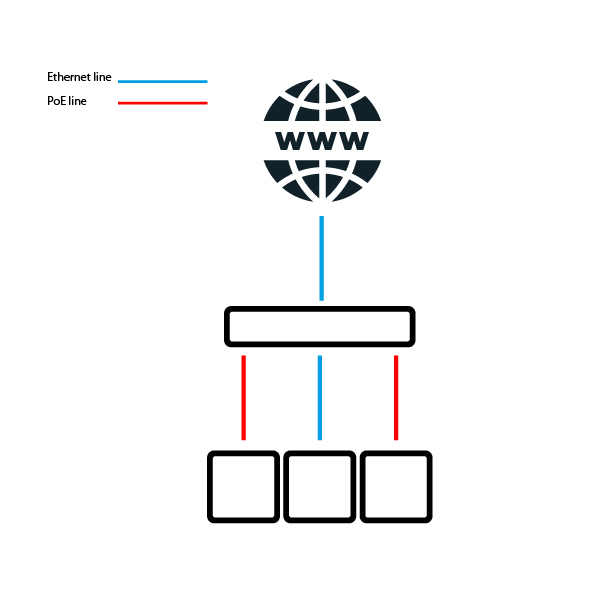

3 in 1

The Huawei S380-L4T1T combines the functionality of a switch, router, and access point controller. It is ideal for office networks where up to 200 client devices will be used. By connecting a PoE access switch to the S380-L4T1T, you eliminate the need for an additional controller and router. This configuration helps reduce costs and simplifies subsequent network management.

Specifications
