Huawei OptiXstar EG8040H6 GPON ONT terminal 4x GE

Huawei OptiXstar EG8040H6 GPON ONT terminal 4x GE

Produttore: Huawei

Codice prodotto: HUAWEI-EG8040H6

Numero di catalogo: 10110

Garanzia (mesi):

Official distribution, 24 months warranty.

Prezzo

31,18 €

38,35 € IVA inclusa

favoriteLista dei desideri

Descrizione

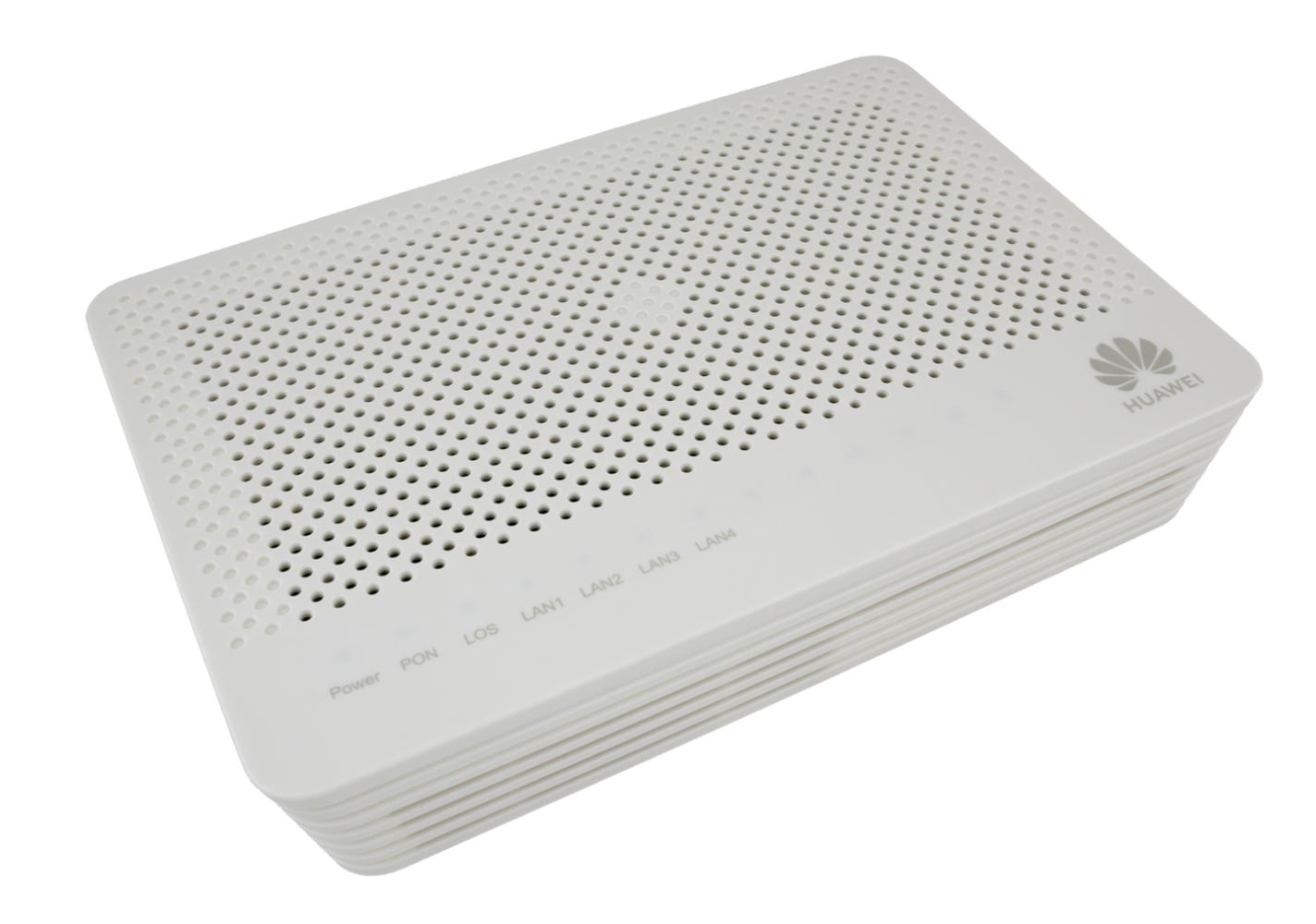

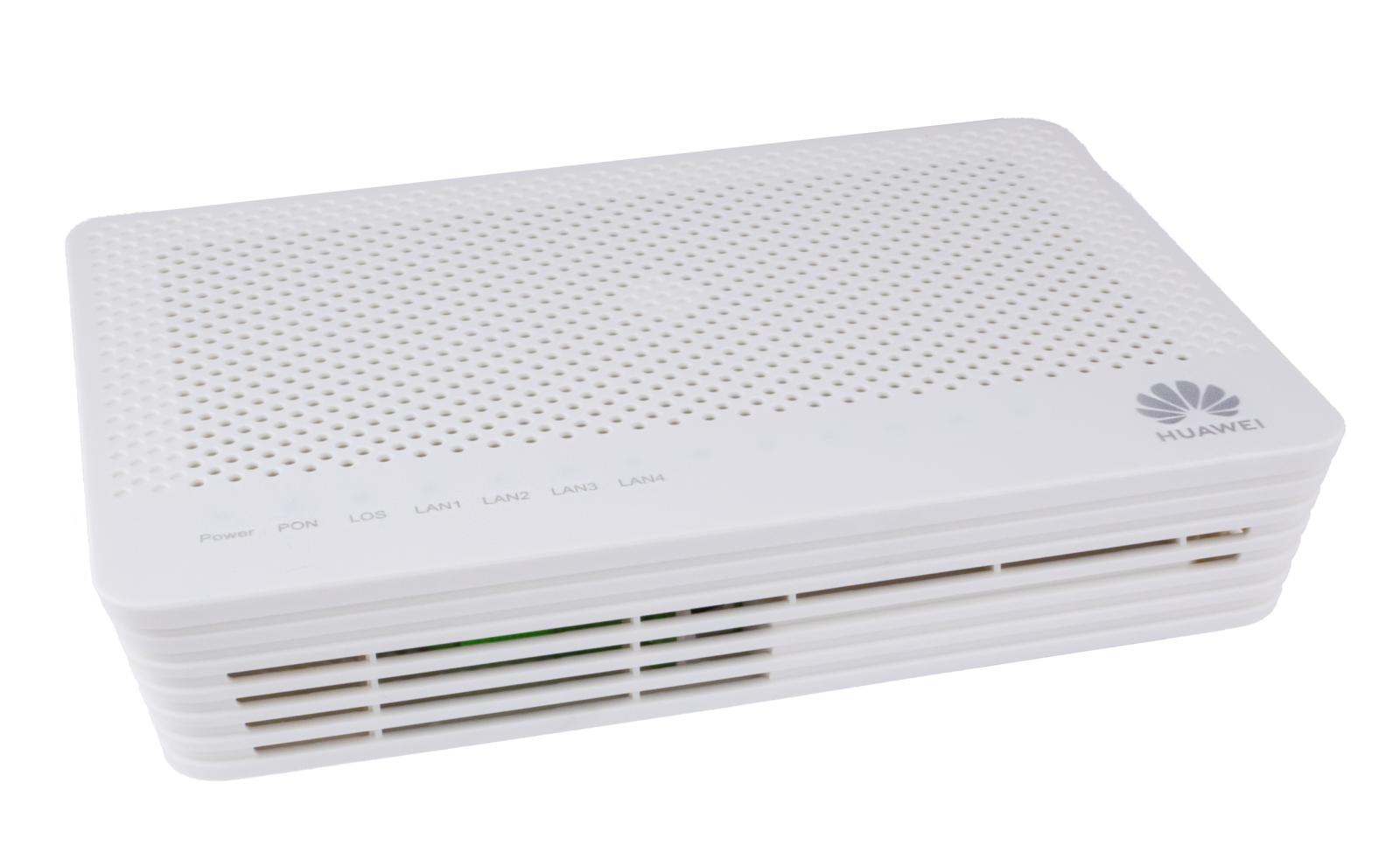

Huawei EG8040H6 is a client ONT terminal designed for use in GPON networks. It is a basic bridge-type device without NAT and features 4 gigabit Ethernet ports. The manufacturer has implemented an SC/APC optical connector with a B+ class laser, and the reception sensitivity is -27 dBm. The maximum supported transmission bandwidth, in line with the GPON standard, is 2.5 Gb/s for downloading data and 1.25 Gb/s for uploading. The EG8040H6 is an excellent solution for locations where access to more than one Ethernet port is required.

GPON ONT Terminal

The offered product is designed to work as a client ONT/ONU terminal in GPON networks. It is equipped with an SC/APC optical port with a B+ class laser, and the reception sensitivity is -27 dBm.

In line with the GPON standard, the transmission bandwidth is 2.5 Gb/s for downloading data and 1.25 Gb/s for uploading.

4x 1G Ethernet ports, bridge mode

The device is equipped with 4 gigabit Ethernet ports (10/100/1000 Mb/s) and is designed to operate as a typical bridge, without router functionality. The terminal includes all the essential software features, such as support for VLAN, multicast (IGMP and MLD Snooping), and QoS.

Usage

Huawei EG8040H6 is a versatile device with a wide range of applications. It is ideal for any subscriber who needs more than one LAN port, which is particularly important when connecting business clients. The EG8040H6 is also an excellent solution for large and complex corporate, campus, or hotel networks, where the GPON network serves as the local network.

Specifications

Device Parameters
Huawei EG8040H6
Dimensions (H x W x D) (without pads)	30 mm x 168 mm x 115 mm
Weight	About 220 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100 - 240 V AC, 50/60 Hz
System power supply	12 V DC, 1 A
Static power consumption	2, 8 W
Maximum power consumption	4,7 W
Memory	128 MB Flash 128 MB RAM
Indicators	Power / PON / LOS / LAN
NNI	GPON
UNI	4x GE
Optical Connector	SC/APC
Interface Parameters
GPON port	Class B+ Receiver sensitivity: -27dBm Overload optical power: -8 dBm Wavelengths: 1310nm upstream, 1490nm downstream Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing & dual-homing)
Ethernet port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Product Function
Smart interconnection	Any port any service Parental control
Multicast	IGMP v2/v3 proxy/snooping MLD v1/v2 snooping
Smart O&M	IPTV video quality diagnosis eMDI Rogue ONT detection and isolation from the OLT PPPoE/DHCP simulation testing
O&M	OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback
Security	SPI firewall Filtering based on MAC/IP/URL addresses Port-Level Hard-Isolated
QoS	Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation
