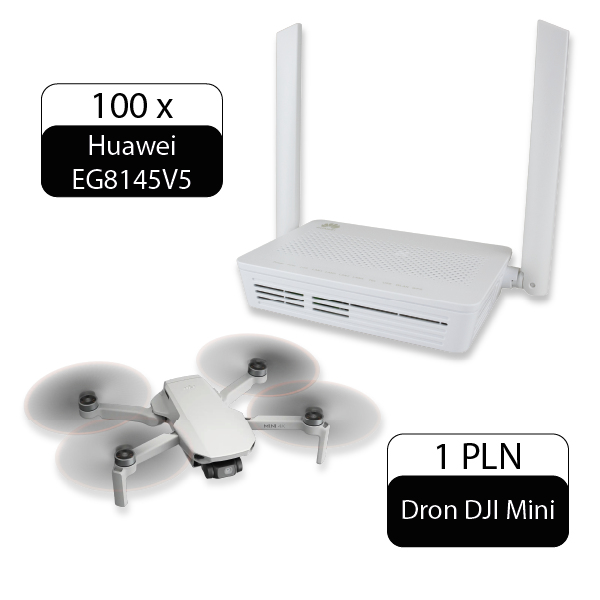

100 units of Huawei EG8145V5 (GPON ONT Wi-Fi 5 AC1200) with DJI Mini 4K drone for 0,25 EUR

100 units of Huawei EG8145V5 (GPON ONT Wi-Fi 5 AC1200) with DJI Mini 4K drone for 0,25 EUR

Produttore: Huawei

Codice prodotto: HUA-EG8145V5-PROMO4

Numero di catalogo: 10370

Garanzia (mesi):

Offerta speciale

Il prezzo più basso degli ultimi 30 giorni: 4 680,00 € netto

favoriteLista dei desideri

Descrizione

Promotional Set
By purchasing the set below, you pay for 100 units of the EG8145V5 client terminals and receive the DJI Mini 4K dron for only 0.25 EUR net!

Overview

The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.

Admin access login credentials: Epadmin / adminEp

Smart interconnection

Smart Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port any service
Parental control
L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

Scheduled Wi-Fi shutdown
Smart Wi-Fi sharing:Portal/802.1x authentication SoftGRE-based sharing

Smart O&M

IPTV video quality diagnosis
eMDI
Rogue ONT detection and isolation from the OLT
Call emulation, and circuit test and loop-line test
PPPoE/DHCP simulation testing
WLAN emulation

Layer 3 Features

PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI
Static/Default routes
Multiple services on one WAN port

Multicast

IGMP v2/v3 proxy/snooping
MLD v1/v2 snooping

QoS

Ethernet port ratelimitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation

Security

SPI firewall
Filtering based onMAC/IP/URL addresses

Common O&M

OMCI/Web UI/TR069
Variable-length OMCI messages
Dual-system softwarebackup and rollback

Power Saving

Indicator power saving
COC V5

Specifications

DEVICE PARAMETERS
EG8145V5
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50 / 60 Hz
System power supply	11–14 V DC, 1.5 A
Static power consumption	5.3 W
Max. power consumption	18 W
NNI	GPON
UNI	1POTS+4GE+2.4G/5G Wi-Fi+1USB
Optical connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Installation mode	On the desk, or on the wall
Compliance certification	CE/WiFi
INTERFACE PARAMETERS
GPON Port	• Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or passwordauthentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA •Type B (single-homing&dual-homing)
Ethernet Port	•Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparenttransmission • QinQVLAN• Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/
POTS Port	•Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port	•USB2.0 •FTP-based network storage •File/Print sharing based on SAMBA •DLNA function
WLAN	•IEEE 802.11 b/g/n (2.4G) •IEEE 802.11 a/n/ac (5G) •2 ×2 MIMO (2.4G&5G) •Antenna gain: 5 dBi •WMM/Multiple SSIDs/WPS •2.4G&5G concurrent •Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)
