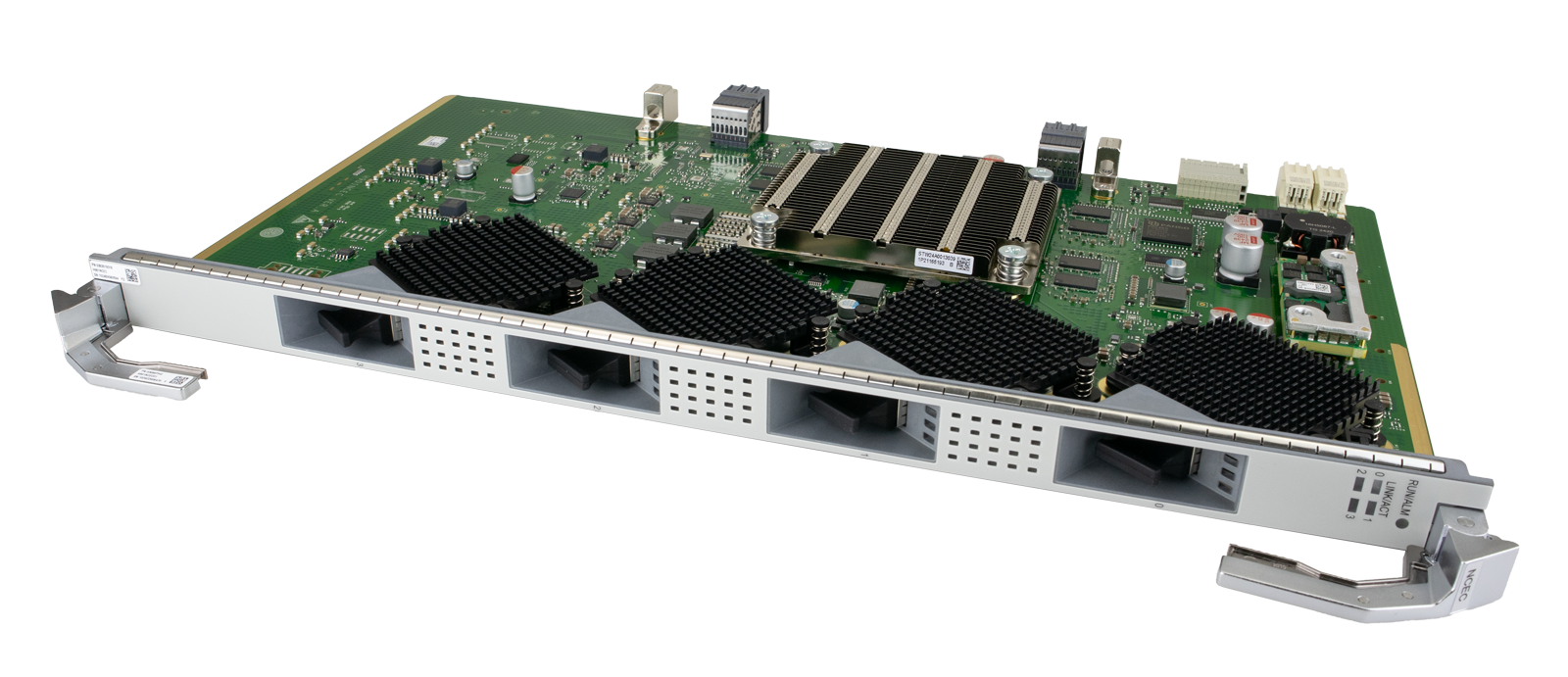

Huawei H901NCEC 4-port Enhanced QSFP28 (100 Gb/s) for MA5800 OLT terminals
Prezzo
2 104,47 €
2 588,50 € IVA inclusa
favoriteLista dei desideri
Upstream board 4x QSFP28
Huawei NCEC is an uplink interface board designed for Huawei OLT terminals from the MA5800 series. It features 4 QSFP28 slots, each providing a bandwidth of 100 Gb/s, with a total board capacity of 400 Gb/s. The NCEC is ideal for OLTs utilizing XG-PON / XGS-PON technology, allowing you to offer high-speed packages to subscribers.
Specifications
| Huawei H901NCEC | |
| Port quantity | 4 |
| Port type | QSFP28 |
| Forwarding capability [Gbit/s] | 400 Gb/s |
| Maximum number of MAC addresses | 262143 |
| Sync ETH clock | Yes |
| 1588ACR | Yes |
| 1588v2 Synchronization | Yes |
| Protection group | Yes |
| Link aggregation | Yes |
| Upstream transmission | Yes |
| Clock synchronization | Yes |
| Automatic shutdown at high temperature | Yes |
| Temperature query and high-temperature alarm | Yes |
| LED indicators | |
|---|---|
| Running status indicator (RUN/ALM) |
Red Blinking: The board enters the APP start phase during the board startup Green Blinking slowly (on for 1 s and off for 1 s repeatedly): The board works in the normal state Orange Blinking: A high-temperature alarm is generated Red On: The board is faulty |
| Optical link status indicator (LINK/ACT0-3) | Green On: The link is normal Green Blinking: Data is being transmitted Off: The port is not connected |
| Physical features | |
| Dimensions without packaging (H x W x D) [mm] | 399.20 mm x 23.30 mm x 257.90 mm |
| Weight without packaging [kg] | 1.20 kg |
| Static power consumption [W] | 44 W |
| Maximum power consumption [W] | 75 W |
| Operating temperature [°C] | -40°C to +55°C |
| Maximum Frame Size of Boards (Default) [bytes] | 2052 bytes |
| Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | 9216 bytes |
